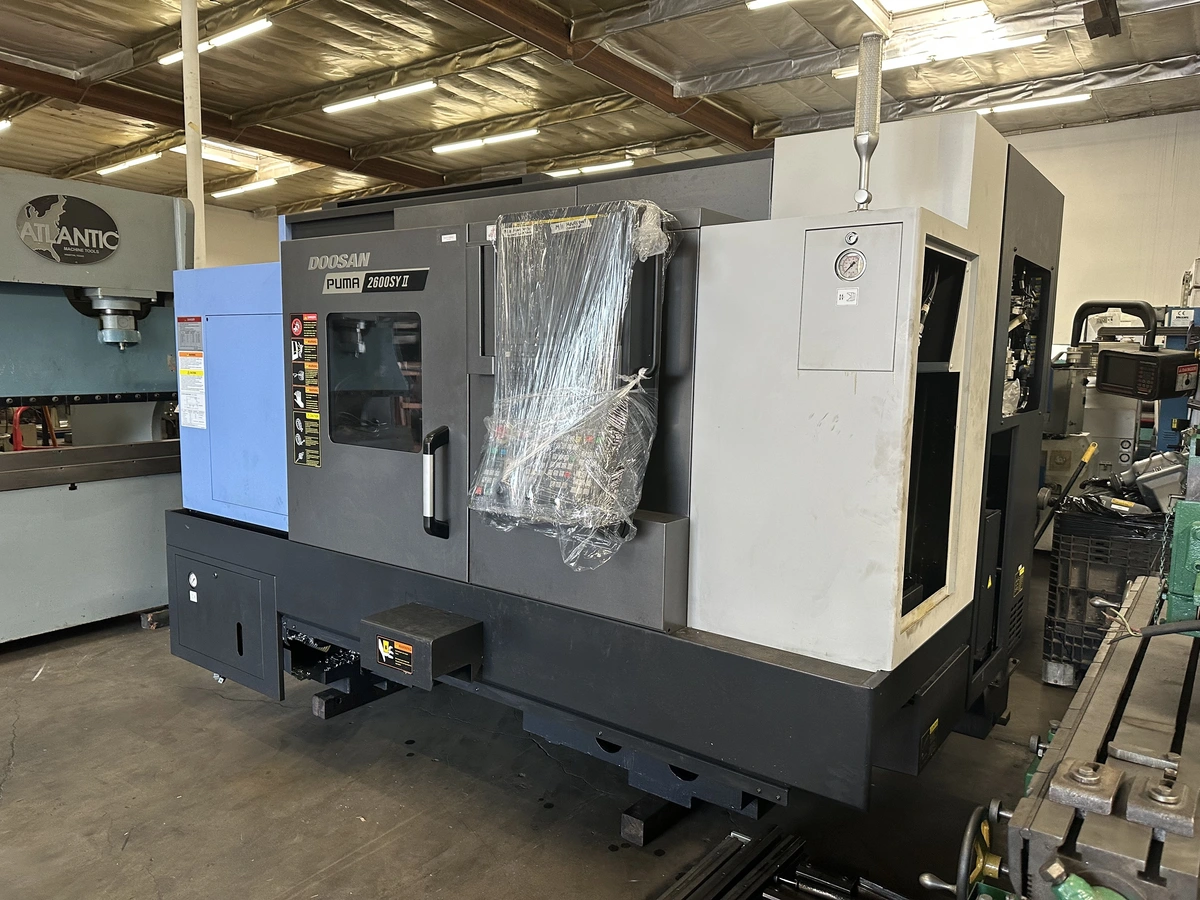

2020 DOOSAN PUMA 2600SY II CNC UNIVERSAL TURNING CENTER WITH MILLING, Y AXIS & SUB

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

CNC LATHES MULTI AXIS

Manufacturer:

Model:

PUMA 2600SYII

Condition:

Excellent

Year:

2020

Stock #:

210256

Status:

For Sale

THIS 2020 DOOSAN PUMA 2600SY HAS JUST 200 CUT HOURS, 5 LIVE TOOLS, EDGE REBEL 80 SLUG LOAD, AND A TURBO REAR DISCHARGE CHIP CONVEYOR

ImperialMetric

Maximum Swing	14.8"	375.92 mm
Max Turning Diameter	29.9"	759.46 mm
Main Spindle Bore/Max Bar Capacity	3.5/3.0"	3.5/3.0"
Tail Stock/Sub Spindle	Sub Spindle	Sub Spindle
X-Axis Travel (X1, X2, X3)	10.2"	10.2"
Z-Axis Travel (Z1, Z2, Z3)	32.7"	32.7"
Y-Axis Travel (Y1, Y2, Y3)	4.1" (+/-2.1")	4.1" (+/-2.1")
C-Axis Indexing (1, 2)	.001, .001 INDEXING	.001, .001 INDEXING
W-Axis Travel Sub Spindle	32.7 in
Main Spindle Chuck Size	10"	254 mm
Main Spindle Chuck Type	Hydraulic	Hydraulic
Main Spindle Bore Diameter	3.5"	88.9 mm
Main Spindle Maximum Bar Work	3"	76.2 mm
Main Spindle Speed	3,500 RPM	3,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)	30	30
Sub Spindle/2nd Spindle Chuck Size	8	8
Sub Spindle/2nd Spindle Bore Size	2.4	2.4
Sub Spindle/2nd Spindle Chuck Type	Hydraulic	Hydraulic
Sub Spindle/2nd Spindle Speed	4,500 RPM	4,500 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)	11	11
Turret Tool Positions 1, 2	24	24
Turret Rotary Tool Spindle Speed 1, 2	5000	5000
Turret Rotary Tool Horse Power 1, 2	7.5	7.5
Rapid Traverse, X-Axis	0	0
Rapid Traverse, Y-Axis	0	0
Rapid Traverse, Z-Axis	0	0
Control	CNC (FANUC 0i-T)	CNC (FANUC 0i-T)

FANUC 0i-T CONTROL
TURBO REAR DISCHARGE CHIP CONVEYOR
EDGE REBEL 80 SLUG LOAD
