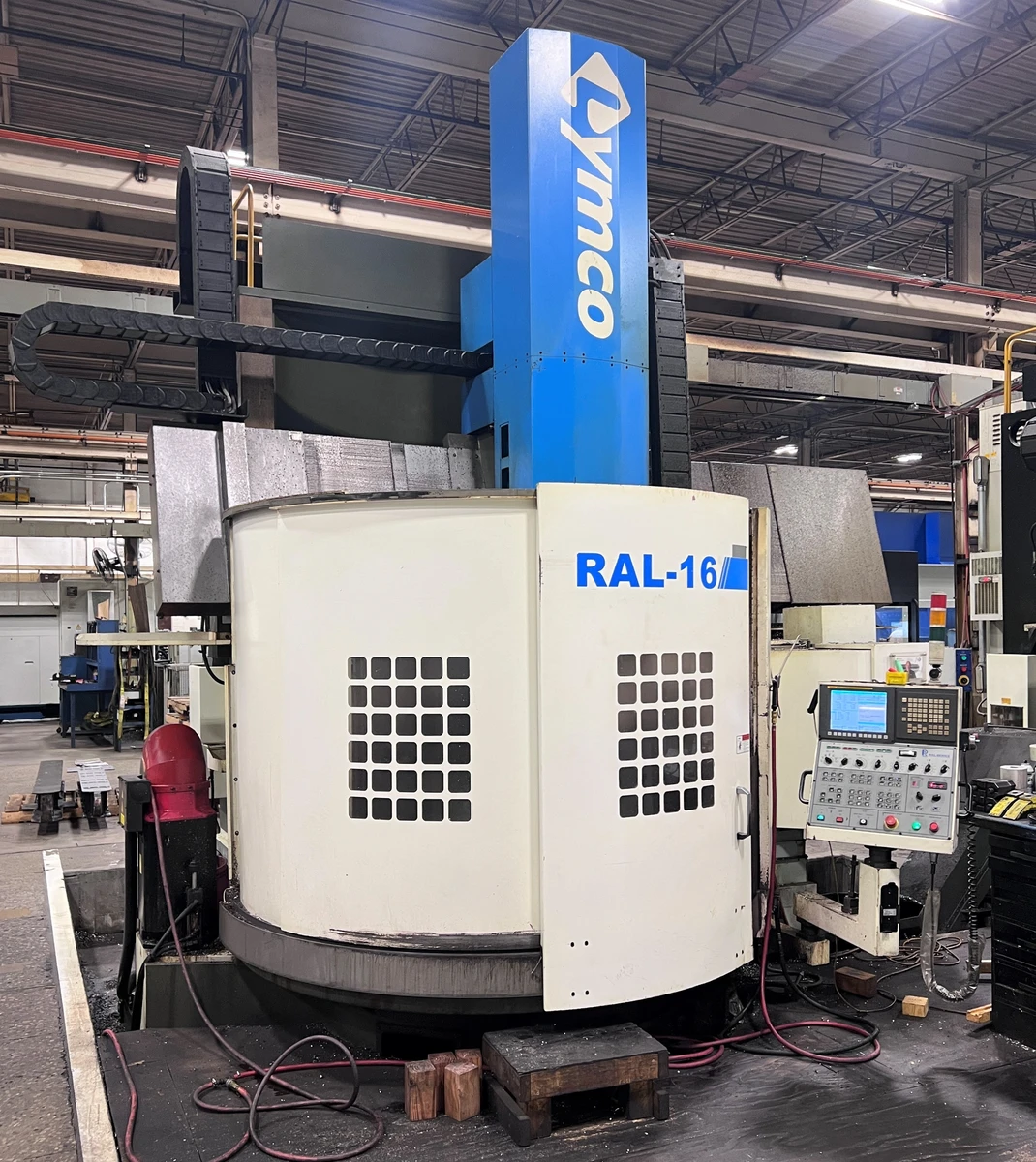

Lymco RAL-16 63" CNC Vertical Boring Mill W/ATC
Have one to sell?
ConditionUsed
1 available
THIS 2012 LYMCO RAL-16 HAS A FANUC 0I-TD CNC CONTROL, A 12-STATION AUTOMATIC TOOL CHANGER, AND 63" CHUCK W/4-FACE PLATE JAWS.
TABLE DIAMETER 63"
MAXIMUM SWING 78.74"
MAXIMUM TURNING DIAMETER 74.80"
MAXIMUM CUTTING HEIGHT 62.99"
RAM STROKE 39.4"
CROSSRAIL STROKE 31.49" (5 POSITION)
X-AXIS TRAVERSE -7.87"/+44.29"
MAXIMUM LOAD ON TABLE 22,000 LBS
SPINDLE SPEEDS 1-250 RPM
SPINDLE MOTOR 50/60 HP
FANUC 0I-TD CNC CONTROL
12-STATION AUTOMATIC TOOL CHANGER
63" CHUCK W/4-FACE PLATE JAWS
FULL ENCLOSURE
COOLANT SYSTEM
CHIP CONVEYOR
THIS 2012 LYMCO RAL-16 HAS A FANUC 0I-TD CNC CONTROL, A 12-STATION AUTOMATIC TOOL CHANGER, AND 63" CHUCK W/4-FACE PLATE JAWS.
Imperial
| Table Dia | 63" |
| Table Load Capacity | 22,000 lb |
| Swing | 78.7" |
| Turning Height | 62.99" |
| Main Motor | 50 hp |
| Automatic Tool Changer | 12 |
| Rapid Traverse X, Z | -7.87"/+44.29" |
| Work Ht-U/R | 63" |
| Table Speed | 250 RPM |
| Power | 50 hp |
| Control | CNC (FANUC 0i-TD) |
TABLE DIAMETER 63"
MAXIMUM SWING 78.74"
MAXIMUM TURNING DIAMETER 74.80"
MAXIMUM CUTTING HEIGHT 62.99"
RAM STROKE 39.4"
CROSSRAIL STROKE 31.49" (5 POSITION)
X-AXIS TRAVERSE -7.87"/+44.29"
MAXIMUM LOAD ON TABLE 22,000 LBS
SPINDLE SPEEDS 1-250 RPM
SPINDLE MOTOR 50/60 HP
FANUC 0I-TD CNC CONTROL
12-STATION AUTOMATIC TOOL CHANGER
63" CHUCK W/4-FACE PLATE JAWS
FULL ENCLOSURE
COOLANT SYSTEM
CHIP CONVEYOR
