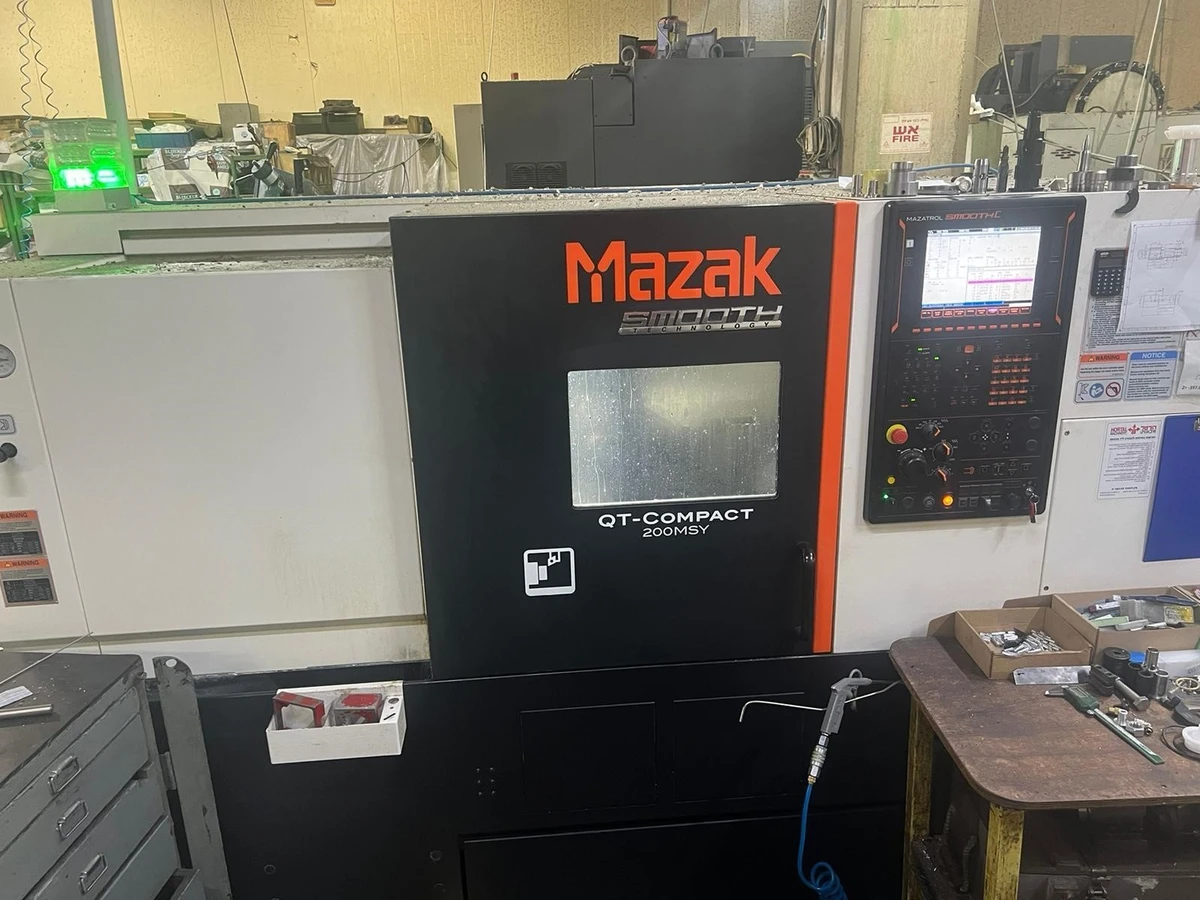

MAZAK QT COMPACT 200MSY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QT COMPACT 200MSY
Condition:
Excellent
Year:
2017
Stock #:
210260
Status:
For Sale

Description

THIS 2017 QT COMPACT 200MSY HAS A SMOOTH C CONTROL, 8" & 6" CHUCKS, C-AXIS ON BOTH SPINDLES AND 6 LIVE TOOLS.

Maximum Swing27.36"694.94 mm
Max Turning Diameter13.38"339.85 mm
Main Spindle Bore/Max Bar Capacity2.99/ 2.552.99/ 2.55
Tail Stock/Sub SpindleSub SpindleSub Spindle
Distance Between Centers19.68"499.87 mm
X-Axis Travel (X1, X2, X3)8.46"8.46"
Z-Axis Travel (Z1, Z2, Z3)23.8"23.8"
Y-Axis Travel (Y1, Y2, Y3)3.94"3.94"
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.99"75.946 mm
Main Spindle Maximum Bar Work2.55"64.77 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)2020
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size22
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)1010
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 27.57.5
Chip ConveyorYesYes
ControlCNC (MAZATROL SMOOTH C)CNC (MAZATROL SMOOTH C)

Standard equipment
COMPLETE COOLANT SYSTEM
FULL COVERAGE CHIP AND COOLANT GUARD
WORK LIGHT
ONE SET OF MANUALS (CD)
ONE SET OF ADJUSTING TOOLS
FOUNDATION KIT(PLATES)
MAZAK STANDARD COLOR (F WHITE/S BLACK)
THE SAFETY MEASURES ON WORLDWIDE LEVEL
STANDARD TOOLING PACKAGE
MAZATROL SMOOTHC CNC
10.4" COLOR LCD
8" THRU-HOLE CHUCK B-208A615S (1ST SPD.)
6" CHUCK B-206 FOR SECOND SPINDLE
POWER TRANSFORMER FOR OTHER MARKETS
1ST SPINDLE MOTOR AC 15KW(20HP)
SECOND SPINDLE MOTOR AC7.5KW(10HP)
1ST SPINDLE SPEED 5000 RPM
SECOND SPINDLE SPEED 6000 RPM
12 POSITION DRUM TURRET
ROTARY-TOOL SPINDLE SPEED 4500 RPM
C-AXIS 0.0001 DEGREE INCR.(1ST SPINDLE)
2ND SPINDLE C-AXIS 0.0001 DEGREE
Y-AXIS CONTROL
1ST SPINDLE BORE DIA.76MM(3")
AUTO CHUCK JAWS OPEN/CLOSE (1&2 SPINDLE)
CHUCK OPEN/CLOSE CONFIRM. (1&2 SPINDLE)
CHUCK AIR BLAST (SECOND SPINDLE)
ABSOLUTE POSITIONING SYSTEM
HYDRAULIC PRESSURE INTERLOCK
MILLING-SPINDLE SYNCHRONOUS TAPPING
ROLLER GUIDES
COOLANT SYSTEM (250W)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
AUTO POWER OFF(BREAKER TRIP)
SMOOTH STANDARD SOFTWARE FOR LATHE(MILL)
EIA/ISO PACKAGE
BACKGROUND TOOL PATH CHECK
DIRECT ENTRY OF DRAWINGS DIMENSIONS
LAN PORT
SD MEMORY I/F(1-PORT) + USB I/F(1-PORT)
RELOCATION DETECTOR ט.

MAZATROL SMOOTH C
8"THRU-HOLE CHUCK BB208A615
TOOL EYE (AUTOMATIC)
HIGH-POWER COOLANT (1.1 KW)
SIGNAL TOWER (3 COLORS LIGHTS, SQUARE)
CHIP CONVEYOR SIDE DISPOSAL(HINGE) 500U
DOUBLE FOOT SWITCH
V-MILL HOLDER DIA.20MM (LONG NOSE,THRU)
H-TYPE MILL&DRILL HOLDER DIA.20MM
B)CYLINDRICAL & POLAR COORDINATE (EIA)
BARFEEDER INTERFACE KIT
CHIP CONVEYOR
