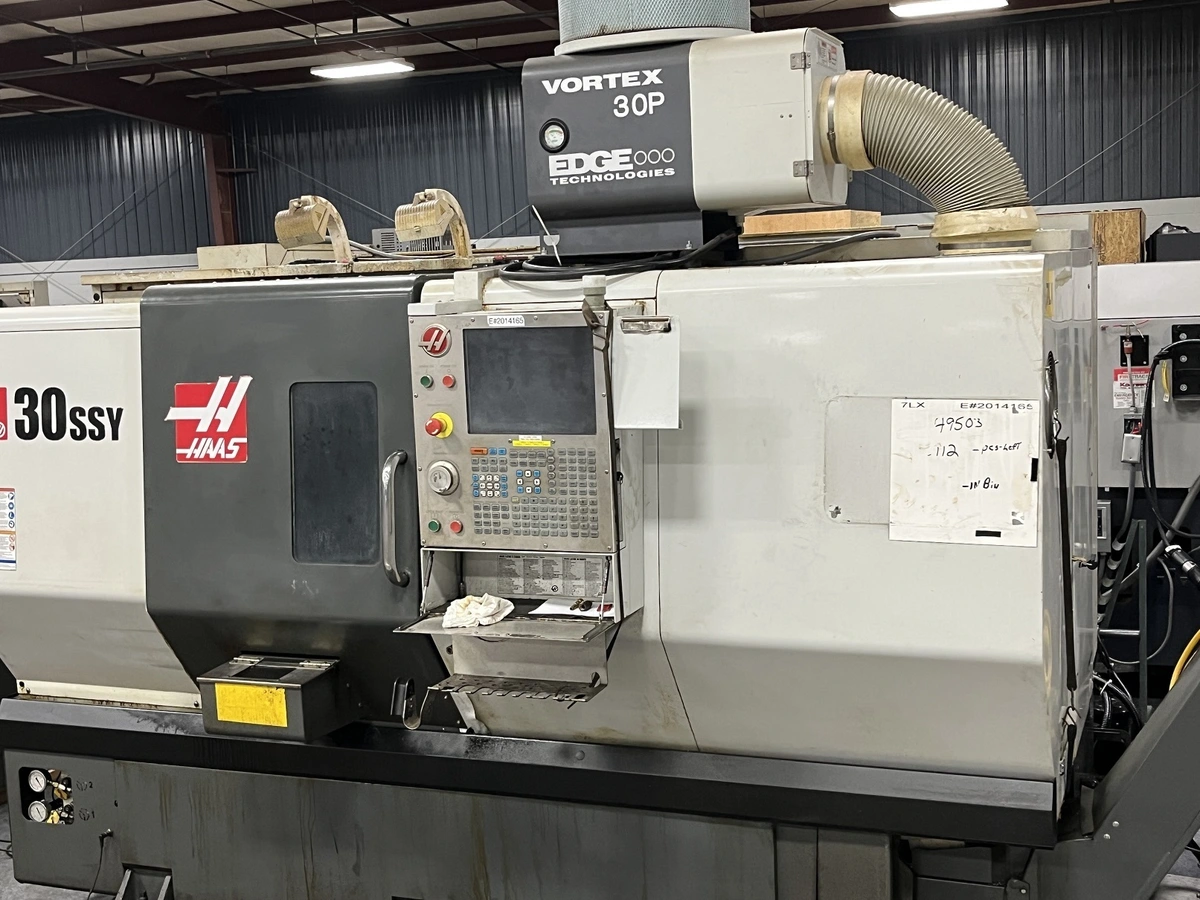

HAAS DS-30SSY DUAL SPINDLE LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
HAAS
Model:
DS-30SSY
Condition:
Good
Year:
2014
Stock #:
210270
Status:
For Sale

Description

THIS HAAS DS-30SSY HAS A MAIN AND SUB-SPINDLE, EXTRA COLLETS, LIVE TOOLING WITH Y AXIS, AND C-AXIS ON BOTH SPINDLES. 4 LIVE TOOLS, 2 STATIC DRILL HOLDERS WITH 8 QUICK CHANGE HOLDERS, BAR LOADER, HP COOLANT UNIT, CHIP CONVEYOR, PARTS CATCHER, AND 1 BRAND NEW RENISHAW PROBE.

Maximum Swing31.8"807.72 mm
Max Turning Diameter18"457.2 mm
Main Spindle Bore/Max Bar Capacity3.5/ 3"3.5/ 3"
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Swing Over Cross Slide20.8"528.32 mm
X-Axis Travel (X1, X2, X3)12.5"12.5"
Z-Axis Travel (Z1, Z2, Z3)23.0"23.0"
Y-Axis Travel (Y1, Y2, Y3)4"4"
C-Axis Indexing (1, 2)0.001°/ 0.0010.001°/ 0.001
W-Axis Travel Sub Spindle32.68 in
Main Spindle Chuck TypeColletCollet
Main Spindle Bore Diameter3.5"88.9 mm
Main Spindle Maximum Bar Work3"76.2 mm
Main Spindle Speed0 RPM0 RPM
Sub Spindle/2nd Spindle Bore Size2"2"
Sub Spindle/2nd Spindle Chuck TypeColletCollet
Sub Spindle/2nd Spindle Speed0 RPM0 RPM
Turret Tool Positions 1, 22424
Turret TypeLive Station BMT-65 TurretLive Station BMT-65 Turret
Turret Rotary Tool Spindle Speed 1, 260006000
Bar FeedYesYes
Parts CatcherYesYes
Chip ConveyorYesYes
Rapid Traverse, X-Axis472472
Rapid Traverse, Y-Axis472472
Rapid Traverse, Z-Axis945945
Additional ToolingSomeSome
ControlCNCCNC
Dimensions146″ x 67″ x 72″146″ x 67″ x 72″
Weight16,000 lbs16,000 lbs

MAIN CHUCK TYPE-80BZI
SUB-CHUCK TYPE-80BZI
LIVE TOOLING WITH Y-AXIS
EXTRA MAIN COLLETS INCLUDED
EXTRA SUB-COLLETS INCLUDED
MAIN SPINDLE C AXIS
SUB SPINDLE C AXIS
EXTRA CHANNEL SETS
TOOL HOLDER BLOCKS

OTHER ACCESSORIES-, BAR LOADER, HP COOLANT UNIT, CHIP CONVEYOR, PARTS CATCHER.

1 LIVE Z MODULAR.
3 LIVE X MODULAR.
8 ER 32 THAT FIT ABOVE LIVE.

2 STATIC DRILL HOLDERS WITH 8 QUICK CHANGE HOLDERS.

APPROX 18 COLLET PADS.

12 STATIC DRILL / TURNING HOLDERS.

1 BRAND NEW RENISHAW PROBE.
