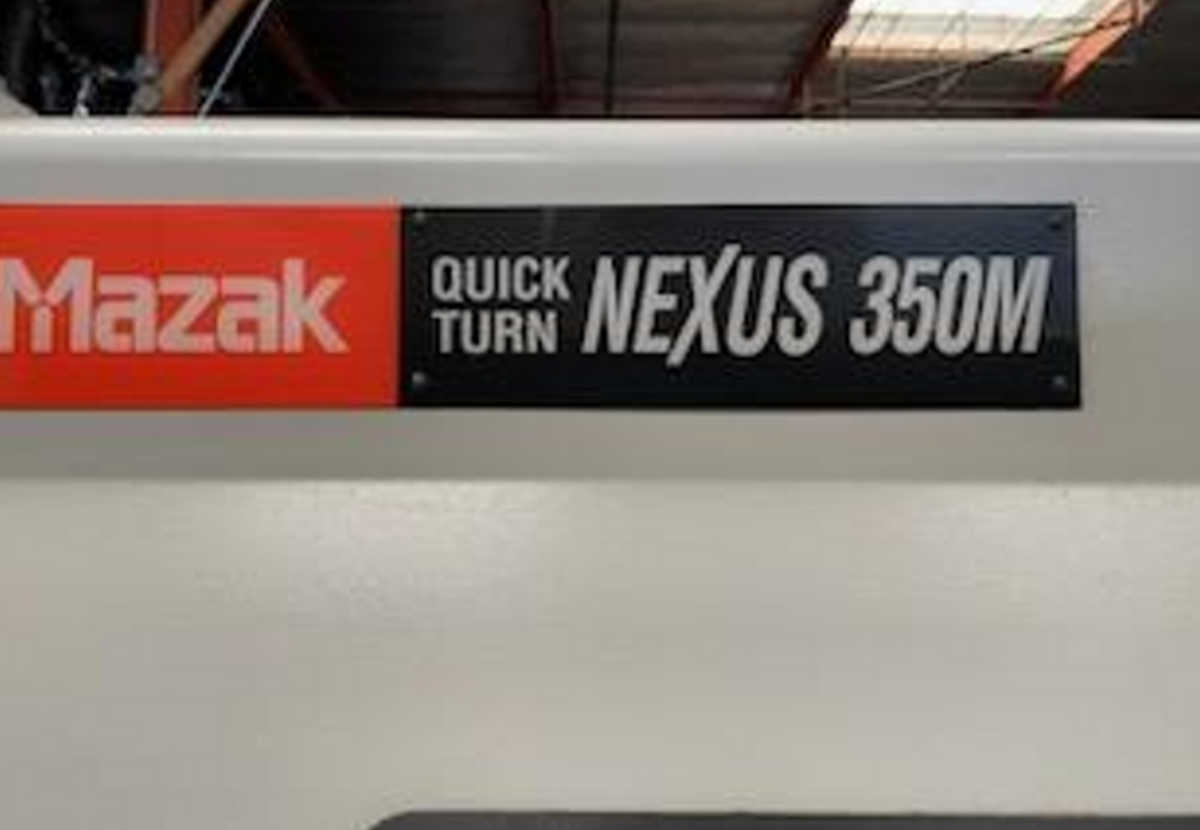

MAZAK NEXUS 350M-II

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 350M-II
Year:
2006
Stock #:
210273
Status:
For Sale

Description

MAZAK NEXUS 350M-II WITH MILLING AND 4.4" BORE

Maximum Swing29.5"749.3 mm
Max Turning Diameter16.5"419.1 mm
Main Spindle Bore/Max Bar Capacity4.4/44.4/4
Tail Stock/Sub SpindleTailstockTailstock
Maximum Swing Over Cross Slide20.87"530.1 mm
Maximum Cutting Length23.8"604.52 mm
X-Axis Travel (X1, X2, X3)10.12510.125
Z-Axis Travel (Z1, Z2, Z3)26.3826.38
C-Axis Indexing (1, 2).0001 degree increment.0001 degree increment
Main Spindle Chuck Size12"304.8 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter4.4"111.76 mm
Main Spindle Maximum Bar Work4"101.6 mm
Main Spindle Speed3,300 RPM3,300 RPM
Main Spindle Horsepower (CONT. /30 MINS)4040
Sub Spindle/2nd Spindle Speed4,000 RPM4,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)1010
Number of Turrets11
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 240004000
Turret Rotary Tool Horse Power 1, 21010
Chip ConveyorYesYes
Chip ConveyorSideSide
Milling Spindle Synchronous TappingYesYes
Tool Eye Automatic Front SpindleYesYes
Multi Tap TransformerYesYes
Rapid Traverse, X-Axis11811181
Rapid Traverse, Y-Axis11811181
Rapid Traverse, Z-Axis984984
ControlCNC (MAZATROL NEXUS 640)CNC (MAZATROL NEXUS 640)
Dimensions141.0" X 80.7" X 78.73"141.0" X 80.7" X 78.73"
Weight16,53416,534

MAZATROL640T FUSION CONTROL
12.1” COLOR LCD
USB I/F (2-PORT)
EIA/ISO INPUT FUNCTION
LAN PORT
PCMCIA INTERFACE
USER MACRO (COMMON VARIABLES 600 PARIS)
SEQUENCE NUMBER COMPARISON STOP FUNCTION
AUTOMATIC TOOL EYE
12 POSITION VDI TURRET
MILLING SPINDLE SYNCHRONOUS TAPPING
C-AXIS 0.0001 DEGREE INCR.
SPINDLE BORE 4.4”
12" KITAGAWA B212 CHUCK W/ 4" BAR CAP
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR SIDE 1200U (HINGE)
MFG /2006

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 350M-II
Year:
2006
Stock #:
210273
Status:
For Sale

Description

MAZAK NEXUS 350M-II WITH MILLING AND 4.4" BORE

Specifications

Imperial

Maximum Swing29.5"
Max Turning Diameter16.5"
Main Spindle Bore/Max Bar Capacity4.4/4
Tail Stock/Sub SpindleTailstock
Maximum Swing Over Cross Slide20.87"
Maximum Cutting Length23.8"
X-Axis Travel (X1, X2, X3)10.125
Z-Axis Travel (Z1, Z2, Z3)26.38
C-Axis Indexing (1, 2).0001 degree increment
Main Spindle Chuck Size12"
Main Spindle Chuck TypeHydraulic
Main Spindle Bore Diameter4.4"
Main Spindle Maximum Bar Work4"
Main Spindle Speed3,300 RPM
Main Spindle Horsepower (CONT. /30 MINS)40
Sub Spindle/2nd Spindle Speed4,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)10
Number of Turrets1
Turret Tool Positions 1, 212
Turret Rotary Tool Spindle Speed 1, 24000
Turret Rotary Tool Horse Power 1, 210
Chip ConveyorYes
Chip ConveyorSide
Milling Spindle Synchronous TappingYes
Tool Eye Automatic Front SpindleYes
Multi Tap TransformerYes
Rapid Traverse, X-Axis1181
Rapid Traverse, Y-Axis1181
Rapid Traverse, Z-Axis984
ControlCNC (MAZATROL NEXUS 640)
Dimensions141.0" X 80.7" X 78.73"
Weight16,534

Equipped With

MAZATROL640T FUSION CONTROL
12.1” COLOR LCD
USB I/F (2-PORT)
EIA/ISO INPUT FUNCTION
LAN PORT
PCMCIA INTERFACE
USER MACRO (COMMON VARIABLES 600 PARIS)
SEQUENCE NUMBER COMPARISON STOP FUNCTION
AUTOMATIC TOOL EYE
12 POSITION VDI TURRET
MILLING SPINDLE SYNCHRONOUS TAPPING
C-AXIS 0.0001 DEGREE INCR.
SPINDLE BORE 4.4”
12" KITAGAWA B212 CHUCK W/ 4" BAR CAP
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR SIDE 1200U (HINGE)
MFG /2006
