**SOLD** 2012 MAZAK HYPER QUADREX 150MSY WITH LNS BAR FEEDER AND LIVE TOOLING
Have one to sell?
ConditionUsed
1 available

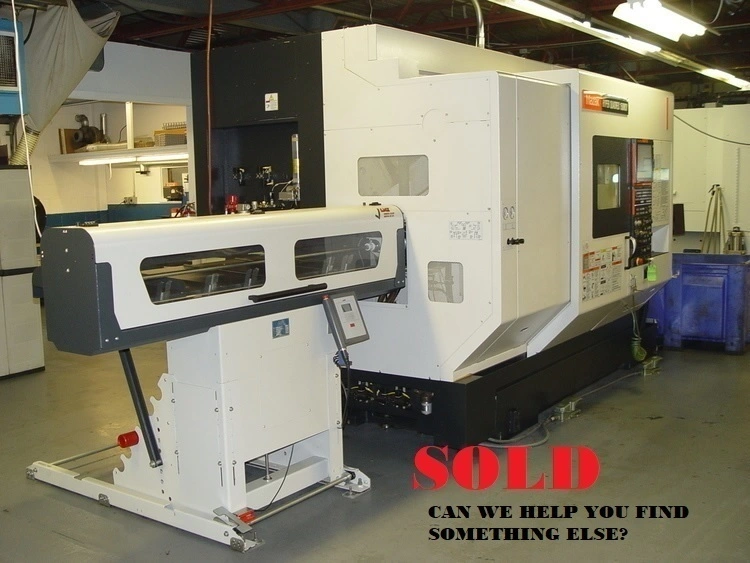

THE HYPER QUADREX 150MSY MULTI-TASKING TURNING CENTER FEATURES A HIGHLY PRODUCTIVE TWIN-SPINDLE, TWIN-TURRET CONFIGURATION FOR UNEQUALED PART PROCESSING OPPORTUNITIES AND HIGH-VOLUME THROUGHPUT. IT MACHINES PARTS COMPLETE, FROM RAW MATERIAL TO FINISHED PART, IN A SINGLE SETUP. THE MACHINE INCLUDES AN LNS QLS80 BAR FEEDER, 213 PSI CTS, 2 - 6" CHUCKS AND ROYAL COLLET CHUCKS, 7 RADIAL AND 2 AXIAL LIV TOOLS.
CAPACITY MAXIMUM SWING: 12.60"
MAXIMUM MACHINING DIAMETER: 11.625"
MAXIMUM BAR WORK CAPACITY" 2.6"
MAXIMUM MACHINING LENGTH: 24.375"
MAIN SPINDLE CHUCK SIZE: 6"
MAXIMUM SPEED: 6,000 RPM
MOTOR OUTPUT (30-MINUTE RATING) 20.0 HP / 15 KW
SECOND SPINDLE CHUCK SIZE: 6"
MAXIMUM SPEED: 6,000 RPM
MOTOR OUTPUT (30-MINUTE RATING) 15 HP / 11 KW
TURRET (UPPER) NUMBER OF TOOLS: 12
MAXIMUM SPEED: 6,000 RPM
MOTOR OUTPUT (10-MINUTE RATING) 7.5 HP / 6 KW
TURRET (LOWER) NUMBER OF TOOLS: 12
FEED AXES TRAVEL (X AXIS) 6.88"
TRAVEL (X2 AXIS) 4.31"
TRAVEL (Y AXIS) 4.00"
TRAVEL (Z AXIS) 20.38"
TRAVEL (Z2 AXIS) 22.75"
MAZATROL MATRIX CNC CONTROL
SUB SPINDLE
UPPER AND LOWER TURRETS
213 PSI HIGH-PRESSURE COOLANT WITH TEMPERATURE CONTROL (COST $17,800)
OIL MATIC COOLER
MAYFRAN CHIP CONVEYOR (COST $7,500)
LNS BAR FEED MODEL QLS80 (COST $22,300)
WORKPIECE UNLOADER AND CONVEYOR (COST $15,600)
INCLUDES (2) 6" CHUCKS AND ROYAL COLLET CHUCKS
10, BORING BAR HOLDERS
1, CUT OFF HOLDER
10, OD HOLDERS
7, RADIAL LIVE TOOL HOLDERS
2, AXIAL LIVE TOOL HOLDERS
THE HYPER QUADREX 150MSY MULTI-TASKING TURNING CENTER FEATURES A HIGHLY PRODUCTIVE TWIN-SPINDLE, TWIN-TURRET CONFIGURATION FOR UNEQUALED PART PROCESSING OPPORTUNITIES AND HIGH-VOLUME THROUGHPUT. IT MACHINES PARTS COMPLETE, FROM RAW MATERIAL TO FINISHED PART, IN A SINGLE SETUP. THE MACHINE INCLUDES AN LNS QLS80 BAR FEEDER, 213 PSI CTS, 2 - 6" CHUCKS AND ROYAL COLLET CHUCKS, 7 RADIAL AND 2 AXIAL LIV TOOLS.
Imperial
| Maximum Swing | 12.6" |
| Max Turning Diameter | 11.625" |
| Main Spindle Bore/Max Bar Capacity | 2.56" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 24.5" |
| X-Axis Travel (X1, X2, X3) | 6.88"/ 4.31" |
| Z-Axis Travel (Z1, Z2, Z3) | 20.38"/ 22.75" |
| Y-Axis Travel (Y1, Y2, Y3) | 4.0" |
| Main Spindle Chuck Size | 6" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.56" |
| Main Spindle Speed | 6,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.0 |
| Bar Feed | Yes |
| Chip Conveyor | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Number of Available Live Tool Holders | 9 |
| Control | CNC (MAZATROL MATRIX) |
CAPACITY MAXIMUM SWING: 12.60"
MAXIMUM MACHINING DIAMETER: 11.625"
MAXIMUM BAR WORK CAPACITY" 2.6"
MAXIMUM MACHINING LENGTH: 24.375"
MAIN SPINDLE CHUCK SIZE: 6"
MAXIMUM SPEED: 6,000 RPM
MOTOR OUTPUT (30-MINUTE RATING) 20.0 HP / 15 KW
SECOND SPINDLE CHUCK SIZE: 6"
MAXIMUM SPEED: 6,000 RPM
MOTOR OUTPUT (30-MINUTE RATING) 15 HP / 11 KW
TURRET (UPPER) NUMBER OF TOOLS: 12
MAXIMUM SPEED: 6,000 RPM
MOTOR OUTPUT (10-MINUTE RATING) 7.5 HP / 6 KW
TURRET (LOWER) NUMBER OF TOOLS: 12
FEED AXES TRAVEL (X AXIS) 6.88"
TRAVEL (X2 AXIS) 4.31"
TRAVEL (Y AXIS) 4.00"
TRAVEL (Z AXIS) 20.38"
TRAVEL (Z2 AXIS) 22.75"
MAZATROL MATRIX CNC CONTROL
SUB SPINDLE
UPPER AND LOWER TURRETS
213 PSI HIGH-PRESSURE COOLANT WITH TEMPERATURE CONTROL (COST $17,800)
OIL MATIC COOLER
MAYFRAN CHIP CONVEYOR (COST $7,500)
LNS BAR FEED MODEL QLS80 (COST $22,300)
WORKPIECE UNLOADER AND CONVEYOR (COST $15,600)
INCLUDES (2) 6" CHUCKS AND ROYAL COLLET CHUCKS
10, BORING BAR HOLDERS
1, CUT OFF HOLDER
10, OD HOLDERS
7, RADIAL LIVE TOOL HOLDERS
2, AXIAL LIVE TOOL HOLDERS
