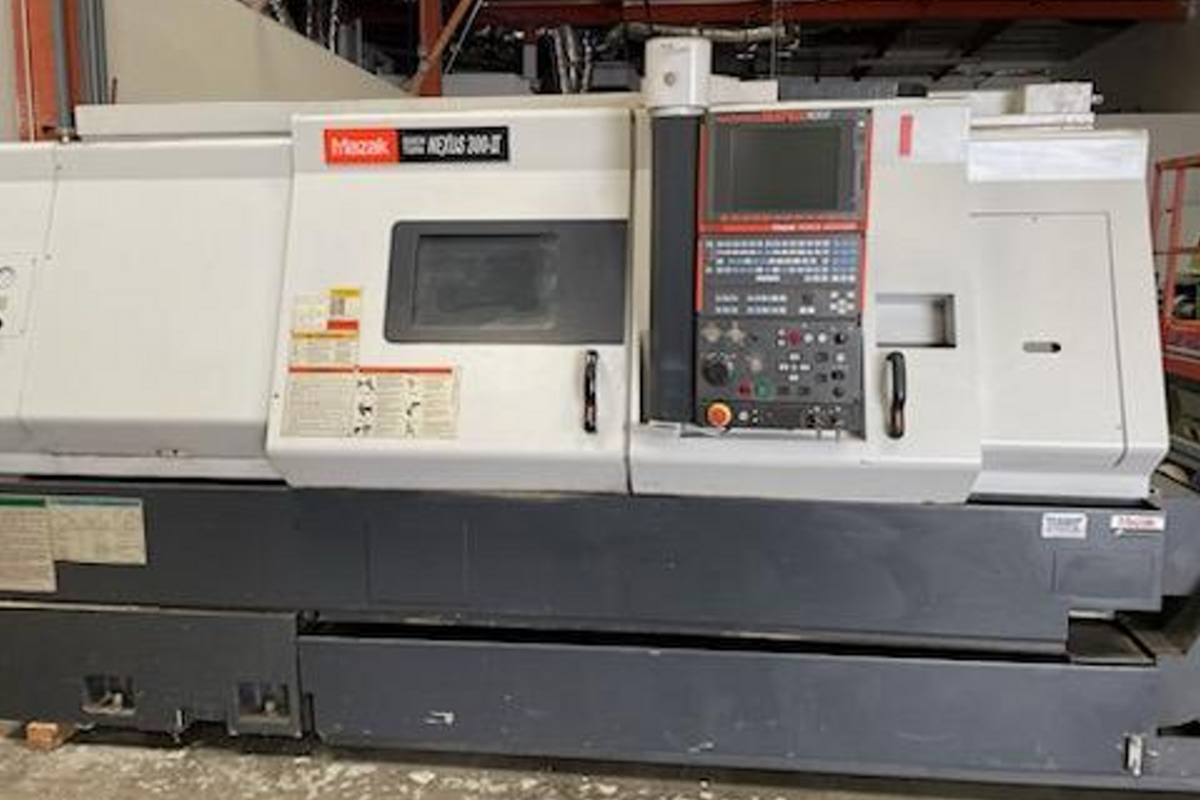

MAZAK QTN 300
Have one to sell?
ConditionUsed
1 available
THIS QTN 300 HAS A MATRIX NEXUS CONTROL, 213 PSI CTS, 12" HYDRAULIC CHUCK, PROGRAMMABLE TAILSTOCK AND CHIP CONVEYOR
SPECIFICATIONS:
MAXIMUM SWING 23.8"
MAXIMUM CUTTING DIAMETER 16.5"
MAXIMUM CUTTING LENGTH 26"
SPINDLE SPEEDS 6 - 3300 RPM
SPINDLE HP 35/30
SPINDLE NOSE A2-8
SPINDLE BORE 3.50"
SPINDLE BAR CAPACITY 3.0"
X-AXIS TRAVEL 8.875"
Z-AXIS TRAVEL 48"
RAPID TRAVERSE RATE X-AXIS 1180 IPM
Z-AXIS 984 IPM
TURRET TYPE 12 POSITIONS
TOOL SIZE 1" X 1" X 6"
TAILSTOCK QUILL DIAMETER 3.94"
TAILSTOCK CENTER MT #5
STROKE OF TAIL BODY 17.875"
APPROXIMATE WEIGHT 14,600LBS
FLOOR SPACE 118 x 81
MAZAK MATRIX 12.1 COLOR CNC CONTROL
LAN PORT
USER MACRO - COMMON VARIABLES 600 PAIRS
EIA/ISO INPUT FUNCTION SEQUENCE NUMBER
COMPARISON STOP FUNCTION
CHIP CONVEYOR
12" 3-JAW HYDRAULIC CHUCK/ 3000 RPM WITH 3" BAR CAPACITY
SEQUENCE NUMBER COMPARISON STOP FUNCTION
AUTOMATIC TOOL EYE
213 PSI COOLANT THRU
OPERATOR DOOR WITH INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
12-POSITION DRUM TURRET - BOLT-ON STYLE TOOLING
RE-THREADING
BORING BAR HOLDER DIA - 2" ID
SPLIT BORING BAR HOLDER - 2" SOCKETS
