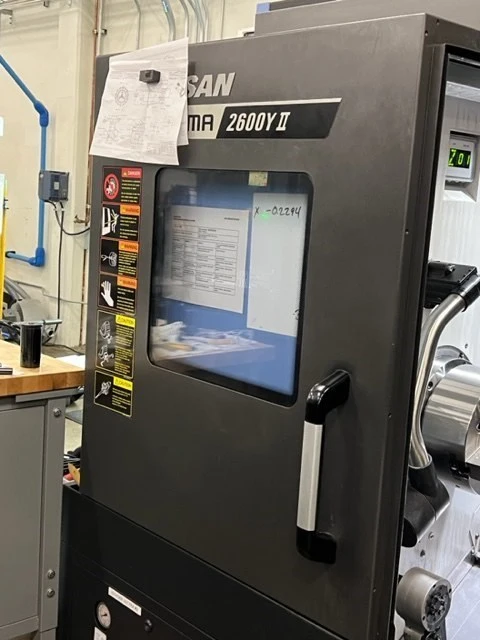

2021 DOOSAN PUMA 2600YII CNC MULTI TASKING TURNING AND MILLING CENTER

2021 DOOSAN PUMA 2600YII CNC MULTI TASKING TURNING AND MILLING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DOOSAN
Model:
PUMA 2600YII
Year:
2021
Stock #:
210279
Status:
For Sale

Description

THIS 2021 DOOSAN PUMA 2600Y HAS A DOOSAN EZ GUIDE I CNC COLOR CONVERSATIONAL CONTROL, AUTO PARTS CATCHER, HIGH-PRESSURE THROUGH THE MILL HEAD COOLANT, BARFEED INTERFACE, PROGRAMMABLE TAILSTOCK, AND ROTARY TOOL HOLDERS.

Maximum Swing30.7"779.78 mm
Max Turning Diameter14.8"375.92 mm
Main Spindle Bore/Max Bar Capacity3.4"/ 3.0"3.4"/ 3.0"
Tail Stock/Sub SpindleTailstockTailstock
Distance Between Centers34"863.6 mm
X-Axis Travel (X1, X2, X3)10.2"10.2"
Z-Axis Travel (Z1, Z2, Z3)32.7"32.7"
Y-Axis Travel (Y1, Y2, Y3)4.1"4.1"
C-Axis Indexing (1, 2).001.001
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.4"86.36 mm
Main Spindle Maximum Bar Work3"76.2 mm
Main Spindle Speed3,500 RPM3,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)3030
Turret Tool Positions 1, 22424
Turret Rotary Tool Spindle Speed 1, 250005000
Turret Rotary Tool Horse Power 1, 27.57.5
Parts CatcherYesYes
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
Tool Eye Automatic Second SpindleYesYes
Coolant Thru Milling HeadYesYes
ControlCNC (DOOSAN EZ GUIDE I)CNC (DOOSAN EZ GUIDE I)
Weight13,227 lbs.13,227 lbs.

Rapid Traverse Rates 1181 IPM
Rapid Traverse Rates 1181 IPM
Rapid Traverse Rates 393 IPM

DOOSAN EZ GUIDE I CNC COLOR CONVERSATIONAL CONTROL
AUTO PARTS CATCHER
BAR FEED INTERFACE
BUILT-IN LIVE CENTER FOR TAILSTOCK
CHIP CONVEYOR
ETHERNET, USB
FULL C-AXIS .001
FULL COMPLEMENT OF STATIC TOOL HOLDERS
HIGH PRESSURE THROUGH THE MILL HEAD COOLANT
PROGRAMMABLE TAILSTOCK
ROTARY TOOL HOLDERS
TOOL PRESETTERS FRONT AND REAR
