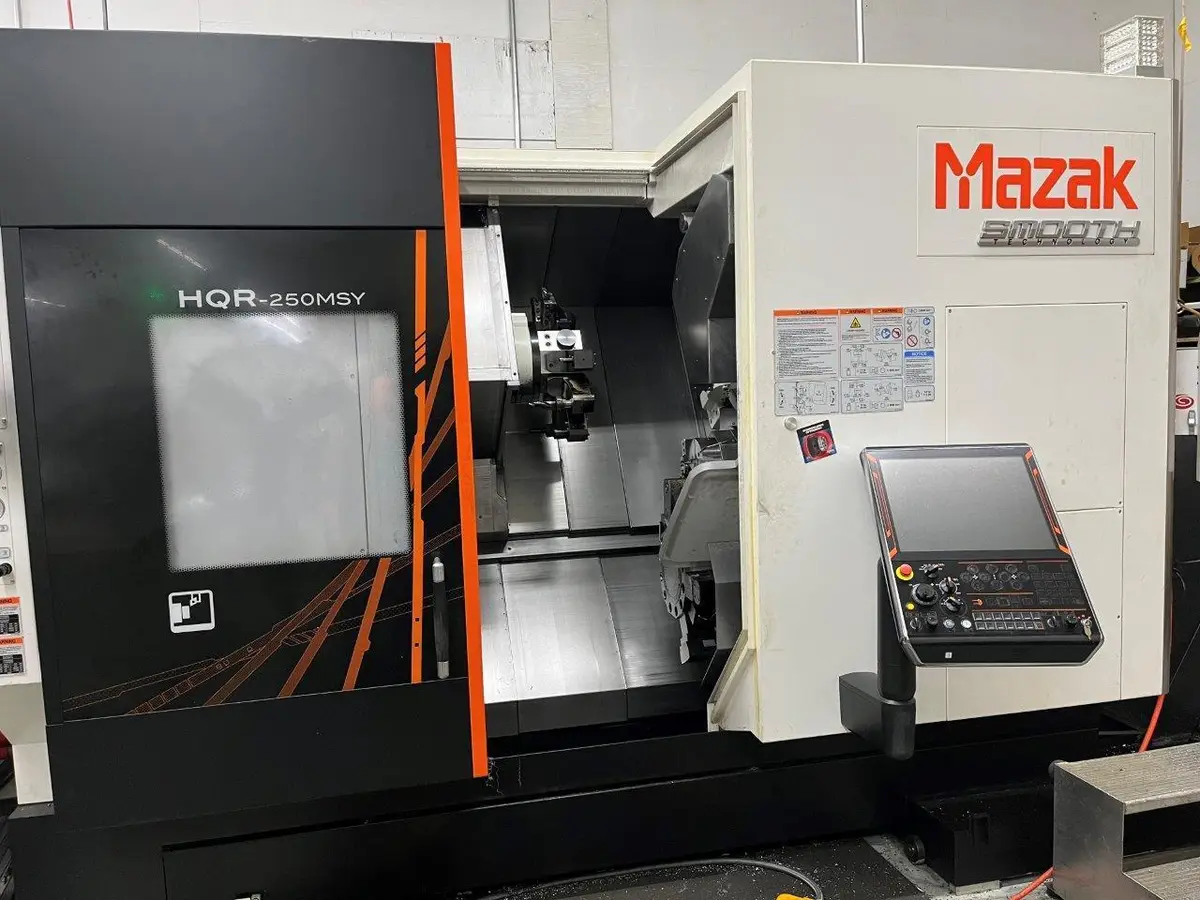

2019 MAZAK HYPER QUADREX 250MSY WITH SMOOTH G CONTROL
Have one to sell?
ConditionUsed
1 available
2019 HQR 250 MSY HAS HI-PRESS COOLANT 213PSI WITH TEMPERATURE CONTROL, WORKPIECE UNLOADER & CONVEYOR 3.15"DIA. X 10" L X 11.02 LB.MAX, 3-JAW CHUCK HEAD ONE, 3-JAW CHUCK HEAD TWO, LNS TURBO MH-250 SIDE DISPOSAL CHIP CONVEYOR, OVERLOAD DETECTOR HD1&HD2, SMOOTH ENGRAVING FUNCTION, SIGNAL TOWER (3 COLORS LIGHTS, SQUARE), LNS QUICK LOAD SERVO 80-S2 BAR FEED
MAZATROL SMOOTH G
HI-PRESS COOLANT 213PSI WITH TEMPERATURE CONTROL
WORKPIECE UNLOADER & CONVEYOR 3.15"DIA.X 10"L X 11.02 LB.MAX
10” 3-JAW KITAGAWA ON HEAD ONE
8” 3-JAW KITAGAWA ON HEAD TWO
LNS TURBO MH-250 SIDE DISPOSAL CHIP CONVEYOR
OVERLOAD DETECTOR HD1&HD2
SMOOTH ENGRAVING FUNCTION
SIGNAL TOWER (3 COLORS LIGHTS, SQUARE)
LNS QUICK LOAD SERVO 80-S2 BAR FEED
ALL AVAILABLE TURRET TOOLS.
ALL AVAILABLE MANUALS.
2019 HQR 250 MSY HAS HI-PRESS COOLANT 213PSI WITH TEMPERATURE CONTROL, WORKPIECE UNLOADER & CONVEYOR 3.15"DIA. X 10" L X 11.02 LB.MAX, 3-JAW CHUCK HEAD ONE, 3-JAW CHUCK HEAD TWO, LNS TURBO MH-250 SIDE DISPOSAL CHIP CONVEYOR, OVERLOAD DETECTOR HD1&HD2, SMOOTH ENGRAVING FUNCTION, SIGNAL TOWER (3 COLORS LIGHTS, SQUARE), LNS QUICK LOAD SERVO 80-S2 BAR FEED
Imperial
| Maximum Swing | 14.6" |
| Max Turning Diameter | 8.35" |
| Main Spindle Bore/Max Bar Capacity | 3.56"/ 3.15" |
| Tail Stock/Sub Spindle | SUBSPINDLE |
| Maximum Cutting Length | 13.54" |
| Distance Between Spindles | 33.86" |
| X-Axis Travel (X1, X2, X3) | 8.2"/5.5625" |
| Z-Axis Travel (Z1, Z2, Z3) | 29.875"/32.125" |
| Y-Axis Travel (Y1, Y2, Y3) | 4" [±2"] / 4" [±2"] |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.56" |
| Main Spindle Maximum Bar Work | 3.15" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.99 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 5,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 30 |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.0 |
| Bar Feed | Yes |
| Chip Conveyor | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Workpiece Unloader & Conveyor | WORKPIECE UNLOADER & CONVEYOR 3.15" DIA.X 10" L X 11.02 LB.MAX |
| (HQR) Standard Chuck Dia. Main Spindle (L) | 10" |
| (HQR) Standard Chuck Dia. Second Spindle (R) | 8" |
| Upper Turret Positions | 12 |
| Lower Turret Positions | 12 |
| Rapid Traverse, X-Axis | 0 |
| Rapid Traverse, Y-Axis | 0 |
| Rapid Traverse, Z-Axis | 0 |
| Control | CNC (MAZATROL SMOOTH G) |
| Dimensions | 142.7" x 110.6 x98.3 |
MAZATROL SMOOTH G
HI-PRESS COOLANT 213PSI WITH TEMPERATURE CONTROL
WORKPIECE UNLOADER & CONVEYOR 3.15"DIA.X 10"L X 11.02 LB.MAX
10” 3-JAW KITAGAWA ON HEAD ONE
8” 3-JAW KITAGAWA ON HEAD TWO
LNS TURBO MH-250 SIDE DISPOSAL CHIP CONVEYOR
OVERLOAD DETECTOR HD1&HD2
SMOOTH ENGRAVING FUNCTION
SIGNAL TOWER (3 COLORS LIGHTS, SQUARE)
LNS QUICK LOAD SERVO 80-S2 BAR FEED
ALL AVAILABLE TURRET TOOLS.
ALL AVAILABLE MANUALS.
