2008 MAZAK INTEGREX 300 IV S
Have one to sell?
ConditionUsed
1 available

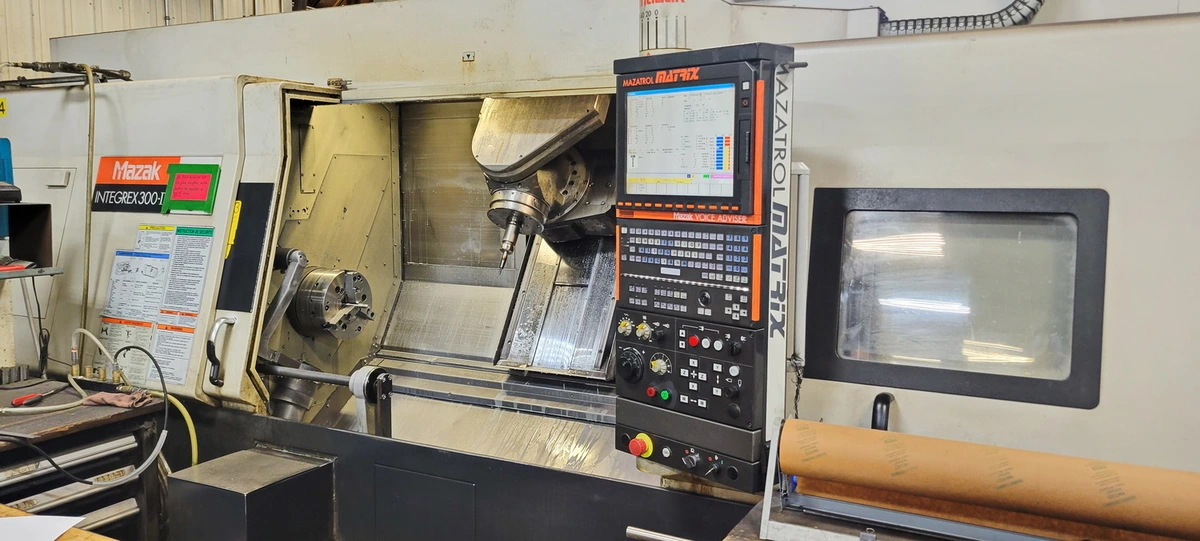

2008 MAZAK INTEGREX 300 IV S MULTI-AXIS CNC LATHE, Y-AXIS, 12000 RPM LIVE TOOLING, B-AXIS, C-AXIS INDEXING, DUAL 10" 3-JAW CHUCKS, PARTS CATCHER, TOOL PRESETTER, AND CHIP CONVEYOR.
LIVE TOOLING (12000 RPM)
Y-AXIS
B-AXIS
C-AXIS INDEXING
PARTS CATCHER
TOOL PRESETTER
CHIP CONVEYOR
2008 MAZAK INTEGREX 300 IV S MULTI-AXIS CNC LATHE, Y-AXIS, 12000 RPM LIVE TOOLING, B-AXIS, C-AXIS INDEXING, DUAL 10" 3-JAW CHUCKS, PARTS CATCHER, TOOL PRESETTER, AND CHIP CONVEYOR.
Imperial
| Maximum Swing | 29.92" |
| Max Turning Diameter | 29.92" |
| Main Spindle Bore/Max Bar Capacity | 3.58/ 3.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 60" |
| X-Axis Travel (X1, X2, X3) | 24.83" |
| Z-Axis Travel (Z1, Z2, Z3) | 62.41" |
| Y-Axis Travel (Y1, Y2, Y3) | +/-4.13" |
| C-Axis Indexing (1, 2) | YES |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.58" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 |
| Sub Spindle/2nd Spindle Chuck Size | 10 |
| Sub Spindle/2nd Spindle Bore Size | 3 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 4,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 35 |
| ATC Magazine Capacity | 40 |
| B Axis Rotary Tool Spindle Speed | 12000 rpm |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Rapid Traverse, X-Axis | 1496 |
| Rapid Traverse, Z-Axis | 1496 |
| Control | CNC |
LIVE TOOLING (12000 RPM)
Y-AXIS
B-AXIS
C-AXIS INDEXING
PARTS CATCHER
TOOL PRESETTER
CHIP CONVEYOR
