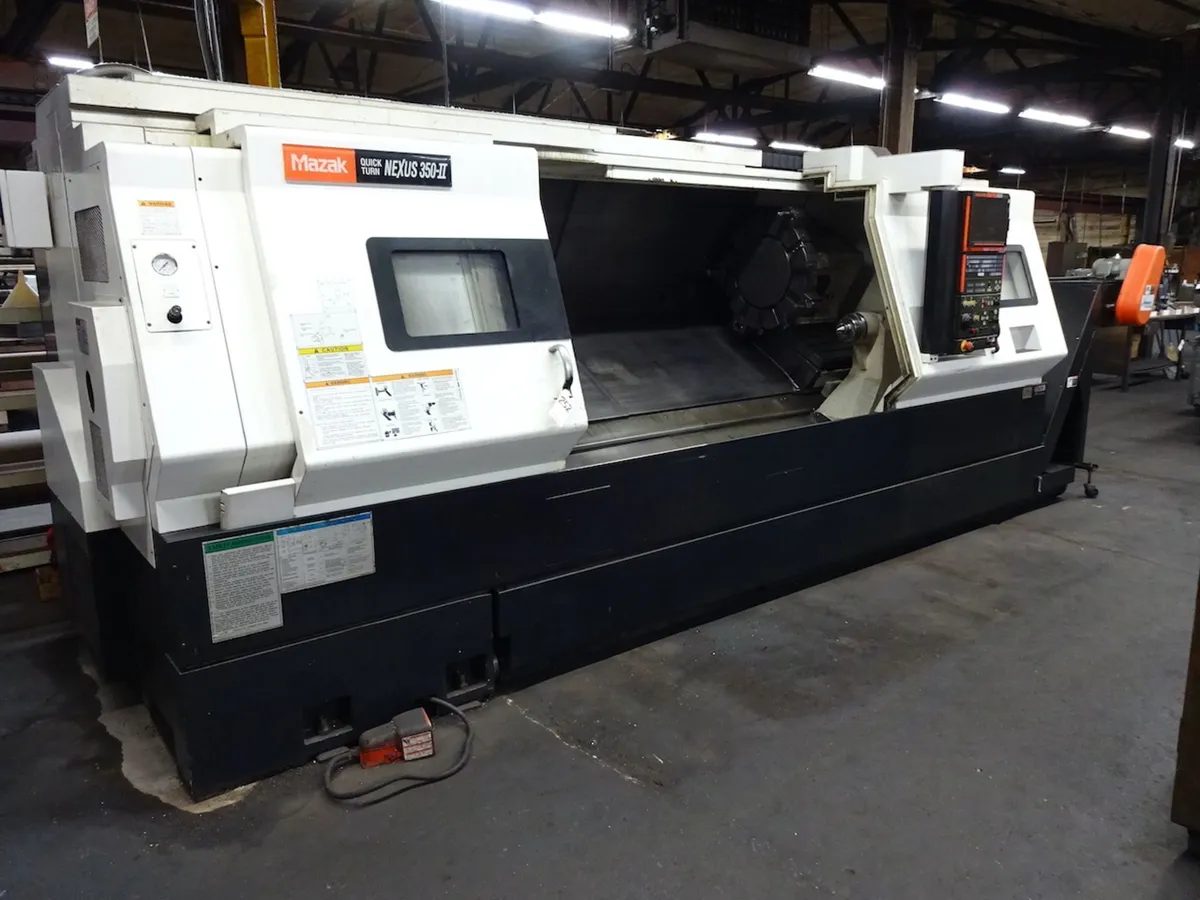

MAZAK QTN 350II WITH 80" CENTERS

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MAZAK
Model:
QTN 350II/ 80'
Condition:
Good
Year:
2011
Stock #:
210291
Status:
For Sale

Description

QTN 350 HAS MAZAK MATRIX NEXUS, 12″ THRU-HOLE CHUCK PKG W/4″ BAR CAP (BB-212A1115A CYLINDER), EIA/ISO INPUT FUNCTION, OPERATOR DOOR INTERLOCK, HYDRAULIC PRESSURE INTERLOCK, ATLM, HIGH POWER COOLANT, 59 PSI, HINGE STYLE CHIP CONVEYOR FOR 80″,
AND TAILSTOCK MT #5 W/BUILT IN LIVE CENTER

Max. Swing26.77"679.96 mm
Max Turning Diameter16.5"419.1 mm
Spindle Bore/Max Bar Capacity4.4/ 4.0"4.4/ 4.0"
Z Travel79.13"2,009.9 mm
X Travel8.85"224.79 mm
Machining Length81.1"2,059.9 mm
Chuck Size12"304.8 mm
Chuck TypeHydraullicHydraullic
Spindle Motor40 hp
Spindle Speeds (RPM)33003300
Spindle Bore4.4 in
Max. Bar Capacity4"101.6 mm
Turret Tool Positions1212
TailstockYesYes
Chip ConveyorYesYes
ControlCNC (MAZATROL MATRIX NEXUS)CNC (MAZATROL MATRIX NEXUS)

MAZAK MATRIX NEXUS
8607 HOURS
12″ THRU-HOLE CHUCK PKG W/4″ BAR CAP (BB-212A1115A CYLINDER)
EIA/ISO INPUT FUNCTION
OPERATOR DOOR INTERLOCK
HYDRAULIC PRESSURE INTERLOCK
ATLM
HIGH POWER COOLANT, 59 PSI
12-POSITION DRUM TURRET, BOLT-ON STYLE TURRET
WINDOWS XP OPERATING SYSTEM
HINGE STYLE CHIP CONVEYOR FOR 80″
TAILSTOCK MT #5 W/BUILT IN LIVE CENTER
