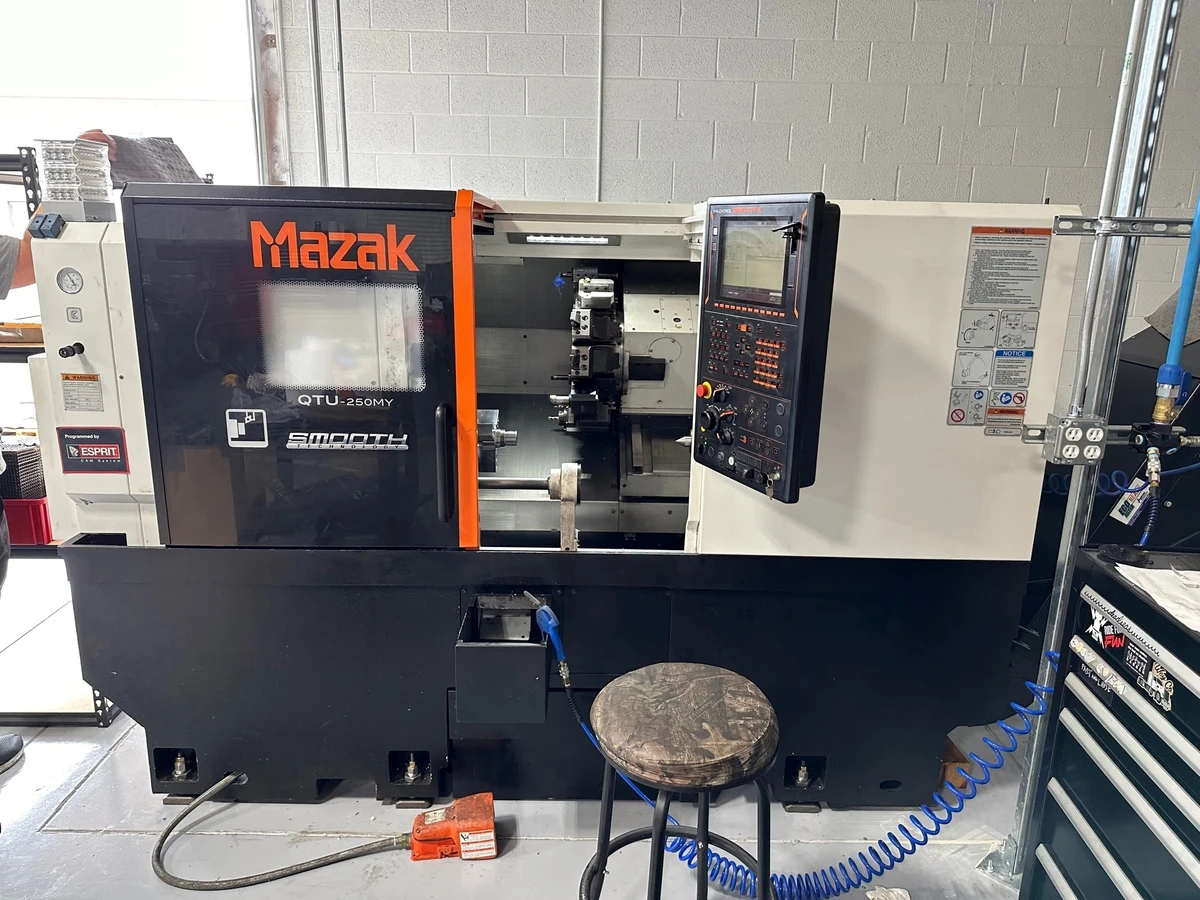

2019 MAZAK QTU 250MY
Have one to sell?
ConditionUsed
1 available
TOOLING
• 1ea Kitagawa B-208 Chuck
• 1ea Royal Accu-Length 5C Collet Nose
• 1ea Mazak Vertical Milling Head
• 1ea Mazak Horizontal Milling Head
• 2ea WTO 1.50” Boring Bar Holder
• 1ea Mazak Face Holder
• 4ea Mazak Turning Holder
• 1ea Mazak 40mm U-Drill Holder
• 2ea Mazak 1.50” Boring Bar Holder
MAZATROL SMOOTHC CNC
10.4” COLOR LCD
EIA/ISO PACKAGE FOR KY Mill TC
SMOOTH STANDARD SOFTWARE FOR THE LATHE (MILL)
LAN PORT
SD MEMORY I/F (1-PORT) + USB MEMORY I/F (1-PORT)
MILLING-SPINDLE SYNCHRONOUS TAPPING
Y-AXIS CONTROL
ABSOLUTE POSITIONING SYSTEM (N/A WITH SCALE FEEDBACK)
X,Y,Z PITCH ERROR COMPENSATION INPUT
HIGH POWER COOLANT (1.1 KW) 118 PSI/16 GPM
12 POSITION DRUM TURRET (BOLT ON TYPE)
STANDARD TOOLING PACKAGE
ROTARY-TOOL SPINDLE SPEED 4500 PRM (7.3 HP 34.7 FT-LBS 40%ED)
C-AXIS POSITIONING 0.0001 DEG. CONTOURING
MAIN SPINDLE MOTOR AC 15 KW (20 HP) 40% ED (123 FT-LBS)
SPINDLE SPEED 4500 RPM (A2-6 SPINDLE NOSE)
SPINDLE BORE DIA. 76MM (2.99”)
CHUCK OPEN/CLOSE CONFIRMATION
8” THRU-HOLE CHUCK B-208A6 WITH CYL. SR1453
PROGRAMMABLE TAILSTOCK DEAD QUILL/MT#5 LIVE CENTER
TAILSTOCK THRUST SELECT (STEPLESS)
ROLLER GUIDE
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
ELECTRICAL CONTROL BOX UL STANDARD (240V)
MULITTAP TRANSFORMER
RELOCATION DEVICE
AUTOMATIC PARTS CATCHER (3” DIA. X 4.7” X 5.5 LB. MAX)
CHIP CONVEYOR SIDE DISPOSAL (HINGE TYPE)
TOOL EYE (AUTOMATIC)
RE-THREADING FUNCTION
THREAD START POINT COMPENSATION
MAXIMUM PROGRAM SIZE: 8MB STD SIZE: 2MB
SIGNAL TOWER (3 COLORS, LIGHTS, SQUARE)
• 1EA KITAGAWA B-208 CHUCK
• 1EA ROYAL ACCU-LENGTH 5C COLLET NOSE
• 1EA MAZAK VERTICAL MILLING HEAD
• 1EA MAZAK HORIZONTAL MILLING HEAD
• 2EA WTO 1.50” BORING BAR HOLDER
• 1EA MAZAK FACE HOLDER
• 4EA MAZAK TURNING HOLDER
• 1EA MAZAK 40MM U-DRILL HOLDER
• 2EA MAZAK 1.50” BORING BAR HOLDER
TOOLING
• 1ea Kitagawa B-208 Chuck
• 1ea Royal Accu-Length 5C Collet Nose
• 1ea Mazak Vertical Milling Head
• 1ea Mazak Horizontal Milling Head
• 2ea WTO 1.50” Boring Bar Holder
• 1ea Mazak Face Holder
• 4ea Mazak Turning Holder
• 1ea Mazak 40mm U-Drill Holder
• 2ea Mazak 1.50” Boring Bar Holder
Imperial
| Maximum Swing | 27.4" |
| Max Turning Diameter | 8.35" |
| Main Spindle Bore/Max Bar Capacity | 2.99"/ 2.5" |
| Tail Stock/Sub Spindle | Tail Stock |
| X-Axis Travel (X1, X2, X3) | 8 |
| Z-Axis Travel (Z1, Z2, Z3) | 23.75 |
| Y-Axis Travel (Y1, Y2, Y3) | 4 |
| C-Axis Indexing (1, 2) | .001 |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.99" |
| Main Spindle Maximum Bar Work | 2.5" |
| Main Spindle Speed | 4,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20/ 15 |
| Number of Turrets | 1 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Control | CNC (MAZATROL SMOOTH C) |
| Dimensions | 104.3 x 66.5 x 67.9 |
MAZATROL SMOOTHC CNC
10.4” COLOR LCD
EIA/ISO PACKAGE FOR KY Mill TC
SMOOTH STANDARD SOFTWARE FOR THE LATHE (MILL)
LAN PORT
SD MEMORY I/F (1-PORT) + USB MEMORY I/F (1-PORT)
MILLING-SPINDLE SYNCHRONOUS TAPPING
Y-AXIS CONTROL
ABSOLUTE POSITIONING SYSTEM (N/A WITH SCALE FEEDBACK)
X,Y,Z PITCH ERROR COMPENSATION INPUT
HIGH POWER COOLANT (1.1 KW) 118 PSI/16 GPM
12 POSITION DRUM TURRET (BOLT ON TYPE)
STANDARD TOOLING PACKAGE
ROTARY-TOOL SPINDLE SPEED 4500 PRM (7.3 HP 34.7 FT-LBS 40%ED)
C-AXIS POSITIONING 0.0001 DEG. CONTOURING
MAIN SPINDLE MOTOR AC 15 KW (20 HP) 40% ED (123 FT-LBS)
SPINDLE SPEED 4500 RPM (A2-6 SPINDLE NOSE)
SPINDLE BORE DIA. 76MM (2.99”)
CHUCK OPEN/CLOSE CONFIRMATION
8” THRU-HOLE CHUCK B-208A6 WITH CYL. SR1453
PROGRAMMABLE TAILSTOCK DEAD QUILL/MT#5 LIVE CENTER
TAILSTOCK THRUST SELECT (STEPLESS)
ROLLER GUIDE
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
ELECTRICAL CONTROL BOX UL STANDARD (240V)
MULITTAP TRANSFORMER
RELOCATION DEVICE
AUTOMATIC PARTS CATCHER (3” DIA. X 4.7” X 5.5 LB. MAX)
CHIP CONVEYOR SIDE DISPOSAL (HINGE TYPE)
TOOL EYE (AUTOMATIC)
RE-THREADING FUNCTION
THREAD START POINT COMPENSATION
MAXIMUM PROGRAM SIZE: 8MB STD SIZE: 2MB
SIGNAL TOWER (3 COLORS, LIGHTS, SQUARE)
• 1EA KITAGAWA B-208 CHUCK
• 1EA ROYAL ACCU-LENGTH 5C COLLET NOSE
• 1EA MAZAK VERTICAL MILLING HEAD
• 1EA MAZAK HORIZONTAL MILLING HEAD
• 2EA WTO 1.50” BORING BAR HOLDER
• 1EA MAZAK FACE HOLDER
• 4EA MAZAK TURNING HOLDER
• 1EA MAZAK 40MM U-DRILL HOLDER
• 2EA MAZAK 1.50” BORING BAR HOLDER
