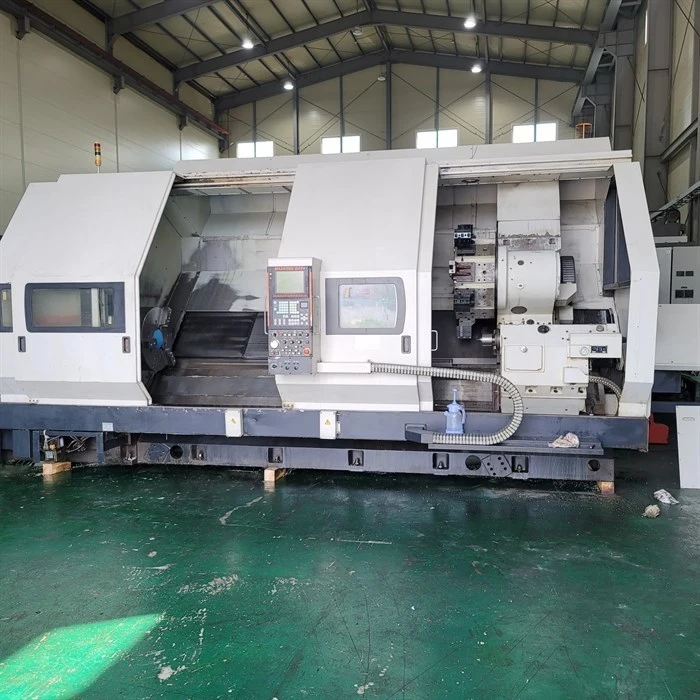

MAZAK SLANT TURN 80NR 3000 CNC TURNING CENTER

MAZAK SLANT TURN 80NR 3000 CNC TURNING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MAZAK
Model:
SLANT TURN 80NR
Year:
2007
Stock #:
210294
Status:
For Sale

Description

THIS SLANT TURN 80N HAS 120" CENTERS, FUSION 640T, TOOL PRESETTER, 600 MACRO VARIABLES, EIA/ ISO, AND CHIP CONVEYOR.

Max. Swing42.13"1,070.1 mm
Max Turning Diameter32.28"819.91 mm
Spindle Bore/Max Bar Capacity6.54"/ 4.5"6.54"/ 4.5"
Z Travel120.28"3,055.1 mm
X Travel27.5"698.5 mm
Machining Length120.28"3,055.1 mm
Chuck Size24"609.6 mm
Spindle Motor80 hp
Spindle Speeds (RPM)10001000
Spindle Bore6.54 in
Max. Bar Capacity4.5"114.3 mm
Turret Tool Positions1010
TailstockYesYes
Chip ConveyorYesYes
ControlCNC (MAZATROL FUSION 640T)CNC (MAZATROL FUSION 640T)
Weight39,690 LBS.39,690 LBS.

RAPID TRAVERSE RATES X1, X2 472 IPM
RAPID TRAVERSE RATES Z1, Z2 550 IPM
TAILSTOCK QUILL DIAMETER 7.09"
TAILSTOCK TAPER MT 6
TAILSTOCK QUILL TRAVEL 6.30
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 110.63"

MAZATROL FUSION 640T CONTROL
600 MACRO VARIABLES
BACKGROUND PATH CHECK
CHIP CONVEYOR
DIRECT DRAWING SIZE INPUT
EIA COORDIANTE ROTATION
EIA HELICAL INTERPOLATION
EIA HELICAL TAP
EIA/ISO
POLAR COORDINATE INPUT
TOOL PRESETTER USER MACRO
USER MACRO INTERRUPT WORK COORDINATE SELECT
