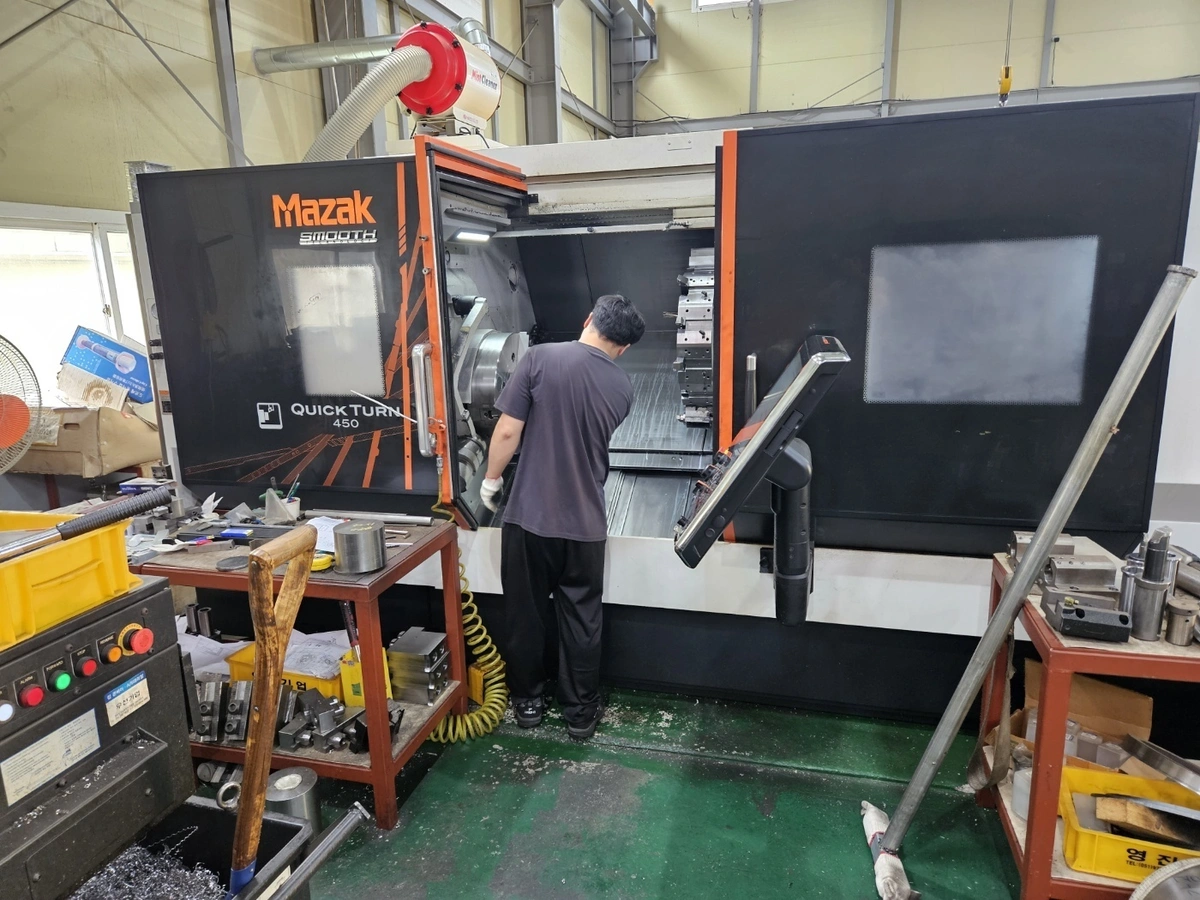

2019 MAZAK QTN 450-II/ 80" WITH STEADY REST/ SMOOTH G
Have one to sell?
ConditionUsed
1 available
THIS 2019 MAZAK QTN 450-II/ 80" MACHINE HAS A SMOOTH G CONTROL, SMW K3-MSW STEADY REST, 21" HYDRAULIC CHUCK, TOOL PRESETTER AND CHIP CONVEYOR.
MAZATROL SMOOTH G
19" COLOR LCD (TOUCH SCREEN)
SMW K3-MSW STEADY REST
21" HYDRAULIC CHUCK
SPINDLE ORIENTATION
TOOL PRESETTER (ATLM)
ROBOT INTERFACE
CHUCK AIR BLAST
HIGH PERFORMANCE B (2000U
COOLANT TEMP CONTROL SYS (WATER SOLUBLE)
HIGH POWER COOLANT 1.1KW (1.2KW FOR COVER)
PREP GP2000 MIST COLLECT W/P&DUCT/ 2000U
CHIP CONVEYOR
CHIP BUCKET (SWIN TYPE)
MAZAK API
MTCONNECT ADAPTER
HIGH/ LOW CHUCK PRESSURE SYSTEM
THIS 2019 MAZAK QTN 450-II/ 80" MACHINE HAS A SMOOTH G CONTROL, SMW K3-MSW STEADY REST, 21" HYDRAULIC CHUCK, TOOL PRESETTER AND CHIP CONVEYOR.
Imperial
| Max. Swing | 33.26" |
| Max Turning Diameter | 22.8" |
| Spindle Bore/Max Bar Capacity | 7.28"/ 5.3" |
| Z Travel | 83.5" |
| X Travel | 12.6" |
| Machining Length | 83.5" |
| Chuck Size | 21" |
| Chuck Type | Hydraullic |
| Spindle Motor | 40 hp |
| Spindle Speeds (RPM) | 2000 |
| Spindle Bore/Bar Capacity | 7.28 in |
| Max. Bar Capacity | 5.3" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Steady Rest | Yes |
| Rear Chuck Prep | Yes |
| Rear Chuck | No |
| Control | CNC (MAZATROL SMOOTH G) |
| Weight | 25,910 LBS |
MAZATROL SMOOTH G
19" COLOR LCD (TOUCH SCREEN)
SMW K3-MSW STEADY REST
21" HYDRAULIC CHUCK
SPINDLE ORIENTATION
TOOL PRESETTER (ATLM)
ROBOT INTERFACE
CHUCK AIR BLAST
HIGH PERFORMANCE B (2000U
COOLANT TEMP CONTROL SYS (WATER SOLUBLE)
HIGH POWER COOLANT 1.1KW (1.2KW FOR COVER)
PREP GP2000 MIST COLLECT W/P&DUCT/ 2000U
CHIP CONVEYOR
CHIP BUCKET (SWIN TYPE)
MAZAK API
MTCONNECT ADAPTER
HIGH/ LOW CHUCK PRESSURE SYSTEM
