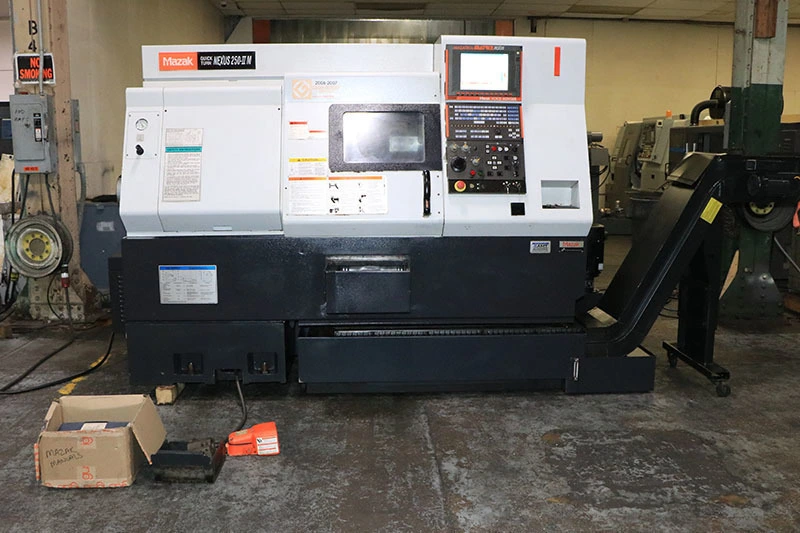

MAZAK QTN 250-II M
Have one to sell?
ConditionUsed
1 available
THIS QTN 250M HAS A MATRIX CONTROL, 10" HYDRAULIC AND MILLING, PARTS CATCHER, PROGRAMMABLE TAILSTOCK AND CHIP CONVEYOR.
SPECIFICATIONS:
SWING OVER BED 26.5"
TURNING DIAMETER, SHAFT DIA 14.75"
MACHINING LENGTH 19"
DISTANCE BETWEEN CENTERS 19.9"
CHUCK SIZE ROYAL COLLET CHUCK QG-80
10" HYDRAULIC CHUCK
SPINDLE NOSE A2-8
SPINDLE BORE DIAMETER 3.4"
SPINDLE BAR CAPACITY 3.0"
SPINDLE SPEEDS 4000 RPM
SPINDLE HORSEPOWE 30 HP
X - AXIS TRAVEL 9"
Z - AXIS TRAVEL 22.75"
C - AXIS TRAVEL .001 DEGREE
RAPID TRAVERSE RATES 1181 IPM
RAPID TRAVERSE RATES 1299 IPM
TURRET CONFIGURATION 12 POSITIONS
TURRET ROTARY TOOL SPEED 4500 RPM
TURRET ROTARY TOOL HORSE POWER 7.5 HP
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 21.75"
MACHINE WEIGHT 14,900 LBS
MAZAK MATRIX NEXUS CNC CONTROL
CHIP CONVEYOR
PARTS CATCHER
PROGRAMMABLE TAILSTOCK
THIS QTN 250M HAS A MATRIX CONTROL, 10" HYDRAULIC AND MILLING, PARTS CATCHER, PROGRAMMABLE TAILSTOCK AND CHIP CONVEYOR.
Imperial
| Maximum Swing | 26.5" |
| Max Turning Diameter | 14.75" |
| Main Spindle Bore/Max Bar Capacity | 3.46"/ 3" |
| Tail Stock/Sub Spindle | Programmable Tailstock |
| Distance Between Centers | 19.9" |
| Maximum Cutting Length | 19" |
| X-Axis Travel (X1, X2, X3) | 9 |
| Z-Axis Travel (Z1, Z2, Z3) | 22.75 |
| C-Axis Indexing (1, 2) | 0.001 DEGREE |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.46" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 7.0 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Number of Available Live Tool Holders | 3 |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Weight | 14,900 LBS |
SPECIFICATIONS:
SWING OVER BED 26.5"
TURNING DIAMETER, SHAFT DIA 14.75"
MACHINING LENGTH 19"
DISTANCE BETWEEN CENTERS 19.9"
CHUCK SIZE ROYAL COLLET CHUCK QG-80
10" HYDRAULIC CHUCK
SPINDLE NOSE A2-8
SPINDLE BORE DIAMETER 3.4"
SPINDLE BAR CAPACITY 3.0"
SPINDLE SPEEDS 4000 RPM
SPINDLE HORSEPOWE 30 HP
X - AXIS TRAVEL 9"
Z - AXIS TRAVEL 22.75"
C - AXIS TRAVEL .001 DEGREE
RAPID TRAVERSE RATES 1181 IPM
RAPID TRAVERSE RATES 1299 IPM
TURRET CONFIGURATION 12 POSITIONS
TURRET ROTARY TOOL SPEED 4500 RPM
TURRET ROTARY TOOL HORSE POWER 7.5 HP
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 21.75"
MACHINE WEIGHT 14,900 LBS
MAZAK MATRIX NEXUS CNC CONTROL
CHIP CONVEYOR
PARTS CATCHER
PROGRAMMABLE TAILSTOCK
