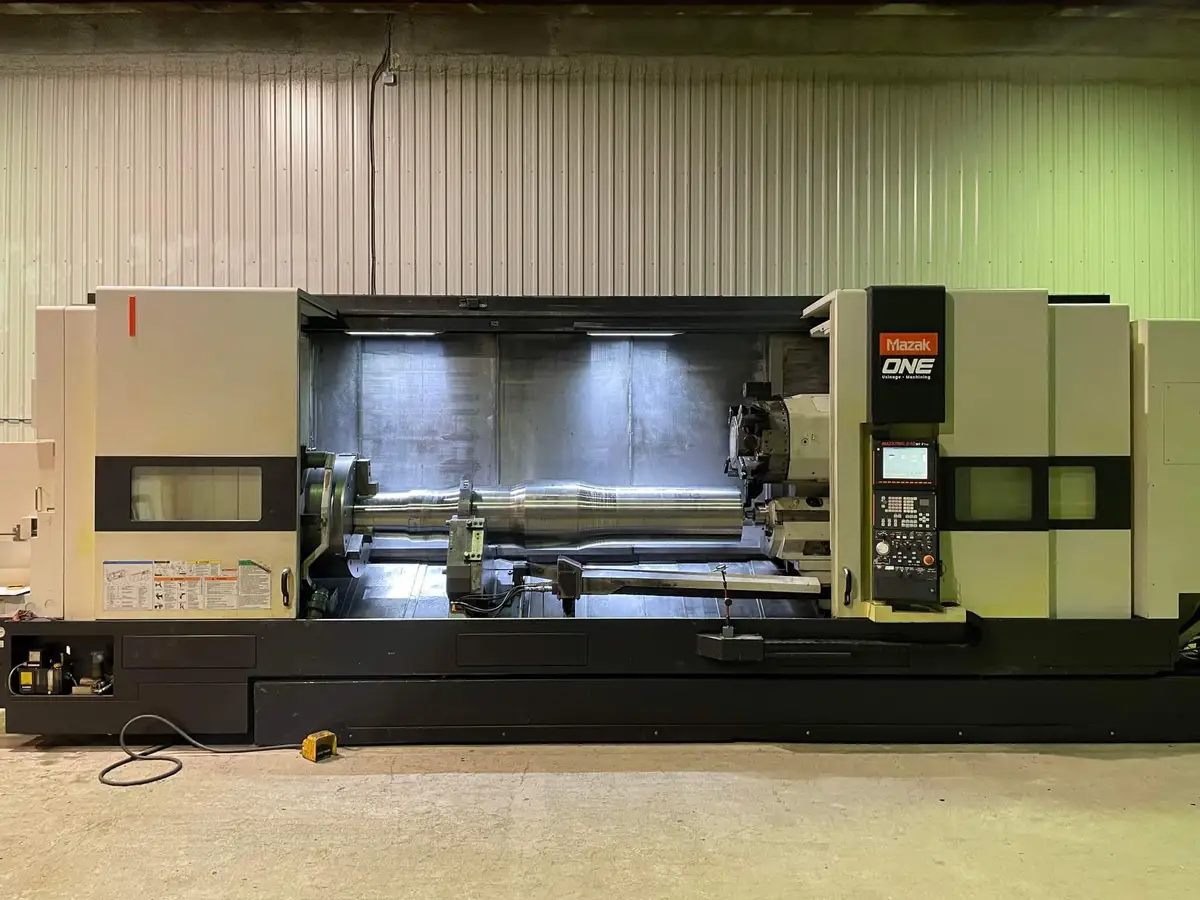

MAZAK CYBERTECH TURN 5500M /120" WITH STEADY REST
Have one to sell?
ConditionUsed
1 available
THIS CYBERTECH 5500M HAS 120" CENTERS, FUSION 640MT CONTROL, SMW STEADY REST, AND 213 PSI COOLANT THRU.
MAZATROL PC-FUSION-CNC 640MT PRO CONTROL
N-EIA/ISO OPTION PACKAGE
12 .1" COLOR LCD
MILLING-SPINDLE SYNCHRONOUS TAPPING
PCMCIA I/F (2-SLOT, CARDBUS)
3.5" FDD UNIT
NETWORK INTERFACE (FOR LAN & MODEM)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
HIGH-POWER COOLANT (2.2KW) 213 PSI/ 2.5 GPM FOUNDATION KIT(PLATES)
12 POSITION DRUM TURRET
ROTARY-TOOL SPINDLE SPEED 3000 RPM
MAIN SPINDLE MOTOR AC 45KW(60HP)
SPINDLE SPEED 500 RPM
C-AXIS 0.001 DEGREE INCR.
PROGRAMMABLE TAILSTOCK
SPINDLE BORE DIA.375MM (14.8")
CHIP CONVEYOR 3000U(12:)
SIDE HINGE TYPE W/LBB
MULTITAP TRANSFORMER MACHINE ARRANGED 230-460V
WINDOWS 2000 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
ABSOLUTE POSITIONING SYS (N/A WITH S/F)
PREPARTION FOR REAR MOUNTED MANUAL CHUCH (33.46" MAX DIA)
LONG BORING BAR STOCKER (2-BAR) N/A FOR 2000U (80")
LONG BORING BAR HOLDER WITHOUT BAR 80MM ID FOR LBB STOCKER
TOOL EYE (MANUAL) FOR 34" CHUCK
PREP ONLY SMWK6 SINGLE/AUTO W/FLUSH COOLANT
EXTENDED TAILSTOCK
RELOCATION DEVICE
RE-THREADING FUNCTION
THREAD START POINT COMPENSATION
SWM STEADY REST K6-Z HEAD INSTALLED
SCHUNK TB850 EXTENDED STROKE AIR CHUCK PACKAGE INSTALLED FRONT MOUNT
ROTA CLASSIC P800 4-JAW INDEPENDENT MANUAL CHUCK FOR REAR MOUNT
CSA PREPARATION
THIS CYBERTECH 5500M HAS 120" CENTERS, FUSION 640MT CONTROL, SMW STEADY REST, AND 213 PSI COOLANT THRU.
Imperial
| Maximum Swing | 36.02" |
| Max Turning Diameter | 31.9" |
| Main Spindle Bore/Max Bar Capacity | 14.76"/ 14.76" |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 27.5" |
| Maximum Cutting Length | 120" |
| X-Axis Travel (X1, X2, X3) | 21.26 |
| Z-Axis Travel (Z1, Z2, Z3) | 123.23 |
| C-Axis Indexing (1, 2) | .001 |
| Main Spindle Chuck Size | 33.5" |
| Main Spindle Chuck Type | Air |
| Main Spindle Bore Diameter | 14.76" |
| Main Spindle Maximum Bar Work | 14.76" |
| Main Spindle Speed | 500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 50/ 60 |
| Rear Chuck Prep | Yes |
| Rear Chuck | Yes |
| Rear Chuck Diameter | 0" |
| Rear Chuck Type | Manual |
| Turret Tool Positions 1, 2 | 12 |
| B Axis Rotary Tool Spindle Speed | 3000 rpm |
| B-Axis Rotary Tool Spindle Horsepower | 15 hp |
| Long Boring Bar Holder | Yes |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Rapid Traverse, X-Axis | 945 |
| Rapid Traverse, Z-Axis | 1181 |
| Control | CNC (MAZATROL FUSION 640MT PRO) |
| Dimensions | 287.99" x 143.03" x 112.99" |
MAZATROL PC-FUSION-CNC 640MT PRO CONTROL
N-EIA/ISO OPTION PACKAGE
12 .1" COLOR LCD
MILLING-SPINDLE SYNCHRONOUS TAPPING
PCMCIA I/F (2-SLOT, CARDBUS)
3.5" FDD UNIT
NETWORK INTERFACE (FOR LAN & MODEM)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
HIGH-POWER COOLANT (2.2KW) 213 PSI/ 2.5 GPM FOUNDATION KIT(PLATES)
12 POSITION DRUM TURRET
ROTARY-TOOL SPINDLE SPEED 3000 RPM
MAIN SPINDLE MOTOR AC 45KW(60HP)
SPINDLE SPEED 500 RPM
C-AXIS 0.001 DEGREE INCR.
PROGRAMMABLE TAILSTOCK
SPINDLE BORE DIA.375MM (14.8")
CHIP CONVEYOR 3000U(12:)
SIDE HINGE TYPE W/LBB
MULTITAP TRANSFORMER MACHINE ARRANGED 230-460V
WINDOWS 2000 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
ABSOLUTE POSITIONING SYS (N/A WITH S/F)
PREPARTION FOR REAR MOUNTED MANUAL CHUCH (33.46" MAX DIA)
LONG BORING BAR STOCKER (2-BAR) N/A FOR 2000U (80")
LONG BORING BAR HOLDER WITHOUT BAR 80MM ID FOR LBB STOCKER
TOOL EYE (MANUAL) FOR 34" CHUCK
PREP ONLY SMWK6 SINGLE/AUTO W/FLUSH COOLANT
EXTENDED TAILSTOCK
RELOCATION DEVICE
RE-THREADING FUNCTION
THREAD START POINT COMPENSATION
SWM STEADY REST K6-Z HEAD INSTALLED
SCHUNK TB850 EXTENDED STROKE AIR CHUCK PACKAGE INSTALLED FRONT MOUNT
ROTA CLASSIC P800 4-JAW INDEPENDENT MANUAL CHUCK FOR REAR MOUNT
CSA PREPARATION
