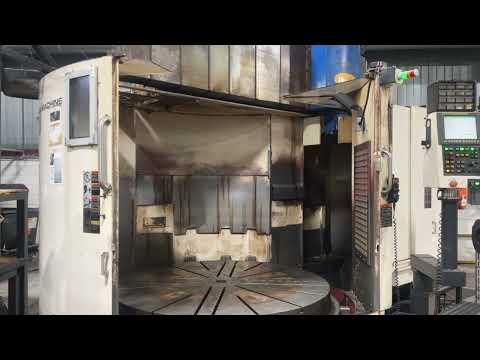

TOSHIBA TUE 200 WITH ROTARY TABLE
Have one to sell?
ConditionUsed
1 available
THIS TOSHIBA TUE 200 HAS A 90" SWING, 33,000 LB TABLE LOAD CAPACITY, 240 RPM ROTARY TABLE, 12 POSITION ATC COOLANT SYSTEM, CHIP CONVEYOR AND FANUC 0i-TD CONTROL.
90.55" SWING
78.74" TABLE DIAMETER
67.71" MAX CUTTING HEIGHT
35.4" VERTICAL TRAVEL OF RAM
41" VERTICAL TRAVEL OF CROSS RAIL
393.7" RAPID TRAVERSE OF RAILHEAD
1-200 RPM TABLE SPEEDS INF. VARIABLE, 2-SPEED
33,000 LB TABLE LOAD CAPACITY
240 RPM ROTARY TABLE SPEED
FANUC 0I-TD CONTROL
COOLANT SYSTEM
CHIP CONVEYOR.
THIS TOSHIBA TUE 200 HAS A 90" SWING, 33,000 LB TABLE LOAD CAPACITY, 240 RPM ROTARY TABLE, 12 POSITION ATC COOLANT SYSTEM, CHIP CONVEYOR AND FANUC 0i-TD CONTROL.
Imperial
| Table Dia | 78.74" |
| Maximum Swing | 90.55" |
| Maximum Turning Height | 67.7 |
| Table Weight Capacity | 33,000 lb |
| Vertical Travel of Ram, Z-Axis | 41" |
| Horizontal Railhead Travel, X-Axis | 67.71 |
| Cross Rail Vertical Travel | 41" |
| Main Table Motor | 60 |
| Automatic Tool Changer | 12 |
| Control | CNC (FANUC 0i-TD) |
| Weight | 47,840 Lbs. |
90.55" SWING
78.74" TABLE DIAMETER
67.71" MAX CUTTING HEIGHT
35.4" VERTICAL TRAVEL OF RAM
41" VERTICAL TRAVEL OF CROSS RAIL
393.7" RAPID TRAVERSE OF RAILHEAD
1-200 RPM TABLE SPEEDS INF. VARIABLE, 2-SPEED
33,000 LB TABLE LOAD CAPACITY
240 RPM ROTARY TABLE SPEED
FANUC 0I-TD CONTROL
COOLANT SYSTEM
CHIP CONVEYOR.
