TWINHORN VE-1500L3
Have one to sell?
ConditionUsed
1 available

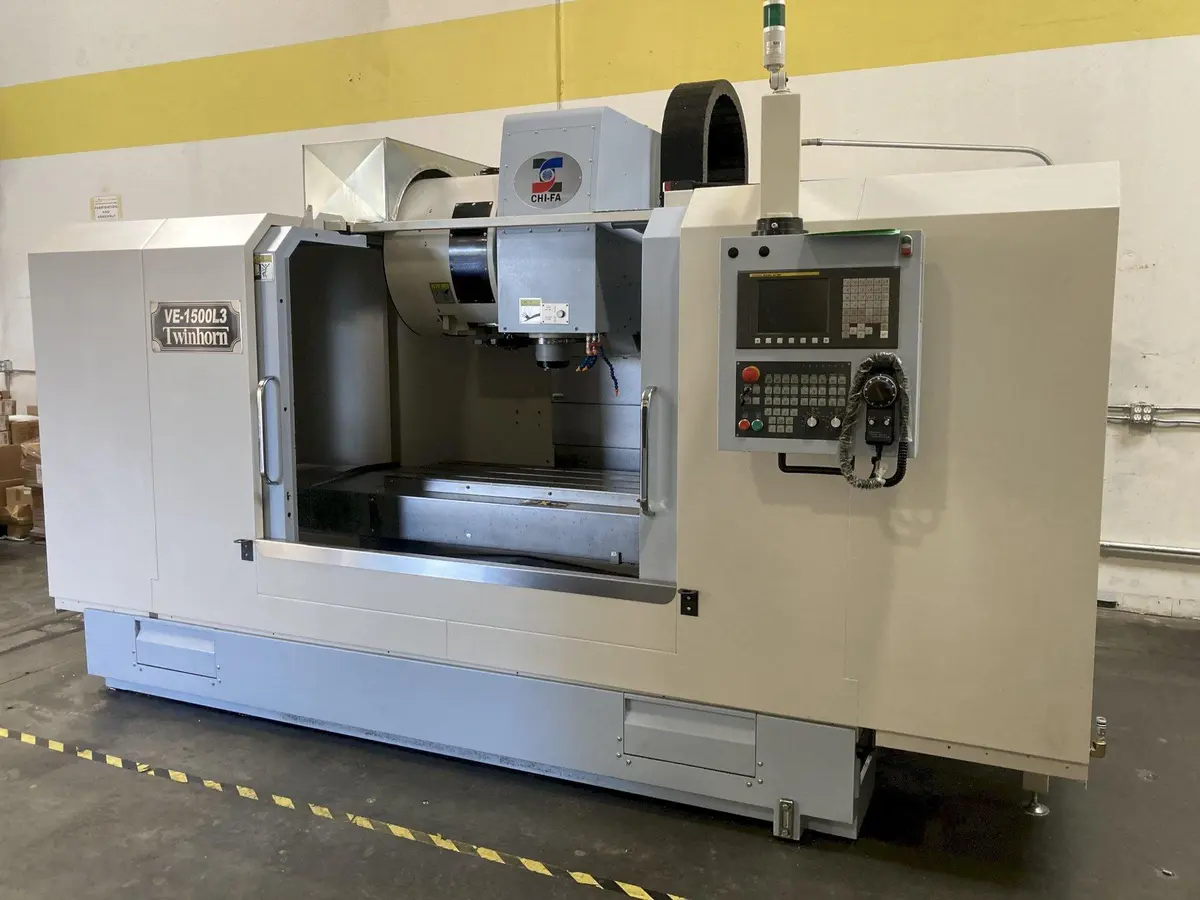

2020 TWINHORN VE-1500L3 VERTICAL MACHINING CENTER WITH FANUC OI-MF CONTROL, TRAVELS 59"X20" X20", 8000 RPM, 24 TOOL ARM TYPE ATC, and 4TH AXIS COMPLETE WITH MANUAL TAILSTOCK
SPINDLE NOSE TO TABLE SURFACE: 4.72 - 24.80 IN
SPINDLE CENTER TO Z AXIS RAIL SURFACE: 24.68 IN
Z AXIS RAIL SURFACE TO TABLE CENTER: 13.89 - 33.97 IN
X/Y AXES RAPID FEED: 944.88 IPM
Z-AXIS RAPID FEED: 944.88 IPM
CUTTING FEED: 393.70 IPM
BALLSCREW DIAMETER & PITCH: D40 X P12
MAX. PERMISSIBLE LOADING: 1,322.77 LBS.
T-SLOT NUMBER: 3
PITCH/T-SLOT WIDTH: 5.90 / 0.70 IN
SPINDLE DRIVEN METHOD: BELT DRIVEN
SPINDLE MOTOR: (F):11/15KW (S1-CONT. /S2 -15MIN)
(M):7.5/11KW(S1-CONT./S2-30MIN)
SPINDLE OD: 2.55 IN
MAX. TOOL WEIGHT: 15.43 LBS.
MAX. TOOL DIAMETER (WITH ADJ.TOOL/WITHOUT ADJ. TOOL): 3.14/ 4.91 IN
MAX. TOOL LENGTH: 11.81 IN
POSITIONING ACCURACY: ±0.00019 IN/11.81 IN
REPEATABLE ACCURACY: ±0.00011 IN
REQUIRED AIR PRESSURE: 200 L.MIN
FANUC OI-MF CONTROL
24 TOOL ARM TYPE ATC
LINEAR ROLLER ON X, Y & Z AXIS
COOLANT THRU SPINDLE SYSTEM (300 PSI SYSTEM)
CHAIN TYPE CHIP CONVEYOR & CART,
4TH AXIS COMPLETE WITH MANUAL TAILSTOCK
