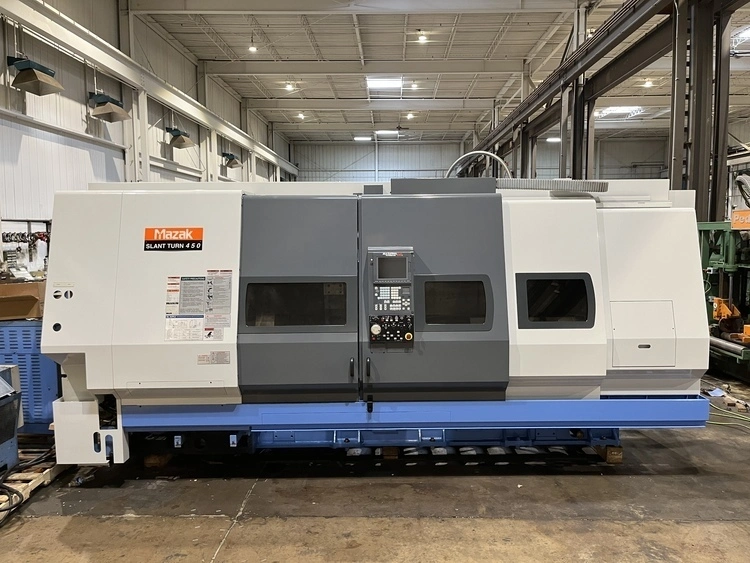

MAZAK SLANT TURN 450/2000 2 AXIS SLANT BED CNC LATHE (2001)

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

CNC LATHES 2 AXIS

Manufacturer:

Model:

SLANT TURN 450/2000

Condition:

Good

Year:

2001

Stock #:

210312

Status:

For Sale

THIS SLANT TURN 450/2000 HAS A MAZATROL PC FUSION 640T CONTROL, CHIP CONVEYOR, COOLANT, 24" 4-JAW CHUCK, TRANSFORMER, AND IS PREPPED FOR REAR CHUCK.

ImperialMetric

Max. Swing	28.12"	714.25 mm
Max Turning Diameter	24.4"	619.76 mm
Spindle Bore/Max Bar Capacity	10"	10"
Z Travel	78.74"	2,000 mm
X Travel	14.75"	374.65 mm
Machining Length	80"	2,032 mm
Distance Between Centers	78.74	78.74
Chuck Size	24"	609.6 mm
Spindle Motor	40 hp
Spindle Speeds (RPM)	1500	1500
Spindle Bore	10 in
Max. Bar Capacity	10"	254 mm
Turret Tool Positions	12	12
Tailstock	Yes	Yes
Chip Conveyor	Yes	Yes
Rear Chuck Prep	Yes	Yes
Control	CNC (MAZATROL FUSION 640T)	CNC (MAZATROL FUSION 640T)
Dimensions	268” X 82” X 100” (INCLUDING CHIP CONVEYOR)	268” X 82” X 100” (INCLUDING CHIP CONVEYOR)
Weight	25000	25000

MAZATROL PC FUSION 640T
CHIP CONVEYOR
COOLANT
20" 4 JAW CHUCK
TRANSFORMER
PREPPED FOR REAR CHUCK
