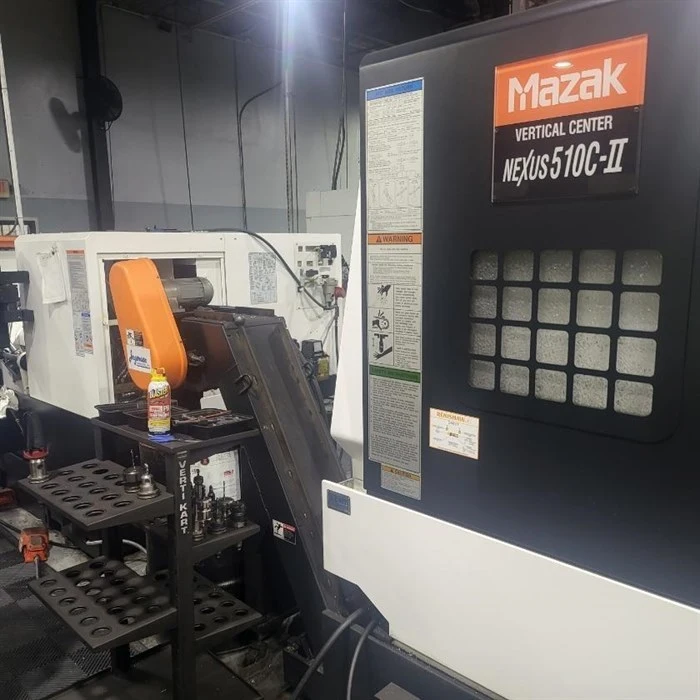

MAZAK VCN 510C-II

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MAZAK
Model:
VCN 510C-II
Condition:
Good
Year:
2013
Stock #:
210313
Status:
For Sale

Description

THIS 2013 VCN 510C-II HAS A CAT 40/ 12000 RPM SPINDLE, 30 STATION ATC, RENISHAW PART PROBE, ATLM AND CHIP CONVEYOR.

X Travel41.3"1,049 mm
Y Travel20.08"510.03 mm
Z Travel20.08"510.03 mm
Spindle Speed12,000 RPM12000 rpm
Tool Capacity (ATC)3030
Table Size (W)51.1"1,297.9 mm
Table Size (L)21.6"548.64 mm
Main Spindle Motor25 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top5.9" TO 25.98"5.9" TO 25.98"
Coolant Thru High PressureNoNo
Hi Pressure Coolant System0 psi
Part ProbeYesYes
Tool Probe/Auto Tool Length MeasurementYesYes
Rapid Traverse Rates: X Axis Y Axis Z Axis14171417
ControlCNC (MAZATROL MATRIX)CNC (MAZATROL MATRIX)

SPECIFICATIONS:
TABLE                  51.1” X 21.6”
TOOL CHANGER           30 TOOL SERVO DRIVEN MAGAZINE
SPINDLE                12,000 RPM
X AXIS TRAVELS         41.3”
Y AXIS TRAVELS         20.08”
Z AXIS TRAVELS         20.08”
SPINDLE MOTOR          25 HP
SPINDLE TAPER          CAT 40

MAZATROL MATRIX CNC CONTROL
ATLM
CHIP CONVEYOR
COMPARISON STOP, G54.1, SYNC. MILL TAPPING
EIA HELICAL TAP AND PATTERN CYCLES
EIA, SPIRAL, EIA 3D COMP.
EXT DATA I/O
PITCH ERROR COMP.
POLAR COORDINATES INPUT
RENISHAW PART PROBE
ROTATION, GEOMETRIC, SCALING
SHAPE COMP., THREAD, INVERSE TIME
TILTED WORK PLANE
VARIABLE 600 SETS
