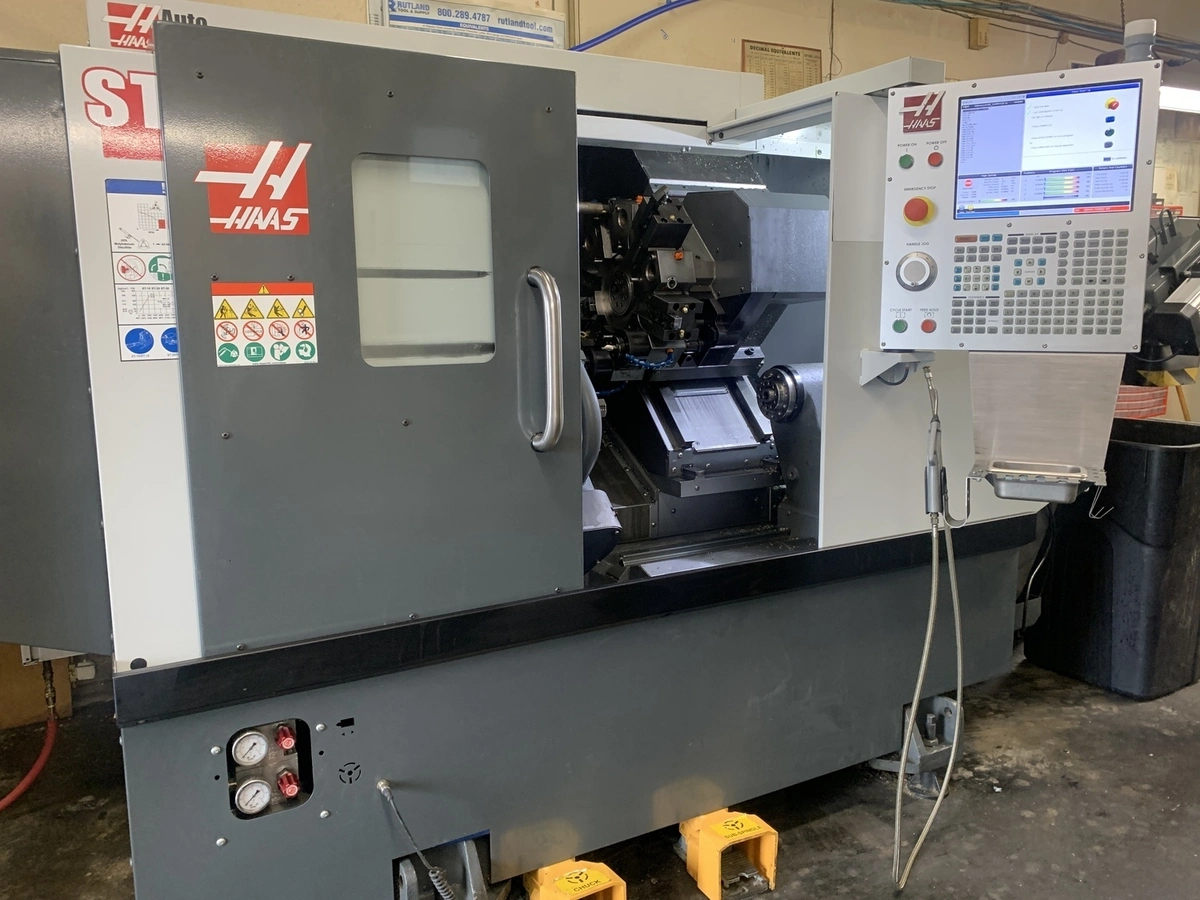

HAAS ST-15Y WITH 8" CHUCK AND LIVE TOOLING
CNC LATHES MULTI AXIS
A 2019 HAAS ST-15Y HAS RIGID TAPPING, M19 SPINDLE ORIENTATION, FINISHING SPINDLE, CHIP CONVEYOR, TOOL PRESETTER, SAMCHULLY HS 08 3 JAW CHUCK AND LIVE TOOL HOLDER PACKAGE (SEE PICTURES FOR LIVE HOLDERS)
| Maximum Swing | 16.5" |
| Max Turning Diameter | 11" |
| Main Spindle Bore/Max Bar Capacity | 3.5"/ 2.5" |
| Tail Stock/Sub Spindle | NO |
| Maximum Cutting Length | 16" |
| X-Axis Travel (X1, X2, X3) | 7.9 |
| Z-Axis Travel (Z1, Z2, Z3) | 16 |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 2" |
| C-Axis Indexing (1, 2) | 0.01 ° |
| Main Spindle Chuck Size | 8.3" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.5" |
| Main Spindle Maximum Bar Work | 2.5" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Control | CNC (HAAS) |
HAAS CNC CONTROL
MACROS
RIGID TAPPING
AUTO DOOR
M19 SPINDLE ORIENTATION
FINISHING SPINDLE
VPS EDITING
1GB MEMORY
CHIP CONVEYOR
TOOL PRESETTER
MH 208VI 3 JAW 8" CHUCK
SAMCHULLY HS 08 3 JAW CHUCK
TOOL HOLDER PACKAGE (SEE PICTURES FOR LIVE HOLDERS)
*CONSUMABLE TOOLING SHOWN ON TURRET NOT INCLUDED
Power On Time: 6585:29:04
Spindle On Time: 1867:31:29
Servo On Time: 4030:06:53
