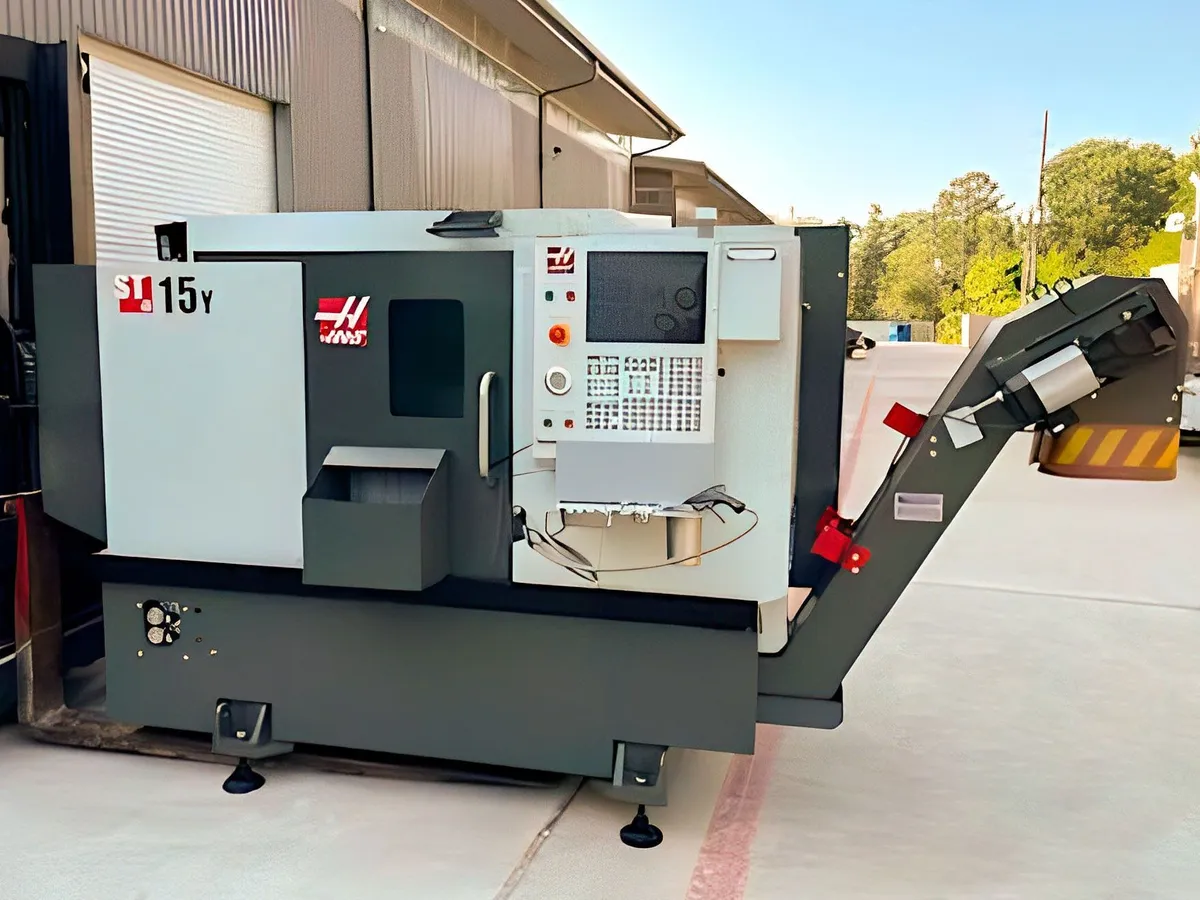

2022 HAAS ST-15Y WITH BARFEEDER AND TAILSTOCK
CNC LATHES MULTI AXIS
2022 HAAS ST-15Y HAS ALMOST ZERO HOURS - HAAS NextGen CNC Control, CHIP CONVEYOR, TOOL PRESETTER, MANUAL TAILSTOCK W/ HYDRAULIC QUILL, PARTS CATCHER, LIVE TOOLING, Y AXIS, HAAS V2 CNC BARFEEDER, AND 6000 RPM LIVE TOOL OPTION (UPGRADE PURCHASED) WITH LIVE TOOL MILLING MOTOR: 5 H.P.
| Maximum Swing | 25.5" |
| Max Turning Diameter | 16.5" |
| Main Spindle Bore/Max Bar Capacity | 2.5 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Cutting Length | 14" |
| X-Axis Travel (X1, X2, X3) | 7.88" |
| Z-Axis Travel (Z1, Z2, Z3) | 14" |
| Y-Axis Travel (Y1, Y2, Y3) | ± 2.0" |
| C-Axis Indexing (1, 2) | Full C-Axis on Main Spindle |
| Main Spindle Chuck Size | 8.3" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Maximum Bar Work | 2.5" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Control | CNC (HAAS NextGen) |
| Dimensions | 126" x 83" x 71" |
| Weight | 9,000 LBS |
HAAS NextGen CNC Control
CHIP CONVEYOR
TOOL PRESETTER
MANUAL TAILSTOCK W/ HYDRAULIC QUILL
BAR FEEDER
PARTS CATCHER
LIVE TOOLING
Y AXIS
HAAS V2 CNC BARFEED
6,000 RPM LIVE TOOL OPTION (UPGRADE PURCHASED)
LIVE TOOL MILLING MOTOR: 5 H.P.
