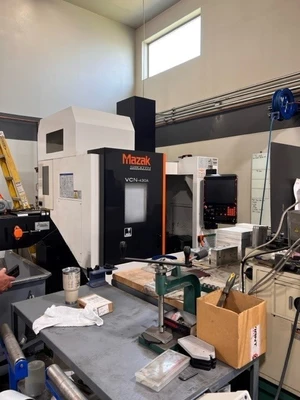

2018 MAZAK VCN 430A/ SMOOTH G CONTROL
MACHINING CENTERS, VERTICAL
2019 VCN 430A HAS A MAZATROL SMOOTHG CONTROL, CAT 40/ 15000 RPM SPINDLE, 30 STATION ATC,
4TH AXIS ROTARY TABLE, TAILSTOCK & CHUCK, 213 PSI CTS, DUAL PROBE, AIR-THRU SINDLE AND CHIP CONVEYOR.
| X Travel | 22.05" |
| Y Travel | 16.93" |
| Z Travel | 20" |
| Spindle Speed | 15000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 35" |
| Table Size (L) | 17" |
| Main Spindle Motor | 15 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 5.90" - 25.98" |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Control | CNC |
MAZATROL SMOOTH G CONTROL
19" COLOR LCD SCREEN
EIA/ ISO PACKAGE
SMOOTH STANDARD SOFTWARE FOR N/CUSB I/F (I-PORT
LAN PORT IN ELECTRICAL CABINET
SD MEMORY I/F (I-PORT) + USB I/F (I-PORT)
SYNCHRONIZED TAPPING
ABSOLUTE ENCODER SYSTEM
30 TOOL MAGAZINE (CAT 40)
INTELLIGENT SAFETY SHIELD
HI-PRESS COOLANT THRU SPINDLE - 15kGF/ 213 PSI
MAIN SPINDLE MOTOR AC 22kW/ 30HP
SPINDLE SPEED 15,000 RPM/ 30HP/ 10%ED OIL/ AIR
ROLLER GUIDE
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
TOTALLY ENCLOSED COVER
WORK LIGHT
35.4" X 16.93" TABLE WITH T-SLOTS
TRANSFORMER
RELOCATION DEVICE
WORKPIECE AIR-BLAST
AIR THRU SPINDLE WHILE RUNNING
CHIP CONVEYOR - LEFT SIDE
DUAL PROBING KIT OMP60/OTS AA W/EIA INSPECT PLUS
NIKKEN CNC 180 NA NC ROTARY TABLE PACKAGE
NIKKEN P-125S MANUAL TAILSTOCK
NIKKEN 6" MANUAL 3-JAW CHUCK
DISTRIBUTOR SUPPLIED ITEMS - TO BE CONFIRMED
