MAZAK QTN 200-II MY WITH BAR FEEDER, TAILSTOCK & PARTS CATCHER
CNC LATHES MULTI AXIS
.jpg)
.jpg)
.JPEG)
.jpg)
.jpg)
.JPEG)
.JPEG)
.JPEG)
.jpg)
.JPEG)
.jpg)
.JPEG)
.JPEG)
.JPEG)
.jpg)
.jpg)

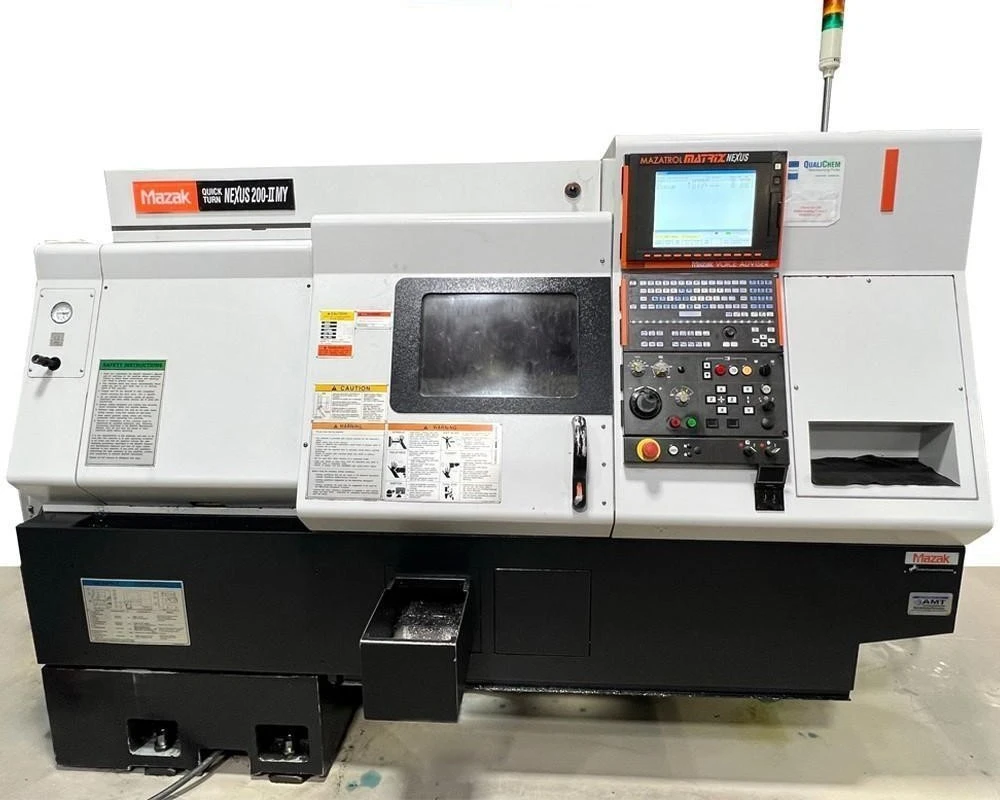

MAZAK QTN 200MY WITH MATRIX CONTROL, LNS BAR FEEDER, PROGRAMMABLE TAILSTOCK, PARTS CATCHER AND CHIP CONVEYOR.
| Maximum Swing | 26.8" |
| Max Turning Diameter | 14.76" |
| Main Spindle Bore/Max Bar Capacity | 3.0/ 2.6" |
| Tail Stock/Sub Spindle | TAILSTOCK |
| Maximum Swing Over Cross Slide | 23" |
| Maximum Cutting Length | 21.28" |
| X-Axis Travel (X1, X2, X3) | 9.0 |
| Z-Axis Travel (Z1, Z2, Z3) | 22.63 |
| Y-Axis Travel (Y1, Y2, Y3) | 4.0" ( +/- 2.0″) |
| C-Axis Indexing (1, 2) | 360° (0.001°) |
| Main Spindle Chuck Type | Collet |
| Main Spindle Maximum Bar Work | 2.6" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 7.5 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 827 |
| Rapid Traverse, Z-Axis | 1299 |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 106" x 75" x 79" |
| Weight | 12,500 lbs |
CUTTING FEED RATES: 787 IPM
TAILSTOCK BODY TRAVEL: 21.65″
TAILSTOCK TAPER: MT-5
TAILSTOCK QUILL DIA.: 4.33″
TAILSTOCK QUILL TRAVEL: 3.93″
MAZATROL MATRIX NEXUS CNC CONTROL
LNS BAR FEEDER
COLLET CHUCK (CAPABLE 8" CHUCK)
12-STATION LIVE TOOL TURRET
C & Y AXIS CAPABILITY
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
PART CATCHER
USB DRIVE
PCMCIA CARD SLOT
COOLANT SYSTEM
CHIP CONVEYOR
TRANSFORMER
FOOTSWITCH
