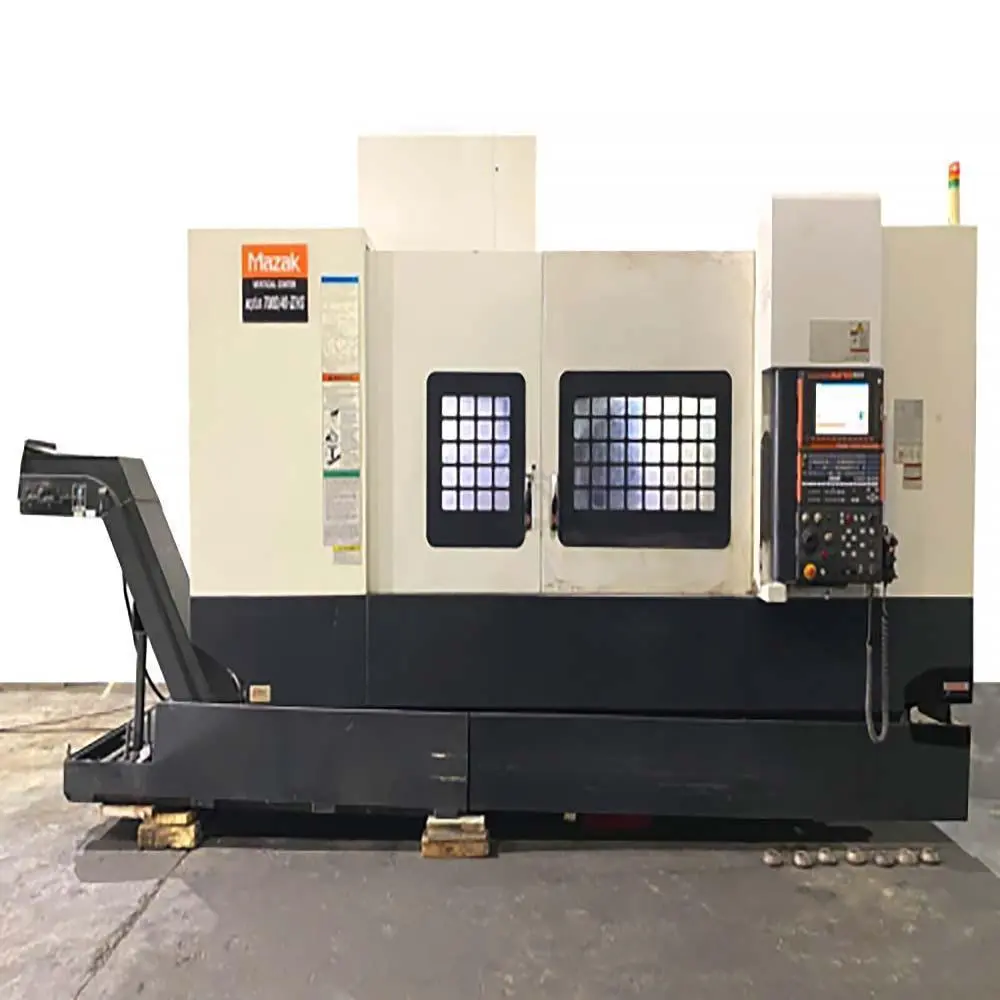

MAZAK VCN 700D/IIHS CNC VERTICAL MACHINING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MAZAK
Model:
VCN 700D/40IIHS
Condition:
Excellent
Year:
2009
Stock #:
210340
Status:
For Sale

Description

2009 MAZAK VCN 700D/IIHS IS A VERY NICE HIGH SPEED MACHINE. HAS A 18000 RPM SPINDLE, CT 40 TAPER, IT HAS A 30 STATION SIDE MOUNT TOOL CHANGER AND TRAVELS OF 60.2/ 27.6 /25.6.

X Travel60.2"1,529.1 mm
Y Travel27.6"701.04 mm
Z Travel25.6"650.24 mm
Spindle Speed18,000 RPM18000 rpm
Tool Capacity (ATC)3030
Table Size (W)27.6"701.04 mm
Table Size (L)68.5"1,739.9 mm
Main Spindle Motor35 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top7.87"-33.5"7.87"-33.5"
Rapid Traverse Rates: X Axis Y Axis Z Axis1183 IPM1183 IPM
Dimensions161.4" x 137.2" x 135.08" HIGH161.4" x 137.2" x 135.08" HIGH
Weight27,12027,120

MAZAK VCN 700D/40IIHS
2009

TABLE (WXL)           27.6" X 68.5"
MAX. WEIGHT ON TABLE  4410 LBS.
X-AXIS TRAVELS        60.2"
Y-AXIS TRAVELS        27.6"
Z-AXIS TRAVELS        25.6"
SPINDLE SPEED         18,000 RPM
MOTOR                 35-HP
TAPER                 CAT 40
X,Y,Z AXIS FEEDRATE   1183 IPM
TOOL CHANGER          30 SIDE MOUNT
APPROX. DIMENSIONS    161.4" X 137.2" X 135.08" HIGH
APPROX. WEIGHT        27,120 LBS.

Mazatrol Matrix CNC Control (12.1" Color LCD Display)
EIA/ISO Code Input Function
Roller Guide way Construction
Renishaw Probing System
High Speed Machining
35 HP High Torque Spindle
Through Spindle Coolant
30 Station Automatic tool changer
40 Taper Spindle
USB Drive
PCMCIA Card Slot
MPG Control
Rigid Tapping
Spindle Orientation
High Pressure Coolant System
Telescopic way covers
Chip Conveyor
Books and Manuals
