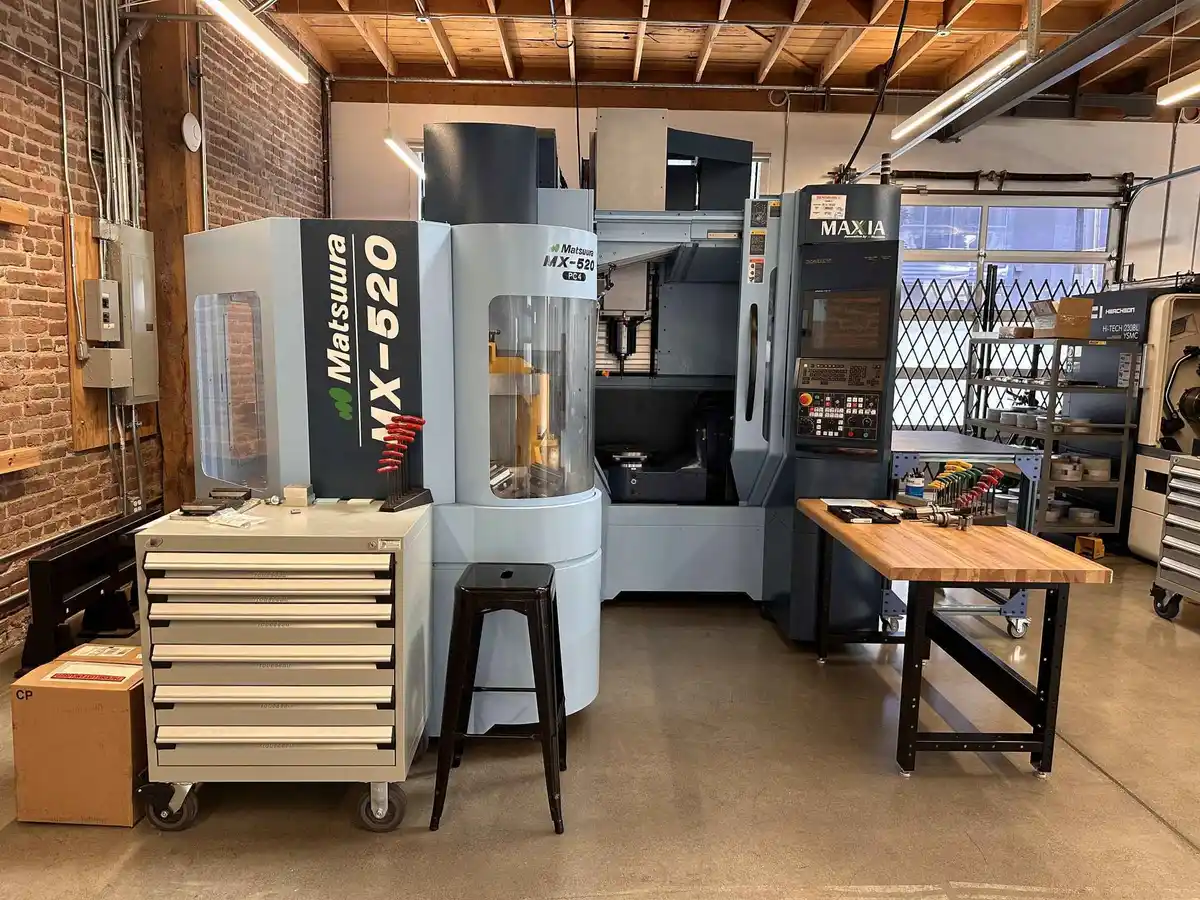

MATSUURA MX-520 PC4 5 AXIS VMC, 2021 – LOW HOURS, RAN TWO JOBS

SPINDLE OPTIONS 12,000 RPM HIGH-TORQUE
BIG + CAT#40 GREASE LUBRICATED SPINDLE
TOOL OPTIONS 90 TOOLCHAIN
4 PALLET CHANGER W/ INCH PALLETS
PC4 MANUAL PALLET ROTATION AT WORKSTATION
MACHINE OPTIONS
8 SETS OF EXTRA M-FUNCTIONS FOR 3RD PARTY OPTION INTEGRATION – INCLUDES RELAY BOARD
SCALE FEEDBACK FOR (X,Y, Z) AXIS/ HEIDENHAIN SCALE ROTARY SCALES ARE STANDARD
AIR BLOW FOR CHIP SWARF REMOVAL ENVIRONMENTAL THERMAL DISPLACEMENT COMPENSATION
3 COLOR PATROL LIGHT RED, YELLOW, GREEN
AIR-DRIVEN ROTARY WIPER ON OPERATOR WINDOW PROVISION FOR MIST SEPARATOR
WEEKLY TIMER ALLOWS FOR AUTOMATIC SHUT-DOWN & AUTO START-UP WITH SPINDLE WARM-UP
SOFTWARE OPTIONS
THE SPINDLE LOAD MONITORING FUNCTION ALLOWS AN OPERATOR TO TEACH REFERENCE TORQUE VALUES FOR THE FEED AND SPINDLE AXIS FOR A NEW TOOL. WHEN A TOOL REACHES A WARNING LEVEL THE OPERATOR IS NOTIFIED. IF THE TORQUE VALUES REACH ANOTHER LIMIT THE MACHINE IS HALTED.
TOOL PRE-CHECK FUNCTION THE CONTROL DETERMINES A LIST OF REQUIRED TOOLS FOR THE NEXT PALLET PROGRAM AND ENSURES THAT THE CORRECT TOOLS ARE AVAILABLE BEFORE BEGINNING TO CUT. 3D MODEL OF WORK ENVELOPE IN STL FORMAT EZ-5 W/ CALIBRATION BALL SPINDLE PROBE REQUIRED
SYNCHRO TIP + ORBITAL MACHINING FUNCTION CONVEYOR OPTIONS MOSNIC RD-3C CHIP CONVEYOR WITH DRUM FILTER FILTERS CHIPS DOWN TO 50 MICRONS IN SIZE
FANUC PACKAGES MMU VALUE PACKAGE O TOOL OFFSET PAIRS 999-PAIRS O ADDITION OF WORKPIECE COORDINATE SYSTEM 300-PAIRS O OPTIONAL BLOCK SKIP 9 O PROGRAM RESTART O COORDINATE SYSTEM ROTATION O TOOL LIFE MANAGEMENT O PART PROGRAM STORAGE SIZE 8 MEGABYTES O HIGH-SPEED SKIP O COMMON VARIABLE EXPANSION (#100-#199/ #500-#999)
HIGH SPEED/ HIGH PRECISION PACKAGE + 5 AXIS PACKAGE O IZ-2/150NF O NANO SMOOTHING 1 AND 2 O OPTIMAL TORQUE ACCELERATION & DECELERATION O DATA SERVER PACKAGE WITH ETHERNET CONNECTIVITY AND 1 GIGABYTE OF PROGRAM STORAGE O TOOL CENTER POINT CONTROL O 3D CUTTER COMPENSATION O TILTED WORKING PLANE COMMAND O TOOL POSTURE CONTROL BY TOOL CENTER POINT CONTROL O WORK SET-UP ERROR COMPENSATION O INVERSE TIME FEED
