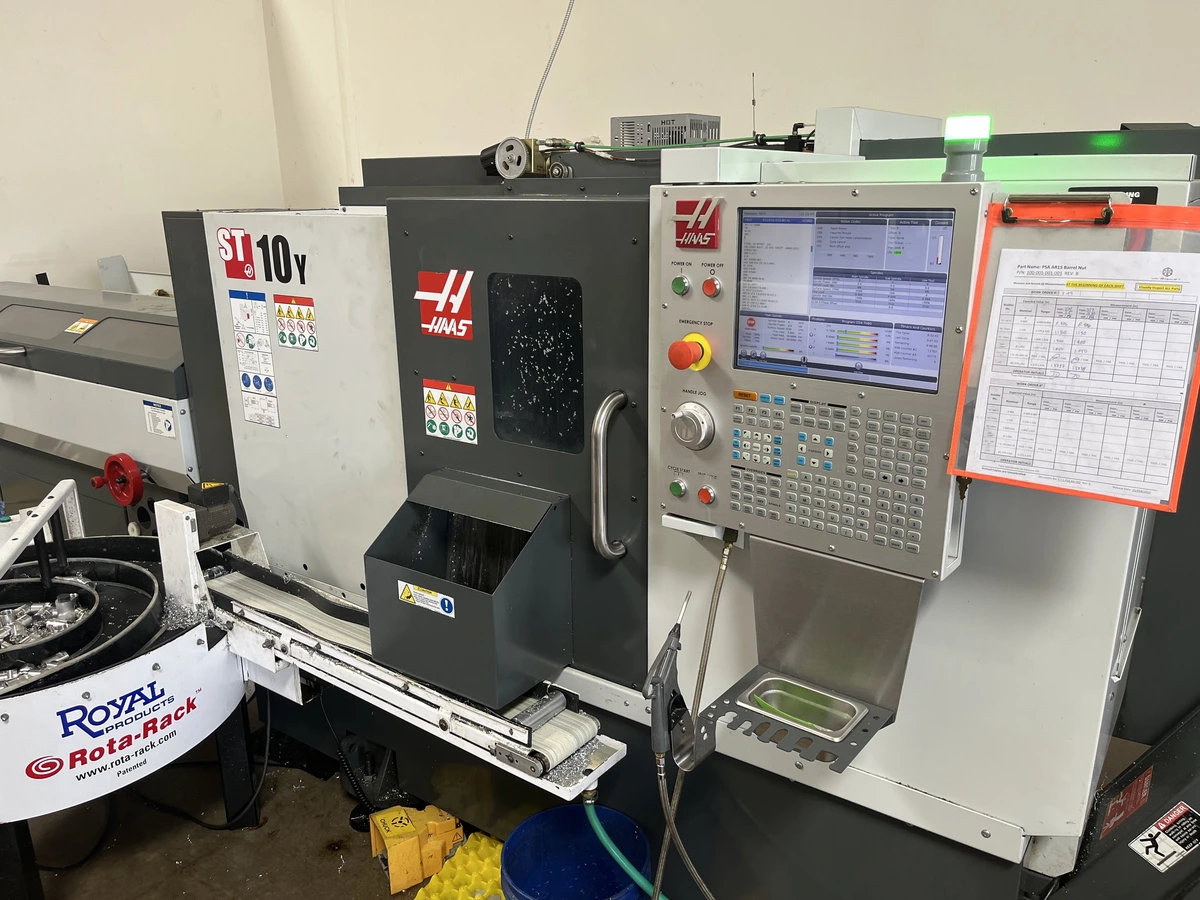

HAAS ST-10Y WITH LIVE MILLING, C AND Y AXIS AND BAR FEEDER
Have one to sell?
ConditionUsed
1 available
A 2019 HAAS ST-10Y, 6.5" 3-JAW HYDRAULIC CHUCK, 12 STATION TURRET, PARTS CATCHER, ROYAL ROTA-RACK, CHIP CONVEYOR AND BAR FEEDER.
A2-5 FINISHING SUB-SPINDLE
CNC CONTROL CABINET COOLER
PARTS CATCHER
TOOL PRESETTER
CHIP CONVEYOR
AUTO DOOR
BAR FEEDER
ROYAL ROTA-RACK
A 2019 HAAS ST-10Y, 6.5" 3-JAW HYDRAULIC CHUCK, 12 STATION TURRET, PARTS CATCHER, ROYAL ROTA-RACK, CHIP CONVEYOR AND BAR FEEDER.
Imperial
| Maximum Swing | 16.25" |
| Max Turning Diameter | 9" |
| Main Spindle Bore/Max Bar Capacity | 2.31"/ 1.75" |
| Maximum Swing Over Cross Slide | 16.25" |
| Distance Between Centers | 14" |
| Maximum Cutting Length | 16" |
| X-Axis Travel (X1, X2, X3) | 7.9 |
| Z-Axis Travel (Z1, Z2, Z3) | 16 |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 2" |
| C-Axis Indexing (1, 2) | FULL C-AXIS (.01 DEGREE) PROGRAMMABLE |
| Main Spindle Chuck Size | 6.5" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.31" |
| Main Spindle Maximum Bar Work | 1.75" |
| Main Spindle Speed | 6,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 15 |
| Sub Spindle/2nd Spindle Chuck Size | 0 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Control | CNC (HAAS) |
| Dimensions | 96.00" x 60.00" x 69.00" |
| Weight | 7500 LBS |
A2-5 FINISHING SUB-SPINDLE
CNC CONTROL CABINET COOLER
PARTS CATCHER
TOOL PRESETTER
CHIP CONVEYOR
AUTO DOOR
BAR FEEDER
ROYAL ROTA-RACK
