DOOSAN PUMA 400LC

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
DOOSAN
Model:
PUMA 400LC
Condition:
Good
Year:
2007
Stock #:
210386
Status:
For Sale

Description

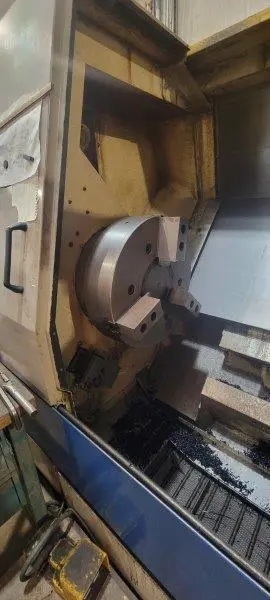

THIS DOOSAN PUMA 400LC CNC LATHE COMES WITH A 21" CHUCK, 6.5" BAR WORK, 80" CENTERS, FANUC 21i-TB CONTROL, STEADY REST AND TAILSTOCK.

Max. Swing30.3"769.62 mm
Max Turning Diameter21.7"551.18 mm
Spindle Bore/Max Bar Capacity7.1"/ 6.5"7.1"/ 6.5"
Z Travel84.8"2,153.9 mm
X Travel14.1"358.14 mm
Machining Length81.7"2,075.2 mm
Chuck Size18"457.2 mm
Chuck TypeHydraullicHydraullic
Spindle Motor50 hp
Spindle Speeds (RPM)15001500
Max. Bar Capacity6.5"165.1 mm
Turret Tool Positions1212
TailstockYesYes
Chip ConveyorYesYes
Steady RestYesYes
ControlCNCCNC
Dimensions211" X 86" X 92"211" X 86" X 92"
Weight23,100 LBS23,100 LBS

SPECIFICATIONS:
CHUCK SIZE 21"
MAX TURNING DIA 21.7"
MAX. MACHINING LENGTH 81.7"
BAR WORK DIA 6.5"
SPINDLE SPEED 1500 RPM
X-AXIS TRAVEL 14.25"
Z-AXIS TRAVEL 84.8"
TURRET TYPE 12 STATION
SPINDLE NOSE / BORE A2-11 / 7.12"
TAILSTOCK QUILL TAPER MT #6
TAILSTOCK QUILL TRAVEL 4.72"
SPINDLE MOTOR 50/40 HP
MACHINE DIMENSIONS LXWXH 211" X 86" X 92"
WEIGHT 23,100 LBS

FANUC CONTROL
18" 3-JAW CHUCK
CHIP CONVEYOR
TAILSTOCK
STEADY REST
