2008 MAZAK QTN 200MY-II
CNC LATHES MULTI AXIS.jpg)
.jpg)
.jpg)
.JPEG)
.JPEG)
.JPEG)
.JPEG)
.JPEG)
.jpg)
.JPEG)
.jpg)
.JPEG)
.jpg)
.jpg)
.jpg)
.JPEG)
.jpg)
.jpg)
.jpg)
.jpg)

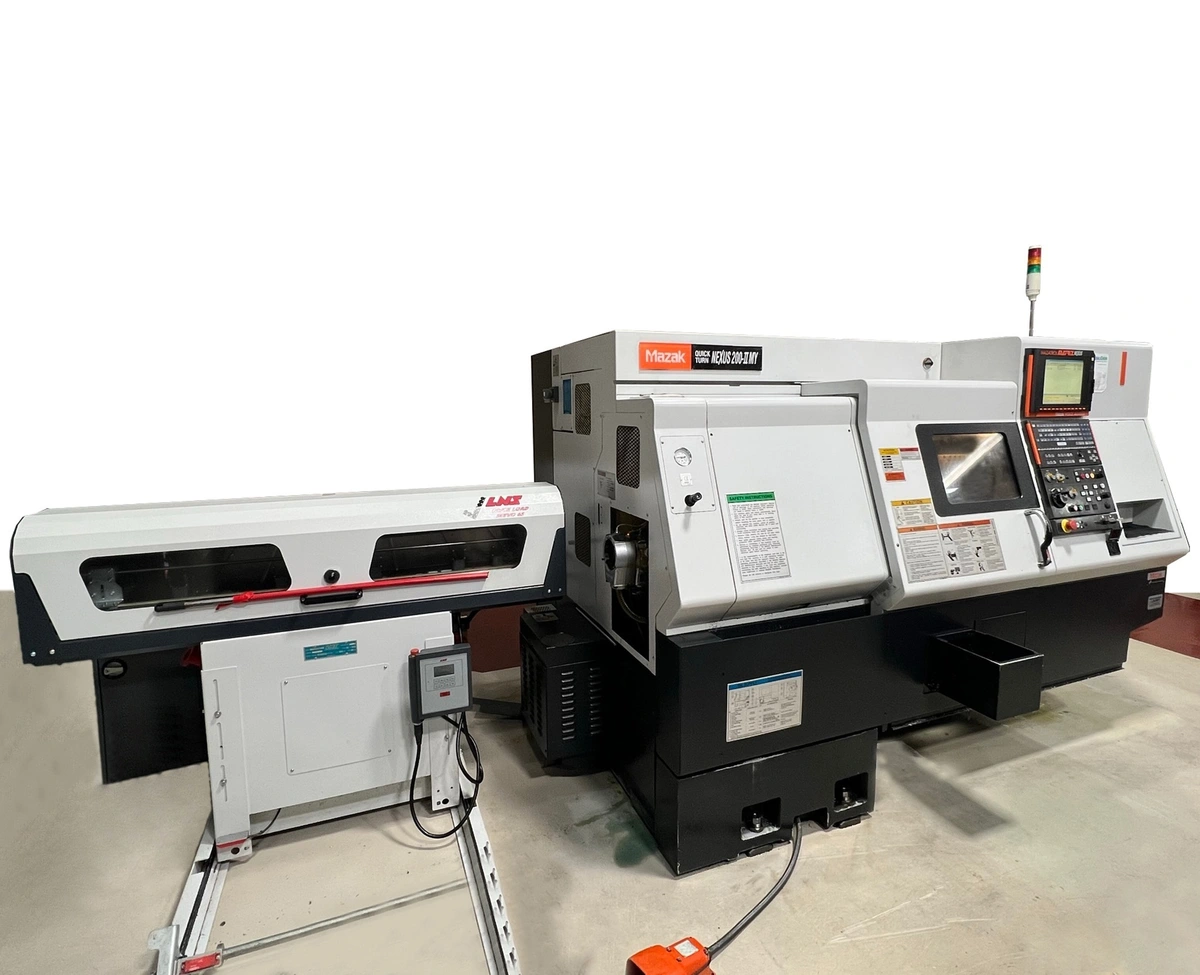

MAZAK QTN 200MY WITH MAZATROL MATRIX NEXUS CNC CONTROL, LNS BAR FEEDER, COLLET CHUCK (CAPABLE 8" CHUCK), 12 STATION LIVE TOOL TURRET, C & Y AXIS CAPABILITY, PROGRAMMABLE TAILSTOCK, TOOL PRESETTER, PART CATCHER, AND CHIP CONVEYOR.
| Maximum Swing | 26.8" |
| Max Turning Diameter | 21.28" |
| Main Spindle Bore/Max Bar Capacity | 2.9 '/ 2.0" |
| Tail Stock/Sub Spindle | PROGRAMMABLE TAILSTOCK |
| Distance Between Centers | 23" |
| X-Axis Travel (X1, X2, X3) | 9.0" |
| Z-Axis Travel (Z1, Z2, Z3) | 4.0" (+/-2.0") |
| Y-Axis Travel (Y1, Y2, Y3) | 22.63" |
| C-Axis Indexing (1, 2) | 0.001° |
| Main Spindle Chuck Size | 0" |
| Main Spindle Chuck Type | Collet |
| Main Spindle Bore Diameter | 2.9" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 7.5 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 106" x 75" x 79" |
| Weight | 12,500 LBS |
MAZATROL MATRIX NEXUS CNC CONTROL
LNS BAR FEEDER
COLLET CHUCK (CAPABLE 8" CHUCK)
12 STATION LIVE TOOL TURRET
C & Y AXIS CAPABILITY
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
PART CATCHER
USB DRIVE
PCMCIA CARD SLOT
COOLANT SYSTEM
CHIP CONVEYOR
TRANSFORMER
FOOTSWITCH
