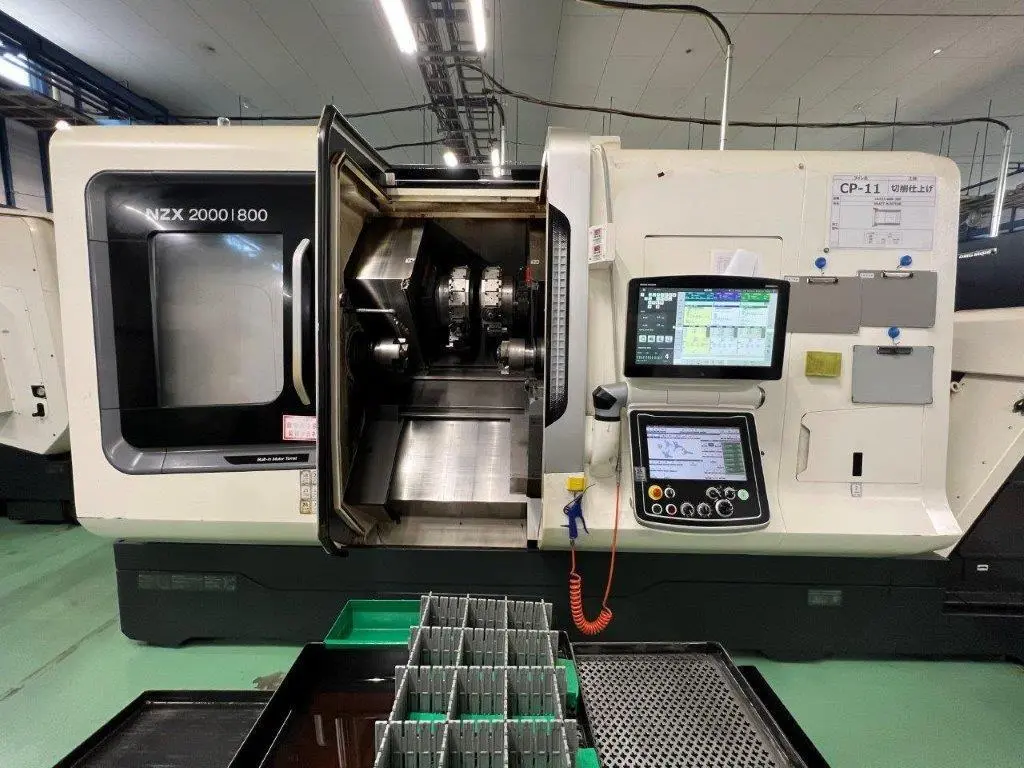

2019 DMG MORI NZX 2000/ 800STY3

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DMG MORI
Model:
NZX 2000/ 800STY3
Condition:
Excellent
Year:
2019
Stock #:
210392
Status:
For Sale

Description

2019 DMG MORI NZX 2000/ 800STY3 HAS CELOS (F31B) CONTROL, 3 TURRETS WITH Y AXIS, (2) MICROCENTRIC MBS 200 COLLET CHUCKS, CHIP BLASTER HIGH-PRESSURE COOLANT SYSTEM, HOBBING FUNCTION AND CHIP CONVEYOR.

Maximum Swing31.5"800.1 mm
Max Turning Diameter31.8"807.72 mm
Main Spindle Bore/Max Bar Capacity2.9"/ 2.6"2.9"/ 2.6"
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Swing Over Cross Slide31.5"800.1 mm
X-Axis Travel (X1, X2, X3)8.3"/ 8.3"/ 8.3"8.3"/ 8.3"/ 8.3"
Z-Axis Travel (Z1, Z2, Z3)11.8" / 31.9" / 8.3"11.8" / 31.9" / 8.3"
Y-Axis Travel (Y1, Y2, Y3)4.3"/ 4.3"/ 4.3"4.3"/ 4.3"/ 4.3"
C-Axis Indexing (1, 2)C-Axis High-Precision IndexingC-Axis High-Precision Indexing
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.9"73.66 mm
Main Spindle Maximum Bar Work2.5"63.5 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)33.3/3033.3/30
Sub Spindle/2nd Spindle Chuck Size88
Sub Spindle/2nd Spindle Bore Size2.92.9
Sub Spindle/2nd Spindle Speed5,000 RPM5,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)33.3/30 HP33.3/30 HP
Turret Type16 X 3 TURRETS16 X 3 TURRETS
Turret Rotary Tool Spindle Speed 1, 21200012000
Turret Rotary Tool Horse Power 1, 2107.5107.5
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
Tool Eye Automatic Second SpindleYesYes
High Pressure Coolant System (PSI)10001000
Hobbing FunctionYESYES
Upper Turret Positions1616
Lower Turret Positions1616
ControlCNC (CELOS (F31IB))CNC (CELOS (F31IB))
Dimensions199.3" X 111.6" X 91.3"199.3" X 111.6" X 91.3"
Weight21,120 LBS21,120 LBS

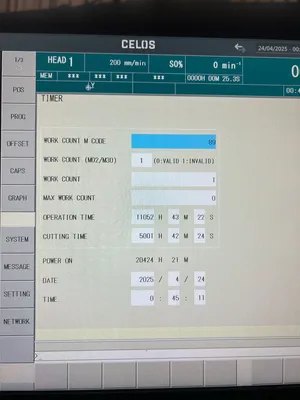

CELOS (F31IB) CNC CONTROL
21.5" COLOR ERGOLINE TOUCH TFT
TWIN SPINDLES
16 TOOLS X 3 TURRETS
(3) TURRETS WITH Y-AXIS
6000 RPM MILLING SPEED
(2) MICRO CENTRIC MBS 200 COLLET CHUCKS
CHIP BLASTER/CHIP CHILLER HIGH-PRESSURE COOLANT SYSTEM
COOLANT GUN
CHUCK TOP COOLANT
AIR PURGE (LEFT AND RIGHT SPINDLE)
AIR BLOW FOR TOOL TIP (T1, T2, AND T3)
X-AXIS DIRECT SCALE FEEDBACK (X1, X2, X3)
CHIP CONVEYOR (SIDE EXIT SCRAPER TYPE)
ETHERNET CAPABILITY
AUTOMATIC DOOR
TOOL PRESETTER (LEFT AND RIGHT SPINDLE)
(5) EXTERNAL M-CODES
3-D COORDINATE CONVERSION
TOOL RETRACT AND RECOVER
HOBBING FUNCTION
X-AXIS DIRECTION JIS / ISO
C-AXIS HIGH-PRECISION INDEXING
4-COLOR SIGNAL LIGHT
BUILT-IN WORK LIGHT
