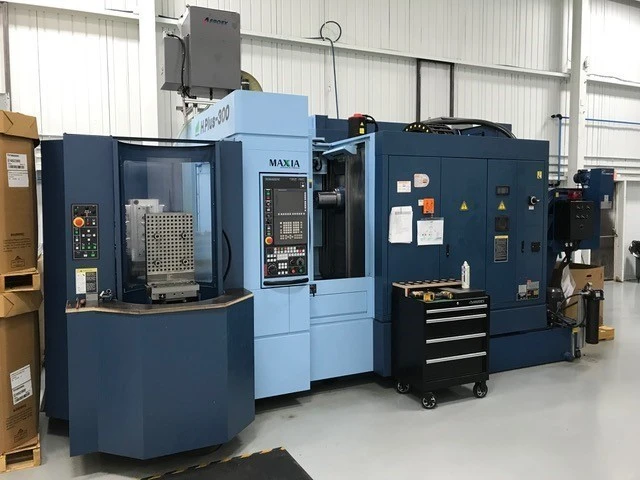

MATSUURA H PLUS 300 PC5 5 PALLET HORIZONTAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
THIS 2018 MATSUURA H PLUS-300 PC5 COMES WITH (5) 300mm PALLETS WITH 120 STATION ATC, NANO SMOOTHING, RENISHAW NC-4 LASER TOOL PROBE, OMP 60 OPTICAL PROBE AND FANUC G-TECH 31i CONTROL.
SPECIFICATIONS:
PALLET SIZE 11.81" X 11.81"
NUMBER OF PALLETS 5
PALLET WEIGHT CAPACITY 551 LBS.
PALLET SURFACE TO SPINDLE CTR 4.72'' - 24.41''
PALLET CTR TO SPINDLE GAGE LINE 3.15'' - 22.83''
WORKPIECE DIMENSIONS 20.86" X 29.92"
X - AXIS TRAVEL 19.68"
Y - AXIS TRAVEL 22.04"
Z - AXIS TRAVEL 19.68"
B - AXIS TRAVEL .001 NC ROTARY
RAPID TRAVERSE RATES X, Y, Z 2362 IPM
SPINDLE SPEED 15,000. RPM
SPINDLE TAPER 40 CT
MAIN MOTOR 20
AUTOMATIC TOOL CHANGER 120 ATC
TOOL DIAMETER 5.9"
TOOL LENGTH 11.8"
TOOL WEIGHT 17.6"
TOOL CHANGE TIME 2.4 SEC.
FANUC G-TECH 31i CNC CONTROL
100 RPM DD FULL FOURTH AXIS
5 PALLET POOL
AEROEX ROX 400 OIL/MIST COLLECTOR
ALL AVAILABLE MANUALS
CYLIDRICAL INTERPOLATION
DATA SERVER WITH HIGH PRECISION CONTOUR CONTROL
G54.2 DYNAMIC FIXTURE OFFSET
IZ-2/150NF 1000 BLOCK LOOK AHEAD
NANO SMOOTHING W/JERK CONTROL
LOAD/UNLOAD STATION
MATSUURA SAFETY SYSTEM-DOOR INTERLOCKS
OPTIMAL TORQUE ACCE/DECEL FUNCTION
ORBITAL TURNING FUNCTION
OVERHEAD FLUSHING SYSTEM
POLAR COORDINATE SYSTEM
RENISHAW NC-4 LASER TOOL PROBE
RENISHAW OMP 60 OPTICAL PROBE W/INSPECTION SOFTWARE
ROTARY WIPER
SPINDLE OIL CHILLER
THROUGH SPINDLE COOLANT 300 PSI TURBO FINE II 640 LITER COOLANT
SCRAPPER TYPE DISK FILTERING BACKWASH
INTERNAL SPIRAL CHIP CONVEYOR
UPGRADE CHIP EVACUATION SYSTEM
