DOOSAN PUMA V400R HIGH PERFORMANCE HEAVEY DUTY VTL

DOOSAN PUMA V400R HIGH PERFORMANCE HEAVEY DUTY VTL

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
VTL VERTICAL CNC
Manufacturer:
DOOSAN
Model:
PUMA V400R
Year:
2021
Stock #:
210395
Status:
For Sale

Description

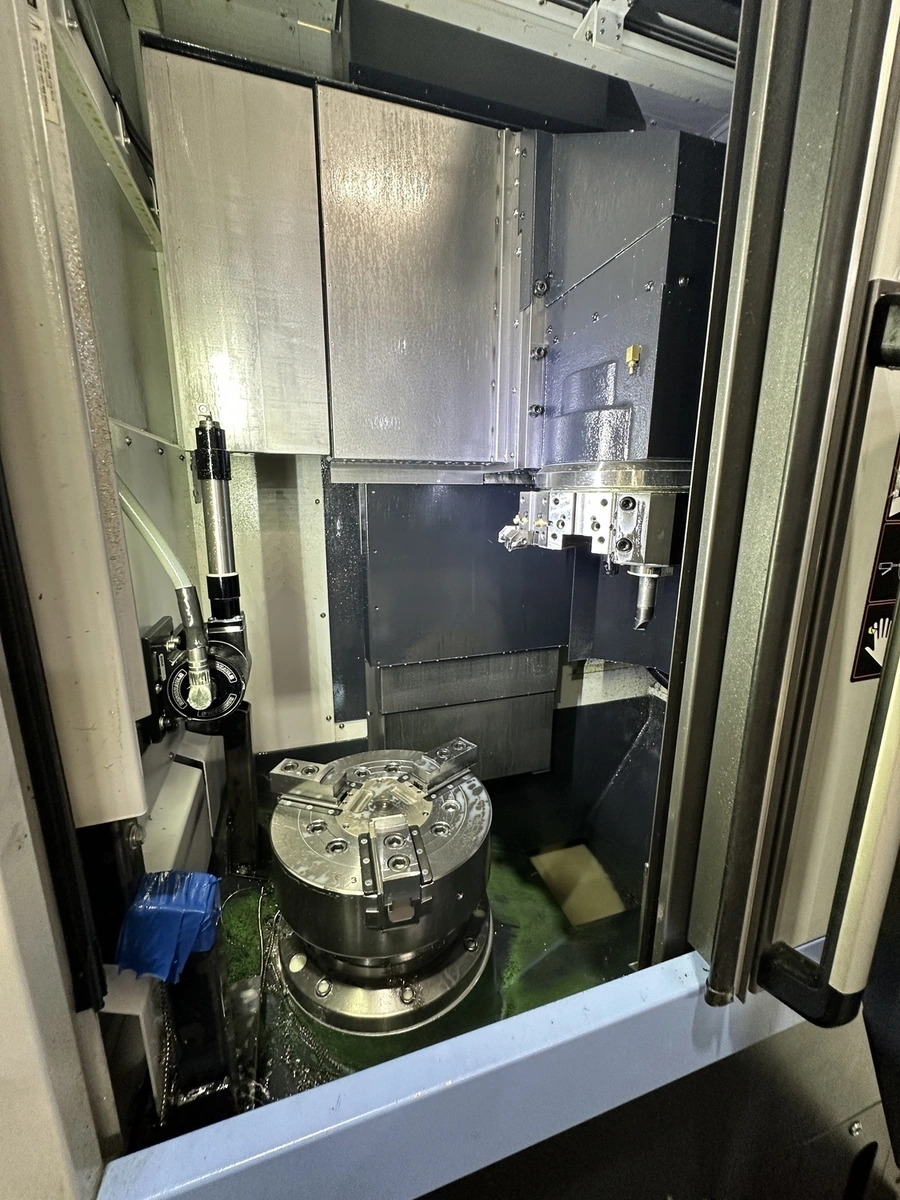

THIS 2021 DOOSAN PUMA V400R IS THE PERFECT VTL FOR SMALL PARTS WITH A 3000 RPM/ 30 HP SPINDLE, 12 POSITION TURRET, 145 PSI CTS, RENISHAW TOOL SETTER, 1200 CFM MIST COLLECTOR AND A SAMCHULLY 15" CHUCK.

Swing24"609.6 mm
Turning Height18.1"459.74 mm
Main Motor30 hp
X-Axis Travel10.6”10.6”
Z-Axis Travel19.2"487.68 mm
Automatic Tool Changer1212
Rapid Traverse X, Z787 IPM/ 787 IPM787 IPM/ 787 IPM
Table Speed3,000 RPM3,000 RPM
Power30 hp22.4 kW
Chuck Size15 in
Main Spindle Turning Diameter Max:13.5 in
Spindle3,000 RPM3000 rpm
ControlCNC (DOOSAN FANUC i-SERIES)CNC (DOOSAN FANUC i-SERIES)
Dimensions58" x 85"58" x 85"
Weight13,200 LBS13,200 LBS

X-AXIS GUIDE WAY SPAN 13.2"
Z AXIS GUIDE WAY SPAN 18.5"
X-AXIS BALL SCREW DIAMETER 1.26"
Z AXIS BALL SCREW DIAMETER 1.57"

205-235V/3 PH/60 HZ
41 KVA (106 AMPS @ 220 VOLTS)

SAMCHULLY 15” HC 3-JAW CHUCK (K-HC-151B1)
RENISHAW MOTORIZED TOOL SETTER (A-5616-3743)
145 PSI COOLANT PUMP, RETROFIT
CHUCK AIR BLOW RETROFIT, RETROFIT
TURBO REAR DISCHARGE CHIP CONVEYOR (5770-9007)
MP 1200 CFM MIST COLLECTOR (MP-1200CFM)
ADDITIONAL M-CODES, 16-SETS, RETROFIT
STANDARD TOOLING PACKAGE
