DOOSAN PUMA V400LL HIGH PERFORMANCE HEAVY DUTY VTL
Have one to sell?
ConditionUsed
1 available
THIS 2021 DOOSAN PUMA V400L IS THE PERFECT VTL FOR SMALL PARTS WITH A 3000 RPM/ 30 HP SPINDLE, 12 POSITION TURRET, 145 PSI CTS, RENISHAW TOOL SETTER, 1200 CFM MIST COLLECTOR AND A SAMCHULLY 15" CHUCK.
X-AXIS GUIDE WAY SPAN 13.2"
Z AXIS GUIDE WAY SPAN 18.5"
X-AXIS BALL SCREW DIAMETER 1.26"
Z AXIS BALL SCREW DIAMETER 1.57"
205-235V/3 PH/60 HZ
41 KVA (106 AMPS @ 220 VOLTS)

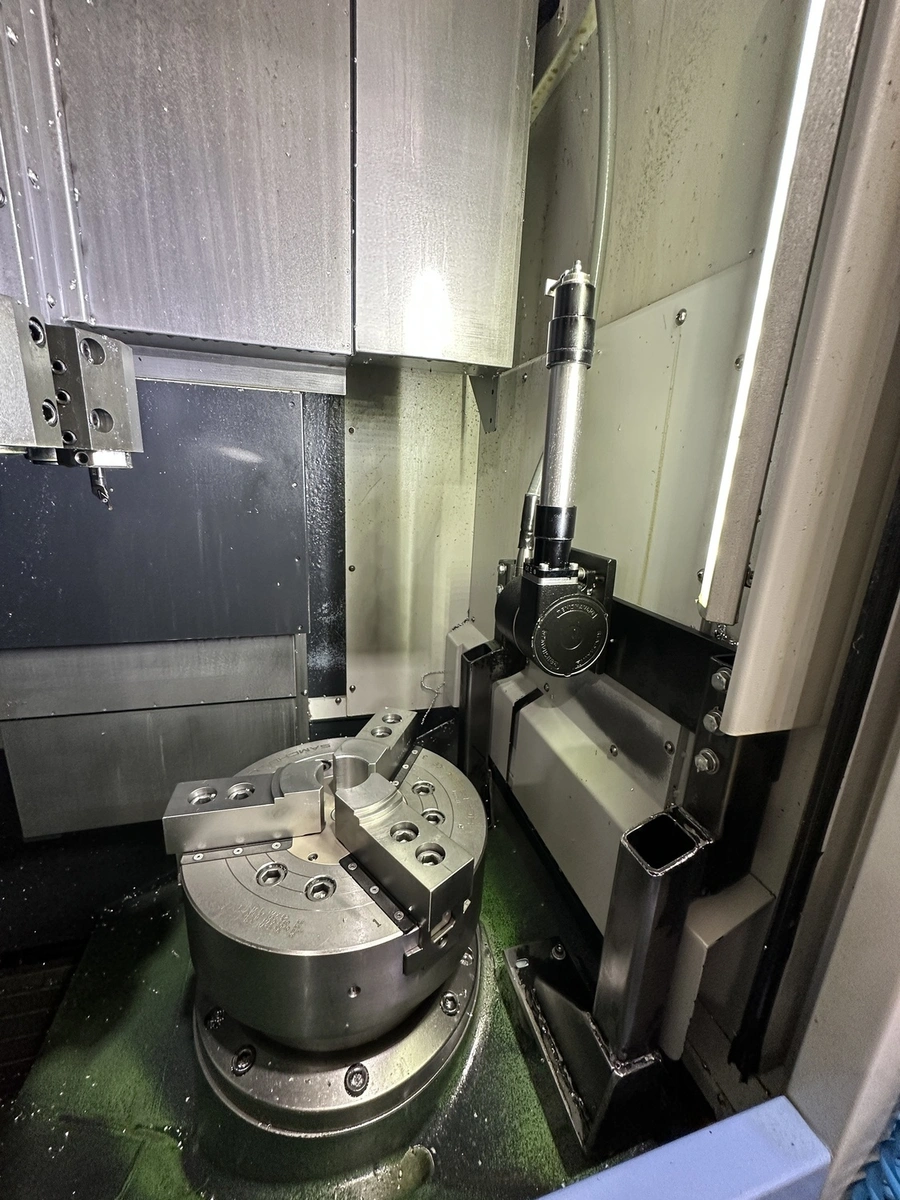

SAMCHULLY 15” HC 3-JAW CHUCK (K-HC-151B1)
RENISHAW MOTORIZED TOOL SETTER (A-5616-3743)
145 PSI COOLANT PUMP, RETROFIT
CHUCK AIR BLOW RETROFIT, RETROFIT
TURBO REAR DISCHARGE CHIP CONVEYOR (5770-9007)
MP 1200 CFM MIST COLLECTOR (MP-1200CFM)
ADDITIONAL M-CODES, 16-SETS, RETROFIT
STANDARD TOOLING PACKAGE
THIS 2021 DOOSAN PUMA V400L IS THE PERFECT VTL FOR SMALL PARTS WITH A 3000 RPM/ 30 HP SPINDLE, 12 POSITION TURRET, 145 PSI CTS, RENISHAW TOOL SETTER, 1200 CFM MIST COLLECTOR AND A SAMCHULLY 15" CHUCK.
Imperial
| Swing | 24" |
| Turning Height | 18.1" |
| Main Motor | 30 hp |
| X-Axis Travel | 10.6” |
| Z-Axis Travel | 19.2" |
| Automatic Tool Changer | 12 |
| Rapid Traverse X, Z | 787 IPM/ 787 IPM |
| Table Speed | 3,000 RPM |
| Power | 30 hp |
| Chuck Size | 15 in |
| Main Spindle Turning Diameter Max: | 13.5 in |
| Spindle | 3000 rpm |
| Control | CNC |
| Dimensions | 58" x 85" |
| Weight | 13,200 LBS |
X-AXIS GUIDE WAY SPAN 13.2"
Z AXIS GUIDE WAY SPAN 18.5"
X-AXIS BALL SCREW DIAMETER 1.26"
Z AXIS BALL SCREW DIAMETER 1.57"
205-235V/3 PH/60 HZ
41 KVA (106 AMPS @ 220 VOLTS)
SAMCHULLY 15” HC 3-JAW CHUCK (K-HC-151B1)
RENISHAW MOTORIZED TOOL SETTER (A-5616-3743)
145 PSI COOLANT PUMP, RETROFIT
CHUCK AIR BLOW RETROFIT, RETROFIT
TURBO REAR DISCHARGE CHIP CONVEYOR (5770-9007)
MP 1200 CFM MIST COLLECTOR (MP-1200CFM)
ADDITIONAL M-CODES, 16-SETS, RETROFIT
STANDARD TOOLING PACKAGE
