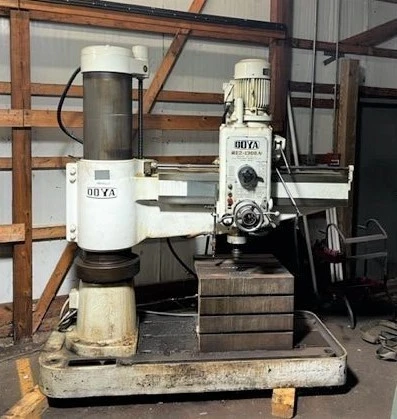

OOYA RE2-1300A RADIAL DRILL

COLUMN DIAMETER: 13-5/8″
ARM LENGTH: 48″
SPINDLE SPEEDS (12): 38 – 1985 RPM
SPINDLE TRAVEL: 10″
SPINDLE DIAMETER: 3-3/8″
SPINDLE HEAD TRAVEL: 40-3/4″
VERTICAL ARM TRAVEL: 25-5/8″
SPINDLE TAPER: 5MT
WORK AREA OF BASE: 54″ X 29″
DISTANCE SPINDLE TO COLUMN: 10″ – 48″
DISTANCE SPINDLE TO BASE: 15″ – 49″
DRILLING CAPACITY – MILD STEEL: 2-1/4″
DRILLING CAPACITY – CAST IRON: 2-5/8″
TAPPING CAPACITY – MILD STEEL: 1-3/4″
TAPPING CAPACITY – CAST IRON: 2″
FEEDS (6): .003 / .005 / .009 / .013 / .023 / .039
MOTOR HP: 7.4
ELECTRICAL: 230 / 460V (WIRED 460) / 3PH
