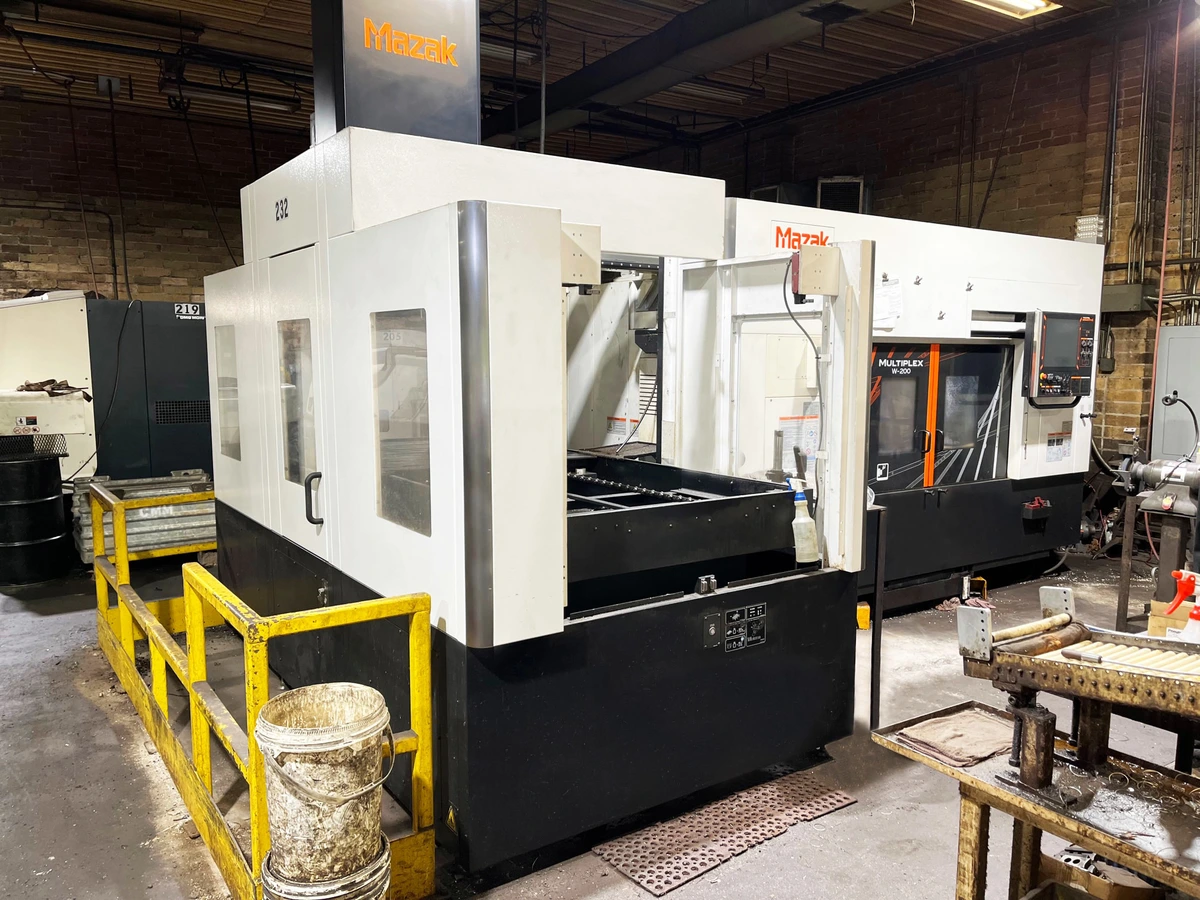

2019 Mazak Multiplex W-200 Dual Spindle / Dual Turret CNC Turning Center

2019 Mazak Multiplex W-200 Dual Spindle / Dual Turret CNC Turning Center

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
MULTIPLEX W-200
Year:
2019
Stock #:
210424
Status:
For Sale

Description

2019 MAZAK MULTIPLEX W-200 WITH GANTRY, MAZATROL SMOOTH G CONTROL W/ 19" COLOR LCD (TOUCH SCREEN), MANUAL PULSE GENERATOR, RIGID TAPPING, COOLANT THRU SPINDLES

Maximum Swing12.8"325.12 mm
Max Turning Diameter12.8"325.12 mm
Main Spindle Bore/Max Bar Capacity2.99"/ 2.5"2.99"/ 2.5"
Tail Stock/Sub SpindleN/AN/A
Distance Between Centers48"1,219.2 mm
Maximum Cutting Length7.08"179.83 mm
Distance Between Spindles48"1,219.2 mm
X-Axis Travel (X1, X2, X3)10.75/ 10.7510.75/ 10.75
Z-Axis Travel (Z1, Z2, Z3)19.125/ 20.62519.125/ 20.625
C-Axis Indexing (1, 2)360 DEGREES360 DEGREES
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.99"75.946 mm
Main Spindle Maximum Bar Work2.5"63.5 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)30/ 2030/ 20
Number of Turrets22
Turret Tool Positions 1, 21212
Turret TypeVDIVDI

MAZATROL SMOOTH G CONTROL W/ 19" COLOR LCD (TOUCH SCREEN)
MANUAL PULSE GENERATOR
GL-100 GANTRY LOADER SYSTEM
RIGID TAPPING
COOLANT THRU SPINDLE
HIGH-PRESSURE COOLANT SYSTEM
8" KITAGAWA CHUCKS
TOOL EYE
CHUCK AIR BLAST
MAYFRAM REAR HINGE CHIP CONVEYOR
COMPLETE COOLANT SYSTEM
SOME STANDARD AND LIVE TOOLING
