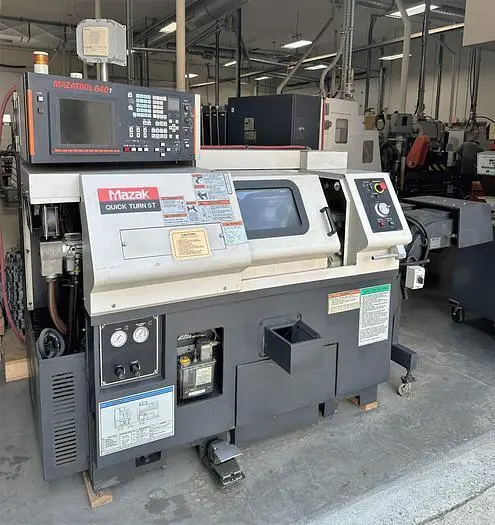

Used 2006 MAZAK QT 6T | CNC LATHES 2 AXIS
Have one to sell?
ConditionUsed
1 available
THIS LITTLE QT 6T HAS A FUSION 640 CONTROL, 5" 3 JAW HYDRAULIC CHUCK, KITAGAWA CRS36 COLLET CHUCK W/ FULL SET OF 171E COLLETS, TAILSTOCK, PARTS CATCHER AND CHIP CONVEYOR.
MAZATROL FUSION 640T
5" 3 JAW HYDRAULIC CHUCK
KITAGAWA CRS36 COLLET CHUCK W/ FULL SET OF 171E COLLETS
12 POSITION TURRET
MANUAL TOOL EYE
MANUAL TAILSTOCK W/ PROGRAMMABLE QUILL
AUTOMATIC PARTS CATCHER
CHIP CONVEYOR
FULL SET OF SPINDLE LINERS & 5/8" SQUARE TOOLS
COOLANT SYSTEM WITH TANK AND PUMP
CARD INTERFACE
RS 232 PORT INTERFACE
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
MULTI-TAP TRANSFORMER, CURRENTLY WIRED 200V
**ORIGINAL OWNER, CUSTOMER BOUGHT NEW IN MID 2006**
**VERY LOW HOURS OF USE, MOST PARTS WERE TOO LARGE FOR THIS MACHINE**
**POWER ON HOURS - 177.09**
**AUTO OPERATION HOURS - 46.00**
**TOTAL CUTTING HOURS - 18.58**
THIS LITTLE QT 6T HAS A FUSION 640 CONTROL, 5" 3 JAW HYDRAULIC CHUCK, KITAGAWA CRS36 COLLET CHUCK W/ FULL SET OF 171E COLLETS, TAILSTOCK, PARTS CATCHER AND CHIP CONVEYOR.
Imperial
| Max. Swing | 17.32" |
| Max Turning Diameter | 5.32" |
| Spindle Bore/Max Bar Capacity | 1.73" / 1.26" |
| Z Travel | 7.87" |
| X Travel | 3.15" |
| Machining Length | 7.68" |
| Chuck Size | 5" |
| Chuck Type | Hydraullic |
| Spindle Motor | 7 hp |
| Spindle Speeds (RPM) | 7000 |
| Spindle Bore/Bar Capacity | 1.73 in |
| Max. Bar Capacity | 1.26" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Parts Catcher | Yes |
| Control | CNC (MAZATROL FUSION 640T) |
| Dimensions | 68"x53"x62" |
| Weight | 4,400 lbs |
MAZATROL FUSION 640T
5" 3 JAW HYDRAULIC CHUCK
KITAGAWA CRS36 COLLET CHUCK W/ FULL SET OF 171E COLLETS
12 POSITION TURRET
MANUAL TOOL EYE
MANUAL TAILSTOCK W/ PROGRAMMABLE QUILL
AUTOMATIC PARTS CATCHER
CHIP CONVEYOR
FULL SET OF SPINDLE LINERS & 5/8" SQUARE TOOLS
COOLANT SYSTEM WITH TANK AND PUMP
CARD INTERFACE
RS 232 PORT INTERFACE
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
MULTI-TAP TRANSFORMER, CURRENTLY WIRED 200V
**ORIGINAL OWNER, CUSTOMER BOUGHT NEW IN MID 2006**
**VERY LOW HOURS OF USE, MOST PARTS WERE TOO LARGE FOR THIS MACHINE**
**POWER ON HOURS - 177.09**
**AUTO OPERATION HOURS - 46.00**
**TOTAL CUTTING HOURS - 18.58**
