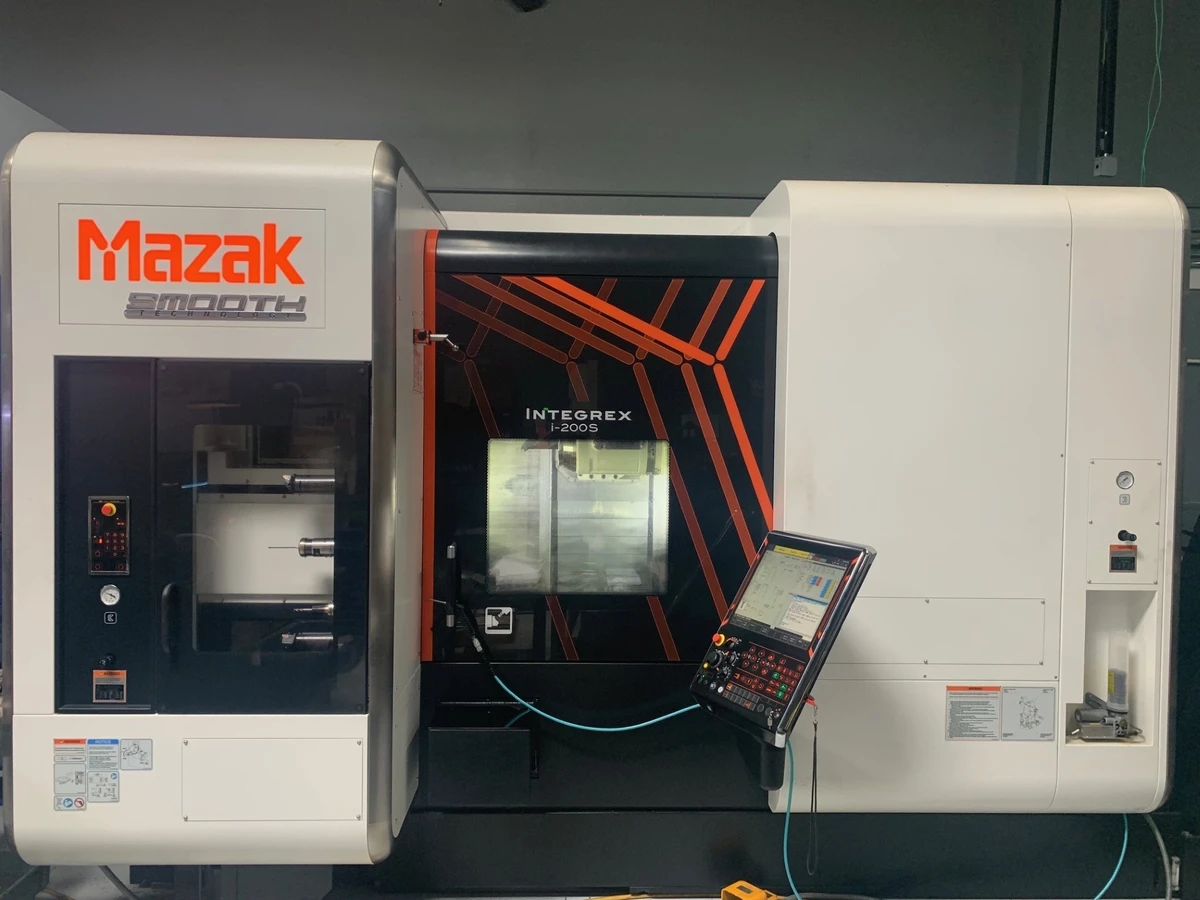

2018 MAZAK INTEGREX i-200S/ 1000
Have one to sell?
ConditionUsed
1 available
2019 MAZAK INTEGREX i-200S WITH SMOOTH X CONTROL, 36 TOOL ATC, PROBING, CHIP CONVEYOR, AND 213 PSI CTS.
Cutting time: 3070
MAZATROL SMOOTHX CNC CONTROL
5 AXIS SIMULTANEOUS MACHINING
12,000 RPM PENDULUM MILLING HEAD
CAPTO C6
36 STATION TOOL MAGAZINE
GEAR HOBBING AND MILLING SOFTWARE
RENISHAW RMP-600 PROBING SYSTEM
FULL C-AXIS ON BOTH SPINDLES
Y-AXIS CAPABILITY
8″ CHUCK ON BOTH SPINDLES
RIGID TAPPING
PCMCIA CARD SLOT
TOOL PRESETTER
COOLANT SYSTEM
TOOLING
BOOKS & MANUALS
2019 MAZAK INTEGREX i-200S WITH SMOOTH X CONTROL, 36 TOOL ATC, PROBING, CHIP CONVEYOR, AND 213 PSI CTS.
Imperial
| Maximum Swing | 25.9" |
| Max Turning Diameter | 25.9" |
| Main Spindle Bore/Max Bar Capacity | 2.99"/ 2.5" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 25.9" |
| Distance Between Centers | 40" |
| Maximum Cutting Length | 39.8" |
| X-Axis Travel (X1, X2, X3) | 24.21" |
| Z-Axis Travel (Z1, Z2, Z3) | 42.4" |
| Y-Axis Travel (Y1, Y2, Y3) | 9.84" |
| C-Axis Indexing (1, 2) | 0.0001/ 0.0001 DEG |
| W-Axis Travel Sub Spindle | 41.97 in |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.99" |
| Main Spindle Maximum Bar Work | 2.5" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20/ 25 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.5 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 5,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 20/ 25 |
| Main & Sub Spindle Synchronization | Yes |
| ATC Magazine Capacity | 36 |
| B-Axis Head Indexing | 0.0001 deg |
| B-Axis Milling Spindle Speed | 12000 rpm |
| B-Axis Milling Spindle Horse Power | 30 |
| Bar Feed | No |
| Parts Catcher | No |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Coolant Thru Milling Head | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Work Measuring System (Probe) | YES |
| Control | CNC |
| Dimensions | 193.3" X 110.2" X 107 |
| Weight | 35,596 lbs |
Cutting time: 3070
MAZATROL SMOOTHX CNC CONTROL
5 AXIS SIMULTANEOUS MACHINING
12,000 RPM PENDULUM MILLING HEAD
CAPTO C6
36 STATION TOOL MAGAZINE
GEAR HOBBING AND MILLING SOFTWARE
RENISHAW RMP-600 PROBING SYSTEM
FULL C-AXIS ON BOTH SPINDLES
Y-AXIS CAPABILITY
8″ CHUCK ON BOTH SPINDLES
RIGID TAPPING
PCMCIA CARD SLOT
TOOL PRESETTER
COOLANT SYSTEM
TOOLING
BOOKS & MANUALS
