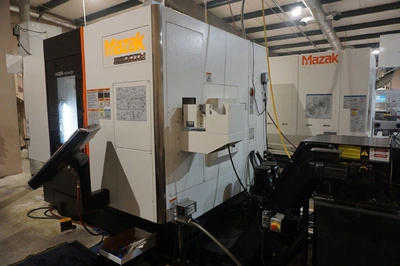

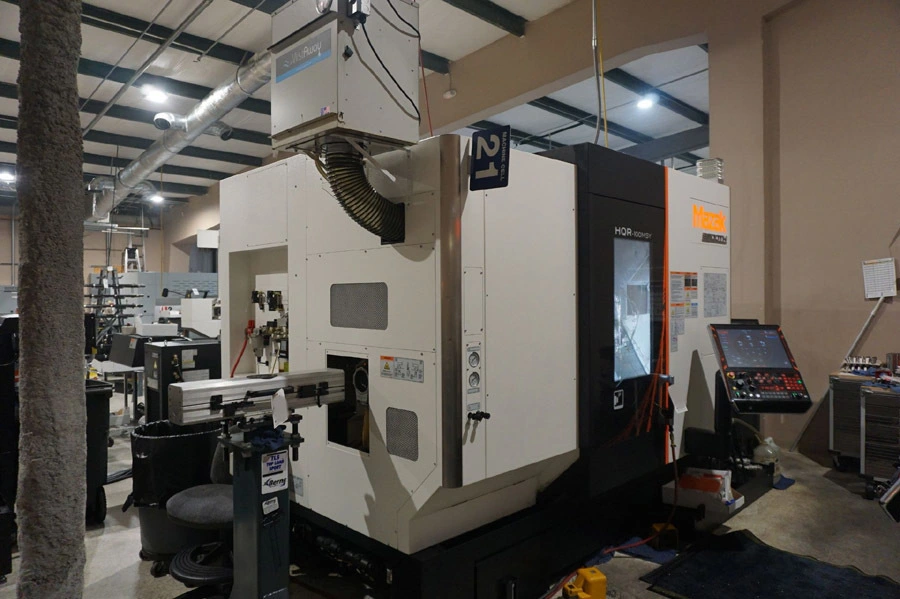

2016 Mazak Hyper Quadrex 100MSY CNC Turning Center with Milling
Have one to sell?
ConditionUsed
1 available
AXIS RAPID RATES:
X1-AXIS 1181 IPM
Y1-AXIS 1024 IPM
Z1-AXIS 1575 IPM
X2-AXIS LOWER 945 IPM
Y2-AXIS LOWER 787 IPM
Z2-AXIS LOWER 1575 IPM
W-AXIS 1181 IPM
C1/C2-AXIS 555 RPM
MAZATROL SMOOTHG CNC CONTROL
19” COLOR LCD (TOUCH SCREEN)
EIA/ISO PACKAGE
CYLINDRICAL & POLAR COORDINATE (EIA)
MILLING SPINDLE SYNCHRONOUS TAPPING
INCH/METRIC CONVERSION
SD MEMORY I/F (1-PORT) + USB I/F (1-PORT)
LAN PORT
USB I/F (1-PORT)
Y-AXIS CONTROL (UPPER & LOWER TURRET)
ABSOLUTE POSITIONING SYSTEM (N/A WITH SCALE FEEDBACK)
HI-PRESSURE COOLANT 15KG/213 PSI W/TEMPERATURE CONTROL
1ST SPINDLE BORE DIA. 2.4”
1ST SPINDLE MOTOR 15HP
1ST SPINDLE SPEED 6000 RPM
C-AXIS 0.0001 DEGREE INCREMENT (1ST SPINDLE)
SECOND SPINDLE MOTOR 15HP / 6000 RPM
2ND SPINDLE C-AXIS 0.0001 DEGREE INCREMENTS
MAIN & SUB SPINDLE SYNCHRONIZATION
CHUCK AIR BLAST (2ND SPINDLE)
12 POSITION DRUM TURRET (VDI: UPPER)
ROTARY TOOL SPINDLE SPEED 6000 RPM / 7.4 HP / 25.8 FT-LBS
12 POSITION DRUM TURRET (VDI: LOWER)
AUTO POWER ON/OFF + WARM-UP
TOOL EYE (AUTOMATIC 1ST / 2ND SPINDLES)
AUTO CHUCK JAWS OPEN/CLOSE (1&2 SPINDLE)
CHUCK OPEN/CLOSE CONFIRMATION (1ST & 2ND SPINDLE)
RELOCATION DEVICE
WINDOWS 8 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
WORKPIECE UNLOADER & CONVEYOR (2.56” DIA X 7.09” L X 6.6 LB MAX
COOLANT THROUGH 2ND TURNING SPINDLE
MAZAK SUPER FLOW D8-1000 HIGH PRESSURE COOLANT
MAYFRAN HINGE TYPE CHIP CONVEYOR SIDE DISPOSAL
(2) KITIGAWA 6” CHUCKS
PREPPED FOR MISTAWAY MIST COLLECTOR MA700
MFG 12/2016
Imperial
| X-Axis Travel (X1, X2, X3) | 6.87"/ 4.315" |
| Z-Axis Travel (Z1, Z2, Z3) | 20.375/ 22.75" |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 2.0"/ +0.75- -2.0" |
| C-Axis Indexing (1, 2) | 0.0001 Deg. 3,600,000 Positions |
| W-Axis Travel Sub Spindle | 24.5 in |
| Main Spindle Chuck Size | 6" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 6,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 10/15 HP (AC) |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2.4 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 10/15 HP (AC) |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Type | VDI |
| Turret Rotary Tool Spindle Speed 1, 2 | 600 |
| Turret Rotary Tool Horse Power 1, 2 | 7.0 |
| Chip Conveyor | Yes |
| Tool Eye Measurement Upper Turret | Yes |
| Tool Eye Measurement Lower Turret | Yes |
| High Pressure Coolant System (PSI) | 1000 |
| Workpiece Unloader & Conveyor | WORKPIECE UNLOADER & CONVEYOR (2.56” DIA X 7.09” L X 6.6 LB MAX |
| Multi Tap Transformer | Yes |
| (HQR) Max. Swing Over Upper Turret | 12.6 in |
| (HQR) Max. Swing Over Lower Turret | 10.63 in |
| (HQR) Standard Chuck Dia. Main Spindle (L) | 6" |
| (HQR) Standard Chuck Dia. Second Spindle (R) | 6" |
| (HQR) Distance Between Chuck Jaw Faces (both spindles) | 24.375" |
| Control | CNC (MAZATROL SMOOTH G) |
| Dimensions | 112.7" x 90.2" x 95" |
| Weight | 19,930 lbs. |
AXIS RAPID RATES:
X1-AXIS 1181 IPM
Y1-AXIS 1024 IPM
Z1-AXIS 1575 IPM
X2-AXIS LOWER 945 IPM
Y2-AXIS LOWER 787 IPM
Z2-AXIS LOWER 1575 IPM
W-AXIS 1181 IPM
C1/C2-AXIS 555 RPM
MAZATROL SMOOTHG CNC CONTROL
19” COLOR LCD (TOUCH SCREEN)
EIA/ISO PACKAGE
CYLINDRICAL & POLAR COORDINATE (EIA)
MILLING SPINDLE SYNCHRONOUS TAPPING
INCH/METRIC CONVERSION
SD MEMORY I/F (1-PORT) + USB I/F (1-PORT)
LAN PORT
USB I/F (1-PORT)
Y-AXIS CONTROL (UPPER & LOWER TURRET)
ABSOLUTE POSITIONING SYSTEM (N/A WITH SCALE FEEDBACK)
HI-PRESSURE COOLANT 15KG/213 PSI W/TEMPERATURE CONTROL
1ST SPINDLE BORE DIA. 2.4”
1ST SPINDLE MOTOR 15HP
1ST SPINDLE SPEED 6000 RPM
C-AXIS 0.0001 DEGREE INCREMENT (1ST SPINDLE)
SECOND SPINDLE MOTOR 15HP / 6000 RPM
2ND SPINDLE C-AXIS 0.0001 DEGREE INCREMENTS
MAIN & SUB SPINDLE SYNCHRONIZATION
CHUCK AIR BLAST (2ND SPINDLE)
12 POSITION DRUM TURRET (VDI: UPPER)
ROTARY TOOL SPINDLE SPEED 6000 RPM / 7.4 HP / 25.8 FT-LBS
12 POSITION DRUM TURRET (VDI: LOWER)
AUTO POWER ON/OFF + WARM-UP
TOOL EYE (AUTOMATIC 1ST / 2ND SPINDLES)
AUTO CHUCK JAWS OPEN/CLOSE (1&2 SPINDLE)
CHUCK OPEN/CLOSE CONFIRMATION (1ST & 2ND SPINDLE)
RELOCATION DEVICE
WINDOWS 8 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
WORKPIECE UNLOADER & CONVEYOR (2.56” DIA X 7.09” L X 6.6 LB MAX
COOLANT THROUGH 2ND TURNING SPINDLE
MAZAK SUPER FLOW D8-1000 HIGH PRESSURE COOLANT
MAYFRAN HINGE TYPE CHIP CONVEYOR SIDE DISPOSAL
(2) KITIGAWA 6” CHUCKS
PREPPED FOR MISTAWAY MIST COLLECTOR MA700
MFG 12/2016
