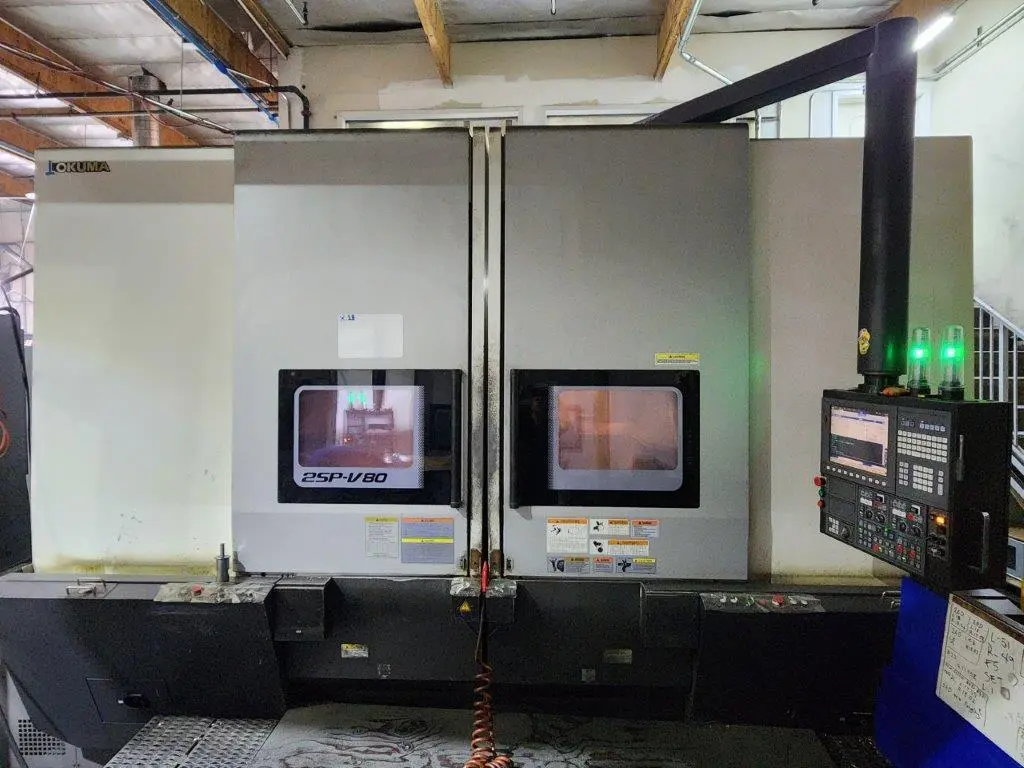

Used 2013 OKUMA 2SP-V80 | VTL VERTICAL CNC

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
VTL VERTICAL CNC
Manufacturer:
OKUMA
Model:
2SP-V80
Condition:
Good
Year:
2013
Stock #:
210449
Status:
For Sale

Description

2013 OKUMA 2SP-V80 HAS (2) 32" 3-JAW CLOSED CENTER CHUCKS, CHUCK ADAPTOR, A2-11, SEALED UNDERNEATH, TOUCHSETTER QTS MAN/AUTO (BOTH), DRAWBAR, HPC UNIT 1000 PSI, SPARE M CODES 4 SETS, AND GUIDE BUSHING SUPPORT.

Swing39.4"1,000.8 mm
Main Motor60 hp
X-Axis Travel18.518.5
Z-Axis Travel33"838.2 mm
Automatic Tool ChangerV12 + V12 TURRETV12 + V12 TURRET
Work Ht-U/R33.07"839.98 mm
Table Speed1,250 RPM1,250 RPM
Power60 hp44.7 kW
Chuck Size32 in
Main Spindle Turning Diameter Max:31.5 in
ControlCNC (OKUMA OSP300L)CNC (OKUMA OSP300L)
Dimensions180" X 110" X 165"180" X 110" X 165"
Weight48,400 LBS48,400 LBS

DISTANCE BETWEEN SPINDLE: 43.3"
MAX TURNING DIAMETER: 31.5"
MAX SWING ON THE SPINDLE: 39.4"
MAX TURNING LENGTH: 33.1"
SPINDLE NOSE HEIGHT FROM FLOOR: 45.3"
SPINDLE NOSE TYPE: A2-11
SPINDLE BORE DIAMETER: 4.3"
SPINDLE FRONT BEARING DIAMETER: 7.8"
SPINDLE SPEED: 10-1000 RPM
SPINDLES POWER: 60 HP
TURRET TYPE: V12 + V12
X & Z-AXIS RAPID TRAVERSE: 630 IPM
POWER REQUIREMENTS: 95 KVA
COOLANT CAPACITY: 211.3 GAL

(2) 32" 3-JAW CLOSED CENTER CHUCKS
CHUCK ADAPTOR, A2-11, SEALED UNDERNEATH
TOUCHSETTER QTS MAN/AUTO (BOTH)
DRAWBAR
HPC UNIT 1000 PSI
SPARE M CODES 4 SETS
GUIDE BUSHING SUPPORT
