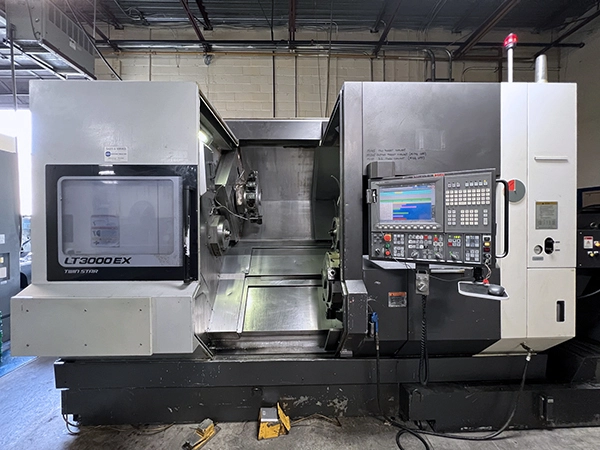

Used 2013 OKUMA LT-3000EX 2T2MY | CNC LATHES MULTI AXIS

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
OKUMA
Model:
LT-3000EX 2T2MY
Condition:
Good
Year:
2013
Stock #:
210456
Status:
For Sale
Max Turning Diameter13.78"350.01 mm
Main Spindle Bore/Max Bar Capacity3.15/3.15/
Tail Stock/Sub SpindleSUB SPINDLESUB SPINDLE
Maximum Swing Over Cross Slide21.66"550.16 mm
Distance Between Centers47.25"1,200.1 mm
X-Axis Travel (X1, X2, X3)10.04"/ 10.04"10.04"/ 10.04"
Z-Axis Travel (Z1, Z2, Z3)36.6"/ 37"36.6"/ 37"
Y-Axis Travel (Y1, Y2, Y3)4.92"/ 4.92"4.92"/ 4.92"
C-Axis Indexing (1, 2)0.001 deg0.001 deg
Main Spindle Bore Diameter3.15"80.01 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3030
Sub Spindle/2nd Spindle Speed5,000 RPM5,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)2222
Turret Tool Positions 1, 21616
Turret Rotary Tool Spindle Speed 1, 260006000
Chip ConveyorYesYes
High Pressure Coolant System (PSI)10001000
ControlCNC (OKUMA OSP-P300L)CNC (OKUMA OSP-P300L)
Dimensions178" x 110" x 108"178" x 110" x 108"
Weight25,000 LBS25,000 LBS

OKUMA OSP-P300L CONTROL
Y-AXIS ON UPPER AND LOWER TURRET
FULL C-AXIS (0.001 DEG) ON MAIN AND SUB-SPINDLE
SIDE DISCHARGE CHIP CONVEYOR
MP 1000 PSI COOLANT THRU
TRANSFORMER
10 TOOL HOLDERS INCLUDED
•
