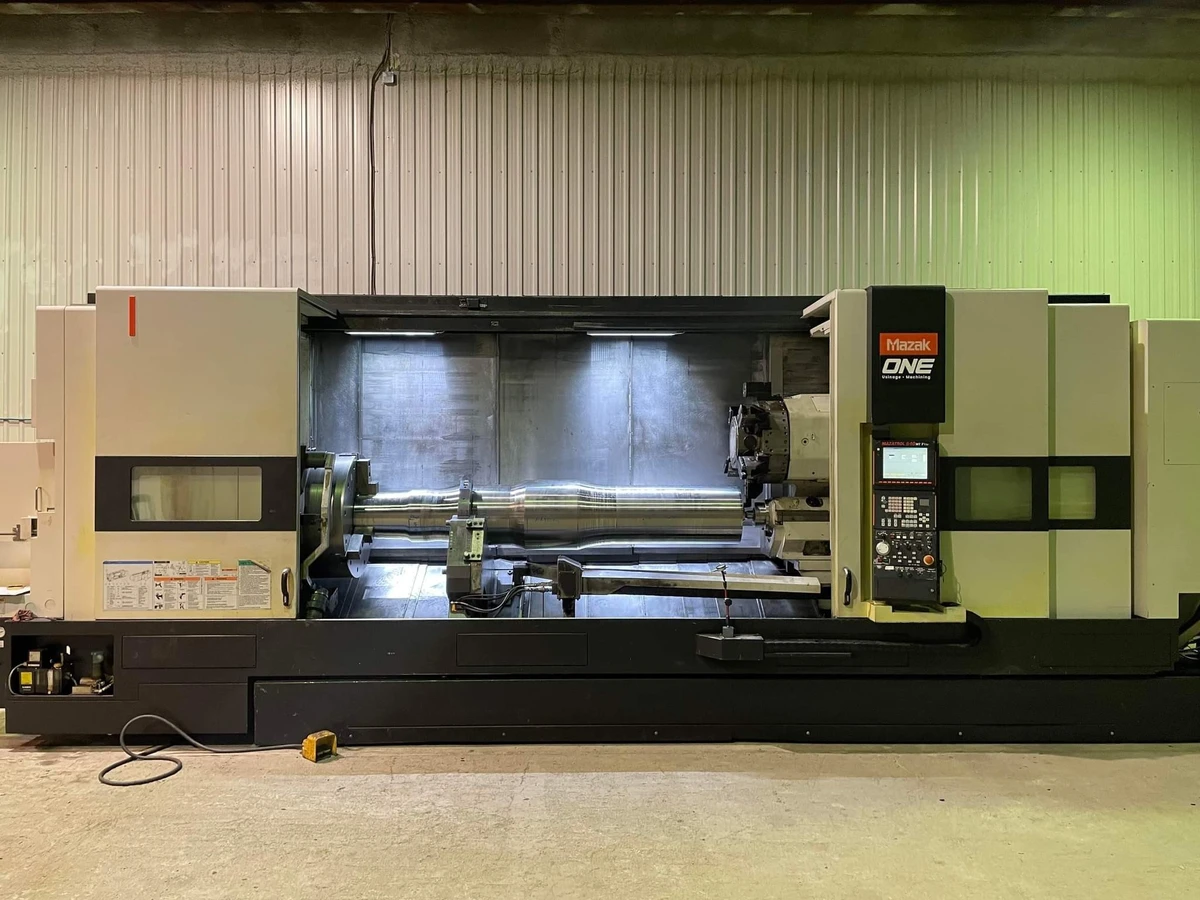

MAZAK CYBERTECH TURN 5500M /120"
Have one to sell?
ConditionUsed
1 available
THIS CYBERTECH 5500M HAS 120" CENTERS, FUSION 640MT CONTROL, 33.4" EXTENDED STROKE AIR CHUCK, 14.75" BORE, SMW K6-Z STEADY REST, LONG BORING BAR STOCKER, ROTA CLASSIC P800 4-JAW INDEPENDENT MANUAL CHUCK FOR REAR AND 213 PSI COOLANT THRU.
MAZATROL 640MT PRO
HINGE CHIP CONVEYOR
213 HI PRESSURE COOLANT
C AXIS 0.001 DEG. INCR.
14.6” SPINDLE BORE
MULTI-TAP TRANSFORMER 230V-260V
PREP FOR REAR MANUAL CHUCK – 33.46” MAX
LONG BORING BAR STOCKER – (2) BAR
LONG BORING BAR HOLDER W/O BAR 80MM ID FOR LBB STOCKER
LONG BORING BAR HOLDER W/O BAR 100MM ID FOR LBB STOCKER
MANUAL TOOL EYE FOR 34”
EXTENDED TAILSTOCK
RE-THREADING FUNCTION
THREAD START POINT FUNCTION
SMW STEADY REST K6-Z
33.4″ SCHUNK TB850 EXTENDED STROKE AIR CHUCK PCKG
ROTA CLASSIC P800 4-JAW INDEPENDENT MANUAL CHUCK FOR REAR
TOOLING AND MANUALS
THIS CYBERTECH 5500M HAS 120" CENTERS, FUSION 640MT CONTROL, 33.4" EXTENDED STROKE AIR CHUCK, 14.75" BORE, SMW K6-Z STEADY REST, LONG BORING BAR STOCKER, ROTA CLASSIC P800 4-JAW INDEPENDENT MANUAL CHUCK FOR REAR AND 213 PSI COOLANT THRU.
Imperial
| Maximum Swing | 36" |
| Max Turning Diameter | 31.9" |
| Main Spindle Bore/Max Bar Capacity | 14.76/ 14.76" |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 27.5" |
| Maximum Cutting Length | 120" |
| X-Axis Travel (X1, X2, X3) | 21.25 |
| Z-Axis Travel (Z1, Z2, Z3) | 123.3 |
| C-Axis Indexing (1, 2) | .001 |
| Main Spindle Chuck Size | 33" |
| Main Spindle Chuck Type | Air |
| Main Spindle Bore Diameter | 14.8" |
| Main Spindle Maximum Bar Work | 14.8" |
| Main Spindle Speed | 500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 50/ 60 |
| Rear Chuck Prep | Yes |
| Rear Chuck | Yes |
| Rear Chuck Diameter | 31.5" |
| Rear Chuck Type | Manual |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 3000 |
| Turret Rotary Tool Horse Power 1, 2 | 15 |
| Long Boring Bar Stocker | YES |
| Long Boring Bar Holder | Yes |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Control | CNC (MAZATROL FUSION 640 MT PRO) |
| Dimensions | 143.03" X 143.03" X 112.99" |
| Weight | 55997 LBS |
MAZATROL 640MT PRO
HINGE CHIP CONVEYOR
213 HI PRESSURE COOLANT
C AXIS 0.001 DEG. INCR.
14.6” SPINDLE BORE
MULTI-TAP TRANSFORMER 230V-260V
PREP FOR REAR MANUAL CHUCK – 33.46” MAX
LONG BORING BAR STOCKER – (2) BAR
LONG BORING BAR HOLDER W/O BAR 80MM ID FOR LBB STOCKER
LONG BORING BAR HOLDER W/O BAR 100MM ID FOR LBB STOCKER
MANUAL TOOL EYE FOR 34”
EXTENDED TAILSTOCK
RE-THREADING FUNCTION
THREAD START POINT FUNCTION
SMW STEADY REST K6-Z
33.4″ SCHUNK TB850 EXTENDED STROKE AIR CHUCK PCKG
ROTA CLASSIC P800 4-JAW INDEPENDENT MANUAL CHUCK FOR REAR
TOOLING AND MANUALS
