OKUMA MULTUS Big Bore B400W 2 SPINDLE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
OKUMA
Model:
MULTUS B400W
Condition:
Good
Year:
2008
Stock #:
210465
Status:
For Sale

Description

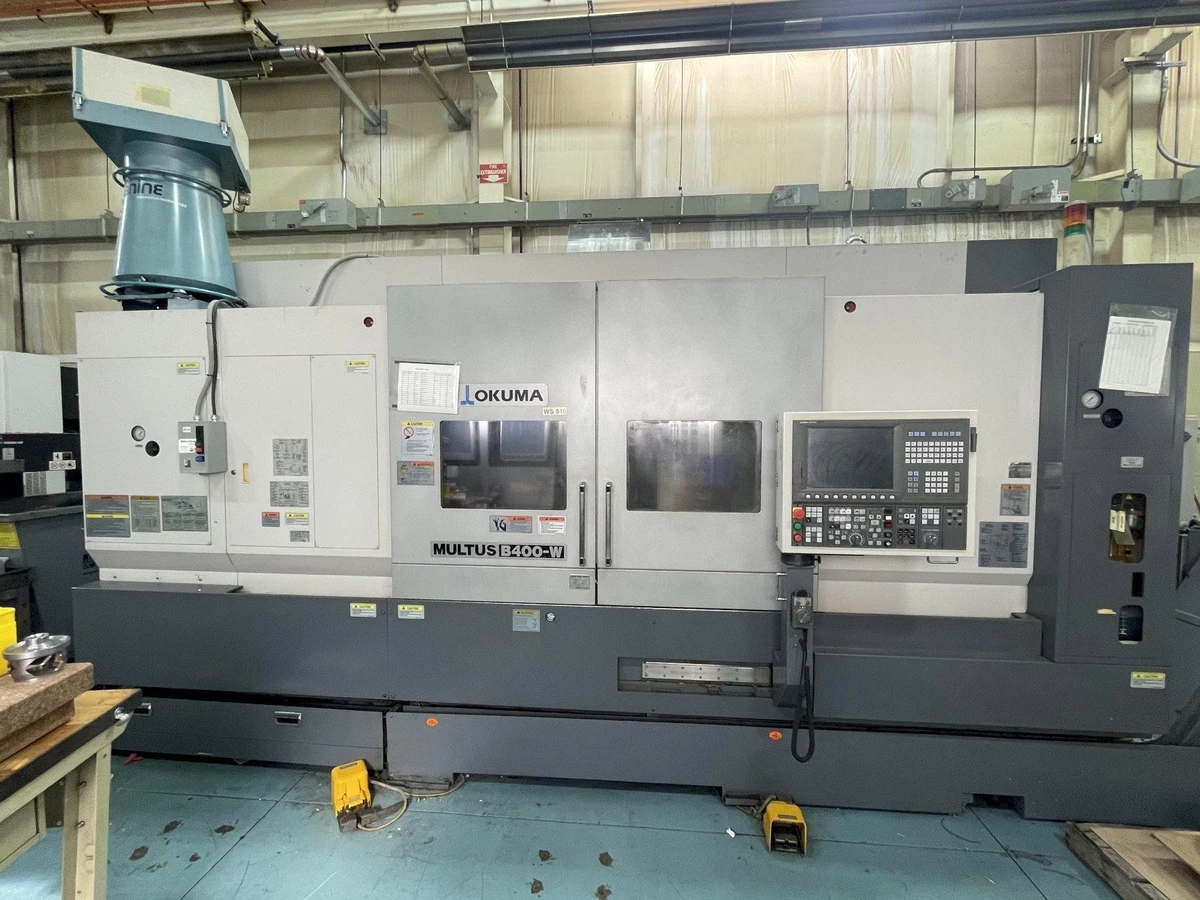

2008 OKUMA MULTUS Big Bore B400W 2 SPINDLE CNC TURNING CENTER BOASTS 60" CENTERS, AN OKUMA OSP CONTROL, B-AXIS AND C-AXIS ON BOTH SPINDLES. IT COMES WITH A 15" & 12" 3 JAW CHUCKS.

Maximum Swing27.95"709.93 mm
Max Turning Diameter27.95"709.93 mm
Main Spindle Bore/Max Bar Capacity4.3/ 4.04.3/ 4.0
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Cutting Length61.02"1,549.9 mm
X-Axis Travel (X1, X2, X3)27.1727.17
Z-Axis Travel (Z1, Z2, Z3)60.8360.83
Y-Axis Travel (Y1, Y2, Y3)9.029.02
C-Axis Indexing (1, 2).001/ .001.001/ .001
Main Spindle Chuck Size15"381 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter4.3"109.22 mm
Main Spindle Maximum Bar Work4"101.6 mm
Main Spindle Speed3,800 RPM3,800 RPM
Main Spindle Horsepower (CONT. /30 MINS)4040
Sub Spindle/2nd Spindle Chuck Size1212
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed5,000 RPM5,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)4040
ATC Magazine Capacity4040
Turret Rotary Tool Spindle Speed 1, 21000010000
Turret Rotary Tool Horse Power 1, 21515
B-Axis Head Indexing0°0.001 deg
B Axis Rotary Tool Spindle Speed10,000 RPM10000 rpm
B-Axis Rotary Tool Spindle Horsepower15 hp
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
Tool Eye Automatic Second SpindleYesYes
High Pressure Coolant System (PSI)300300
(HQR) Standard Chuck Dia. Main Spindle (L)15"381 mm
(HQR) Standard Chuck Dia. Second Spindle (R)15"381 mm
Additional ToolingLarge Amount of ToolingLarge Amount of Tooling
ControlCNC (OSP P200L)CNC (OSP P200L)
Dimensions226" X 104.73" X 119"226" X 104.73" X 119"
Weight31,00 LBS31,00 LBS

OSP P200L CONTROL
40 STATION ATC
LOTS OF TOOLING (APPROXIMATELY $25K)
TOUCH SETTER M
MAIN SPINDLE CHUCK – 15″
OPPOSING SPINDLE CHUCK – 12″
COOLANT SYSTEM
CHIP CONVEYOR
FOOT SWITCHES
