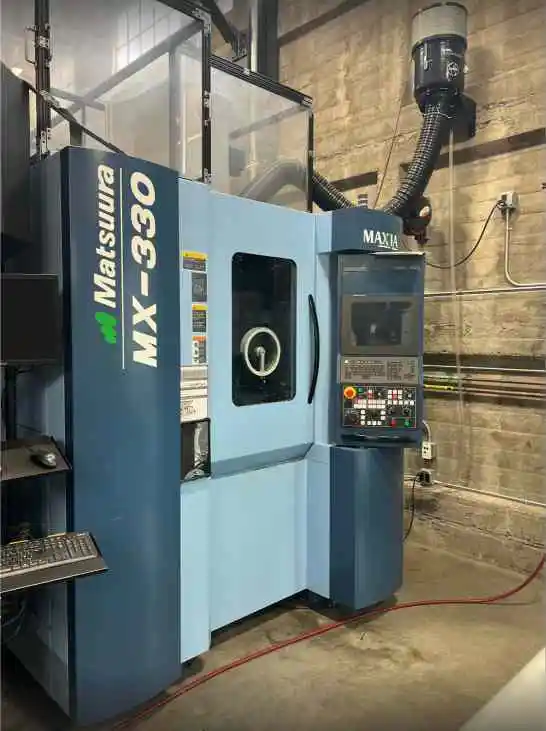

2016 MATSUURA MX-330 5 AXIS
MACHINING CENTERS, VERTICAL
2016 MATSUURA MX-330 5 AXIS VMC WITH MATSUURA G-TECH 31I CONTROLLER, RENISHAW OMP400 TOUCH PROBE, RENISHAW NC4 LASER TOOL SETTER, DUAL-CONTACT SPINDLE – BIG KAISER
COOL-JET HIGH-PRESSURE THROUGH SPINDLE COOLANT PUMP, AND 60+ TOOL HOLDERS INCLUDED.
| X Travel | 17.13" |
| Y Travel | 18.31" |
| Z Travel | 22.05" |
| Spindle Speed | 20000 rpm |
| Tool Capacity (ATC) | 60 |
| Main Spindle Motor | 50 hp |
| Spindle Taper | BT 40 |
| Table Type A-Axis Trunnion Tilt Range | -125 ～ +10 |
| Table Type C-Axis Table Rotation | 1 Degree Index |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 1000 psi |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Multiple Pallets | No |
| Video | No |
| Rapid Traverse Rates | 1574 ipm |
| Control | CNC (Matsuura G-Tech 31i) |
| Weight | 13860 |
MATSUURA G-TECH 31I CONTROLLER
RENISHAW OMP400 TOUCH PROBE
RENISHAW NC4 LASER TOOL SETTER
P.M.T. RW-V2 ROTARY WIPER
DUAL-CONTACT SPINDLE – BIG KAISER
COOL-JET HIGH-PRESSURE THROUGH SPINDLE COOLANT PUMP
CHIP WASHDOWN FEATURE
NO PALLET POOL
NO CHIP CONVEYOR
60+ TOOL HOLDERS INCLUDED
LANG FIXTURE PLATE AVAILABLE
ONLY 1695 CUTTING HOURS
