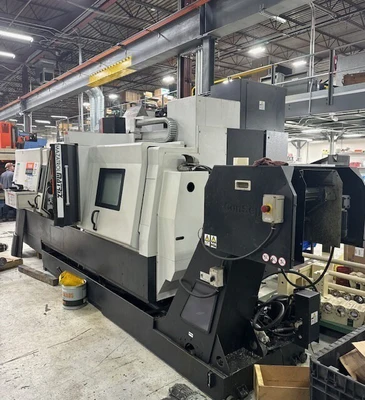

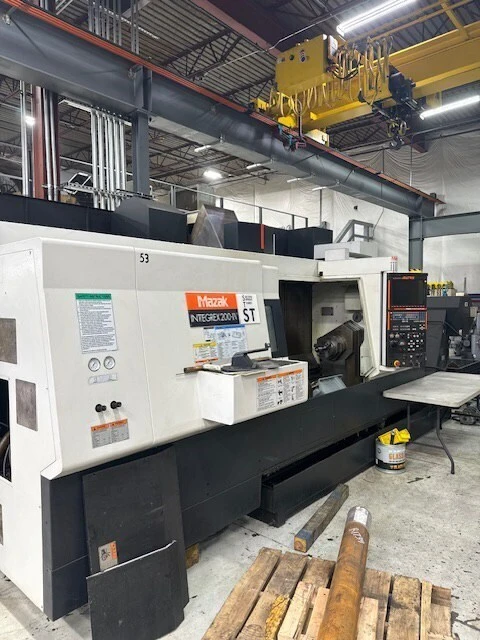

2008 MAZAK INTEGREX 200 IVST,
CNC LATHES MULTI AXIS
For sale: 2008 MAZAK INTEGREX 200 IVST, a used multi-axis CNC lathe. Enhance your machining capabilities!
| Maximum Swing | 26.5" |
| Max Turning Diameter | 26" |
| Main Spindle Bore/Max Bar Capacity | 2.99''/2.5'' |
| Tail Stock/Sub Spindle | Sub Spindle |
| Distance Between Centers | 60" |
| Maximum Cutting Length | 60" |
| X-Axis Travel (X1, X2, X3) | 22.8" |
| Z-Axis Travel (Z1, Z2, Z3) | 60.82" |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 3.15" |
| C-Axis Indexing (1, 2) | .0001 Degree |
| W-Axis Travel Sub Spindle | 60.24 in |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.99" |
| Main Spindle Maximum Bar Work | 2.5" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 HP |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.99'' |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 5,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 30 |
| ATC Magazine Capacity | 40 |
| Number of Turrets | 1 |
| Turret Tool Positions 1, 2 | 9 |
| Turret Type | Capto |
| Turret Rotary Tool Spindle Speed 1, 2 | 12000 |
| Turret Rotary Tool Horse Power 1, 2 | 25 |
| B-Axis Travel | 225 Degrees |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Tool Eye Measurement Lower Turret | Yes |
| Coolant Thru Milling Head | Yes |
| High Pressure Coolant System (PSI) | 1000 |
| Multi Tap Transformer | Yes |
| Tool Eye Measurement B Axis | YES |
| 5-AXIS MACHINING PACKAGE | YES |
| Lower Turret Positions | 9 |
| Y-Axis | Upper Turret |
| Rapid Traverse, X-Axis | 1496 |
| Rapid Traverse, Y-Axis | 1181 |
| Rapid Traverse, Z-Axis | 1496 |
| Control | CNC (MAZAK MATRIX) |
MAZATROL MATRIX CNC CONTROL
****4500 ACTUAL CUTTING HOURS****
TOOLING CAPTO
(2) 8" 3-JAW HYDRAULIC CHUCKS (L/R)
12K ROTARY TOOL SPEED
15" COLOR LCD
1KG FLOOD COOLANT LOWER TURRET
3D COORDINATE CONVERSION
3D HIGH SPEED SOFTWARE
ADDITIONAL M-CODE
APPROXIMATELY 35-40 CAPTO HOLDERS INCLUDED
AUTO PARTS CATCHER 2.5" - 4.7" 5.5LBS.
AUTO PECKING WITH LOAD DETECTION
AUTOMATIC TOOL EYE
C1-C2 SYNCHRONOUS OPERATION
CHUCK AIR BLAST AND TURRET AIR BLAST
COOLANT THRU MILLING HEAD
COOLANT THRU SPINDLE W/ HIGH PRESSURE (MAZAK SUPERFLOW V8A)
CYLINDRICAL G07 & POLAR COORDINATE G12
EIA/ISO 1ST & MILL SPINDLE INDEPENDENT ROTATION
EIA/ISO FUNCTION 5-AXIS SIMULTANEOUS
EIA/ISO INPUT FUNCTION
G00 SLOPE CONSTANT
HIGH SMOOTHING CONTROL
INCH/METRIC
LAN AND USB
MILL TURN MAZATROL
MILLING SPINDLE SYNCHRONOUS TAPPING
OVERLOAD DETECTION
RETHREAD
SHAPE COMPENSATION FOR ROTARY AXES
TOOL RADIUS COMP.
TOOL TIP POINT CONTROL 5-AXIS
X,Y,Z PITCH ERROR COMP INPUT
Y AXIS CONTROL
CHIP CONVEYOR CONCEPT 1500U
POWER TRANSFORMER
RELOCATION DEVICE
