NAKAMURA TOME SC 300 TURNING CENTER
CNC LATHES MULTI AXIS

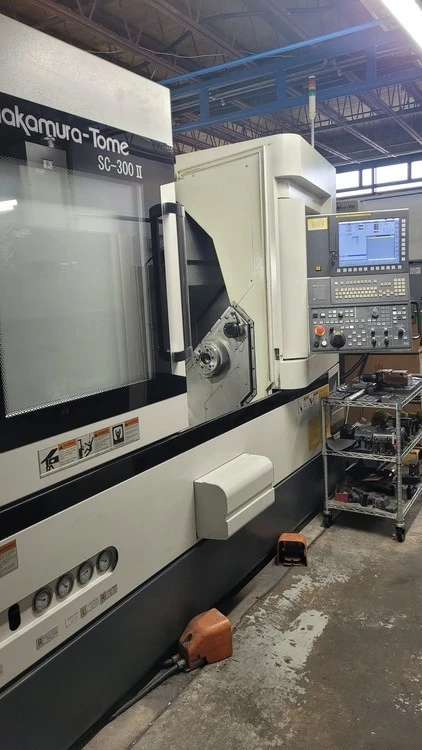

2020 SC-300II HAS A 12" CHUCK ON THE MAIN SPINDLE, 8" CHUCK ON THE SUB SPINDLE, LIVE TOOLING. THE NAKAMURA-TOME SC-300II IS A RUGGED, HIGH-SPEED PRECISION CNC TURNING CENTER OFFERING MAXIMUM VERSATILITY AND PRODUCTIVITY.
THE SC300II OFFERS A HIGH-TORQUE, WIDE RANGE, 30 HORSEPOWER MAIN SPINDLE MOTOR. COMBINED WITH ITS MASSIVE CAST-IRON 45-DEGREE SLANT BED, THIS UNIT ENSURES FULL POWER IS AVAILABLE TO BE USED UNDER THE HEAVIEST CUTTING CONDITIONS WITH NO VIBRATION OR CHATTERING.
| Maximum Swing | 14.17" |
| Max Turning Diameter | 14.17" |
| Main Spindle Bore/Max Bar Capacity | 3.7/ 3.2" |
| Tail Stock/Sub Spindle | SUB-SPINDLE |
| Maximum Cutting Length | 23.7" |
| Distance Between Spindles | 31.8" |
| X-Axis Travel (X1, X2, X3) | 9.15 |
| Z-Axis Travel (Z1, Z2, Z3) | 25 |
| Y-Axis Travel (Y1, Y2, Y3) | ±2.36 |
| C-Axis Indexing (1, 2) | 0.001 |
| Main Spindle Chuck Size | 12" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.7" |
| Main Spindle Maximum Bar Work | 3.2" |
| Main Spindle Speed | 3,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30/25 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 3,600 RPM |
| Number of Turrets | 1 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.5 |
| B-Axis Travel | 19.7 |
| Chip Conveyor | Yes |
| Tool Eye Measurement Upper Turret | Yes |
| Y-Axis | Upper Turret |
| Rapid Traverse, X-Axis | 788 |
| Rapid Traverse, Y-Axis | 236 |
| Rapid Traverse, Z-Axis | 1181 |
| Control | CNC |
12" CHUCK ON THE MAIN SPINDLE
8" CHUCK ON THE SUB-SPINDLE
LIVE TOOLING,
LARGE QUANTITY OF CAPTO TOOLING
MIST COLLECTOR
CHIP CONVEYOR
