MAZAK VARIAXIS i-600 INTELLIGENT/MULTI-TASKING 5 AXIS MACHINING CENTER - 2 PALLET

MAZAK VARIAXIS i-600 INTELLIGENT/MULTI-TASKING 5 AXIS MACHINING CENTER - 2 PALLET

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MAZAK
Model:
VARIAXIS i-600
Condition:
Good
Year:
2013
Stock #:
210478
Status:
For Sale

Description

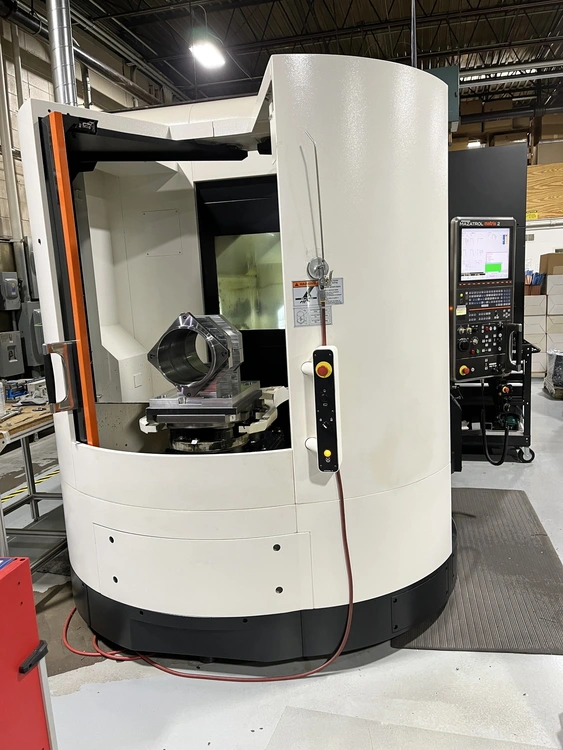

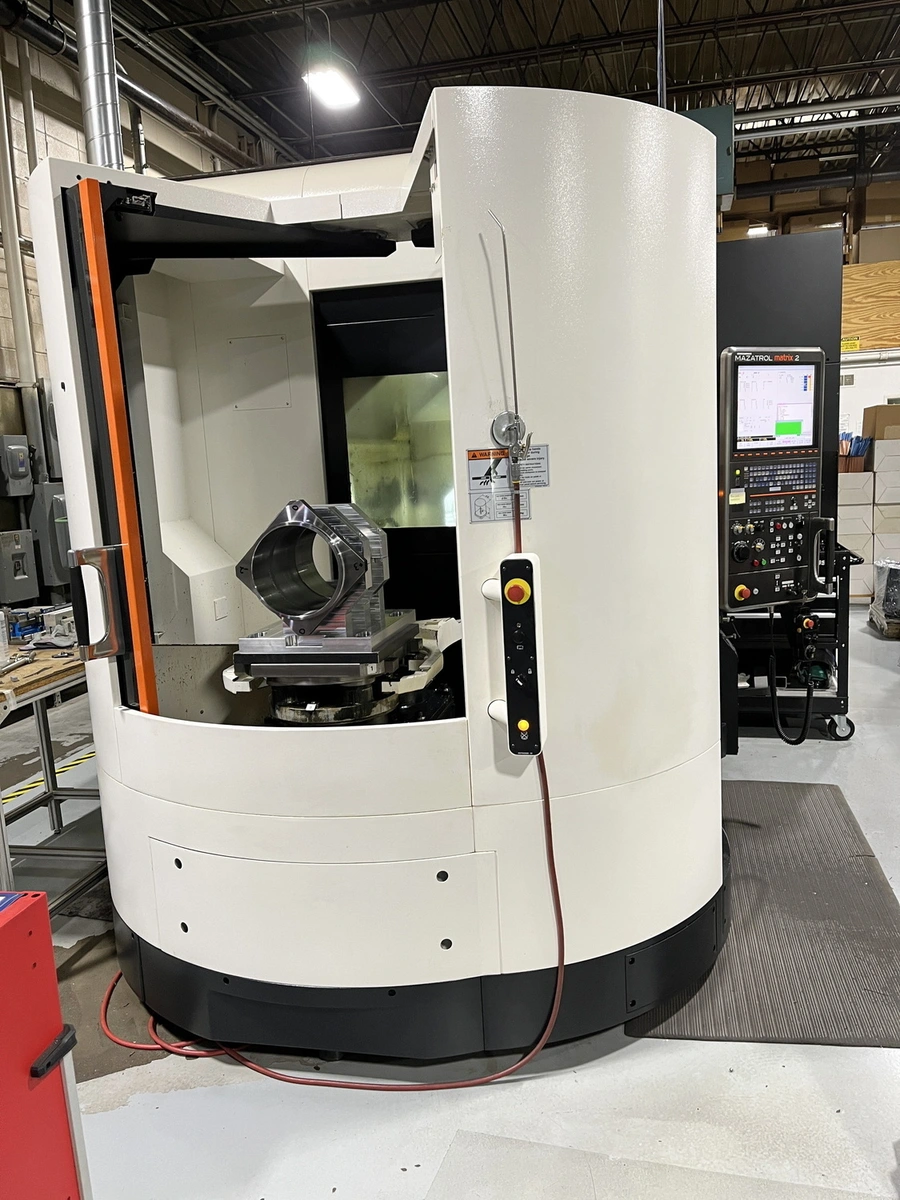

2013 MAZAK VARIAXIS I-600 5-AXIS VERTICAL CNC MACHINING CENTER, TSC, 1000 PSI SUPERFLOW T8 HIGH-PRESSURE COOLANT, DUAL-PALLETS, 120 ATC, RENISHAW RMP600 PROBE, CHIP CONVEYOR.

X Travel20.08"510.03 mm
Y Travel35.83"910.08 mm
Z Travel20.08"510.03 mm
Spindle Speed12,000 RPM12000 rpm
Tool Capacity (ATC)120120
Table Size (W)23.62"599.95 mm
Table Size (L)19.69"500.13 mm
Main Spindle Motor30 hp
Spindle TaperCAT 40CAT 40
Built In or Bolt On TableBuilt InBuilt In
5 Axis Programmable Axis'sFull 5 Axis's ContouringFull 5 Axis's Contouring
Table Type A-Axis Trunnion Tilt Range-120 TO +30 DEGREES-120 TO +30 DEGREES
Table Type C-Axis Table Rotation1 Degree Index1 Degree Index
Coolant Thru High PressureYesYes
Hi Pressure Coolant System1000 psi
Part ProbeYesYes
Tool Probe/Auto Tool Length MeasurementYesYes
ControlCNCCNC
Dimensions156.69 X 86.61 X 125.47156.69 X 86.61 X 125.47
Weight28,660 LBS28,660 LBS

SIMULTANEOUS 5-AXIS
DUAL-PALLETS
THROUGH SPINDLE COOLANT
SUPERFLOW T8 HIGH-PRESSURE COOLANT (1000 PSI)
RENISHAW RMP600 PROBE
PROGRAM MEMORY EXPANSION
CHIP CONVEYOR
120 ATC
ALL AVAILABLE MANUALS
