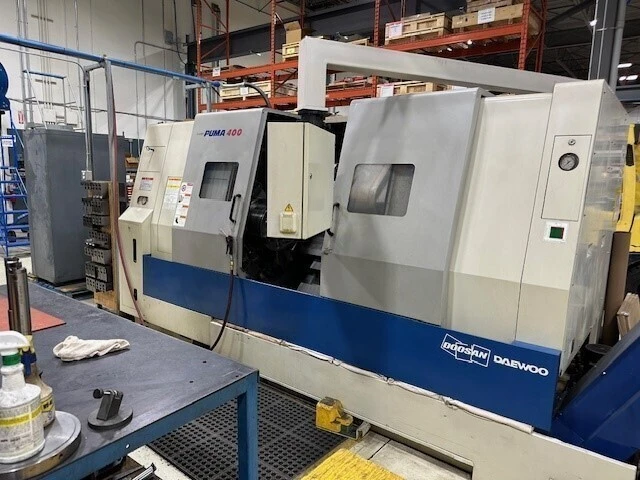

DOOSAN PUMA 400C
CNC LATHES 2 AXIS
| Max. Swing | 30.3" |
| Max Turning Diameter | 44.7" |
| Spindle Bore/Max Bar Capacity | 7"/ 6.5" |
| Z Travel | 43.5" |
| X Travel | 14.3" |
| Machining Length | 44.7" |
| Chuck Size | 15" |
| Chuck Type | Hydraullic |
| Spindle Motor | 50 hp |
| Spindle Speeds (RPM) | 1500 |
| Spindle Bore | 7 in |
| Max. Bar Capacity | 6.5" |
| Turret Tool Positions | 10 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Control | CNC (Fanuc Series 21i-TB) |
| Dimensions | 180” x 96” x 91” |
| Weight | 21,000 lbs |
FANUC SERIES 21I-TB
15” CHUCK
CHIP CONVEYOR
TOOL PRESETTER
TAIL STOCK
