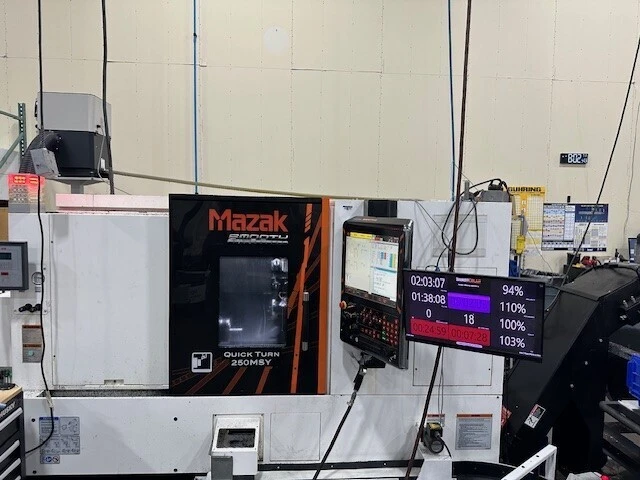

MAZAK QT 250MSY CNC TURNING & MILLING CENTER W/ Y-AXIS, BAR FEED INTERFACE
CNC LATHES MULTI AXIS
THIS 2019 QT 250MSY COMES WITH A SMOOTH G CONTROL, BARFEED INTERFACE, PARTS CATCHER, CHIP CONVEYOR, ATLM. AND 4 LIVE TOOLS
| Maximum Swing | 26.5" |
| Max Turning Diameter | 14.75" |
| Main Spindle Bore/Max Bar Capacity | 3.5"/ 3.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 21.275" |
| X-Axis Travel (X1, X2, X3) | 9" |
| Z-Axis Travel (Z1, Z2, Z3) | 22.75" |
| Y-Axis Travel (Y1, Y2, Y3) | 4" (+/- 2") |
| C-Axis Indexing (1, 2) | .0001, .0001 Degree |
| W-Axis Travel Sub Spindle | 23 in |
| Main Spindle Chuck Type | Collet |
| Main Spindle Bore Diameter | 3.5" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Sub Spindle/2nd Spindle Chuck Type | Collet |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 10 |
| Main & Sub Spindle Synchronization | Yes |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 7.5 |
| Bar Feed | No |
| Bar Feed Interface | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| Number of Available Live Tool Holders | 4 |
| Multi Tap Transformer | Yes |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 826 |
| Rapid Traverse, Z-Axis | 1299 |
| Control | CNC (MAZATROL SMOOTH G) |
| Weight | 12,000 LBS |

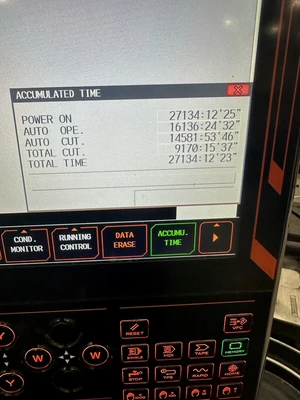

MAZATROL SHOOTHG CNC
WINDOWS 8 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
19·· COLOR LCD (TOUCH SCREEN)
EIA/ ISO PACKAGE KY MILL T/C
SMOOTH STANDARD SOFTWARE FOR LATHE (MILL)
USB I/F (1-PORT)
LAN PORT
SD MEMORY I/F(l-PORT)+ USB I/F (1- PORT)
MILLING-SPINDLE SYNCHRONOUS TAPPING
ROTARY-TOOL SPINDLE SPEED 6000 RPM
C-AXIS 0.0001 DEGREE INCREMENT (1ST SPINDLE)
1ST SPINDLE MOTOR AC 26KW/35HP(30 MIN) 4,000 RPM(343 FT-LBS
1ST SPINDLE SPEED 4000 RPM
1ST SPINDLE BORE DIA.(3. 58") / A2-8 NOSE
AUTO CHUCK JAWS OPEN/CLOSE (1ST & 2ND SPINDLE)
CHUCK OPEN/CLOSE CONFIRMATION (1ST & 2ND SPINDLE)
KITAGAWA B-210A8 W/ S-1877 CYL. (3. 03" CAP.) (1ST SPINDLE (N/A HAS COLLET CHUCKS)
2ND SPINDLE C-AXIS .0001 DEG.
SECOND SPINDLE MOTOR (15HP)
SECOND SPINDLE SPEED 6000 RPH
2ND SPINDLE BORE DIA (2.05" ) / A2-5 NOSE
KITAGAWA B-206A5 W/ RNKP105-15 CLOSED CYLINDER (2ND SPINDLE) (N/A HAS COLLET CHUCKS)
CHUCK AIR BLAST (SECOND SPINDLE)
Y-AXIS CONTROL
ABSOLUTE POSITIONING SYSTEM
(N/A WITH SCALE FEEDBACK)
X, Y, Z PITCH ERROR COMPENSATION INPUT
TOOL EYE (AUTOMATIC)
12 POSITION VDI TURRET
STANDARD TOOLING PACKAGE (VDI)
(25 FT-LBS/6,000 RPM)
ROLLER GUIDES
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
INTELLIGENT SAFETY SHIELD (MANUAL OPERATION)
$3700.00 213 PSI HIGH-POWER COOLANT
$5,100 AUTOMATIC PARTS CATCHER (DIA. 3·· X 4.7'' X 5.5 LBS)
$2,400.00 TURRET AIR BLAST
$2,000.00 DUCT MIST COLLECTOR PREP
$6,800.00 CHIP CONVEYOR SIDE 20'' (500U) (HINGE TYPE)
$780.00 SMOOTH ENGRAVING FUNCTION
$990.00 SIGNAL TOWER
(3 COLOR LIGHTS, SQUARE)
BAR FEEDER INTERFACE KIT
$24,500 LNS QUICK LOAD SERVO 80-S2 BAR FEED (CUSTOMER RETAINS)
BAR-FEEDER LOAD TYPE SHOULD BE REAR LOAD.
$2800.00 240V TO 480V MAIN BREAKER
FIELD CONVERSION KIT
ELECTRICAL CONTROL BOX UL STANDARD(240V)
MULTITAP TRANSFORMER
RELOCATION DEVICE
DIGITAL DOCUMENTATION
MANUAL SET CD-ROM
FOUNDATION KIT(PLATES)
(2) I.D. ROTARY HEADS
(2) O.D. ROTARY HEADS
(4) STATIC O. D. DBL HOLDER
FULL COMPLIMENT OF STATIC TOOL HOLDERS

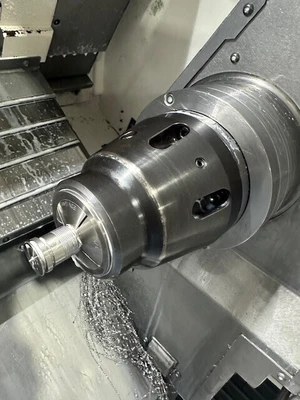

ROYAL CB 80 NX COLLET SYSTEM ON MAIN SPINDLE
ROYAL COLLET SYSTEM ON SUB SPINDLE
MIST COLLECT & ROYAL ROTO RACK ( NOT INCLUDED)
