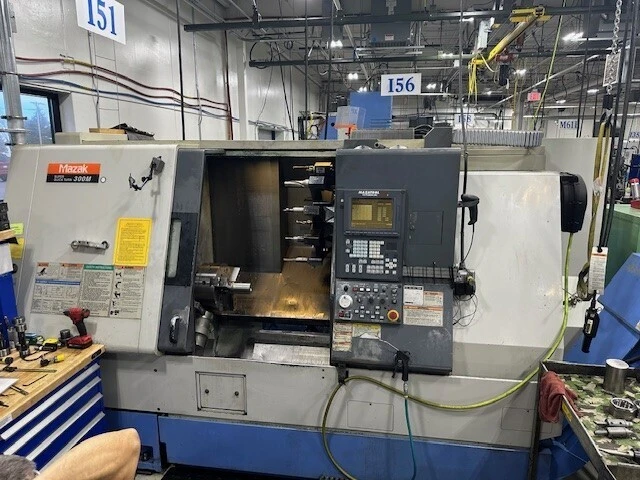

MAZAK SQT 300M
CNC LATHES MULTI AXIS
| Maximum Swing | 29.5" |
| Max Turning Diameter | 16.54" |
| Main Spindle Bore/Max Bar Capacity | 3 |
| Tail Stock/Sub Spindle | NO |
| Distance Between Centers | 25.8" |
| X-Axis Travel (X1, X2, X3) | 10.13 |
| Z-Axis Travel (Z1, Z2, Z3) | 26.38 |
| C-Axis Indexing (1, 2) | 0.001° |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Turret Tool Positions 1, 2 | 12 |
| Control | CNC (MAZATROL FUSION 640) |
| Dimensions | 117" X 73" X 73" |
| Weight | 16500 LB |
MAZATROL FUSION 640
