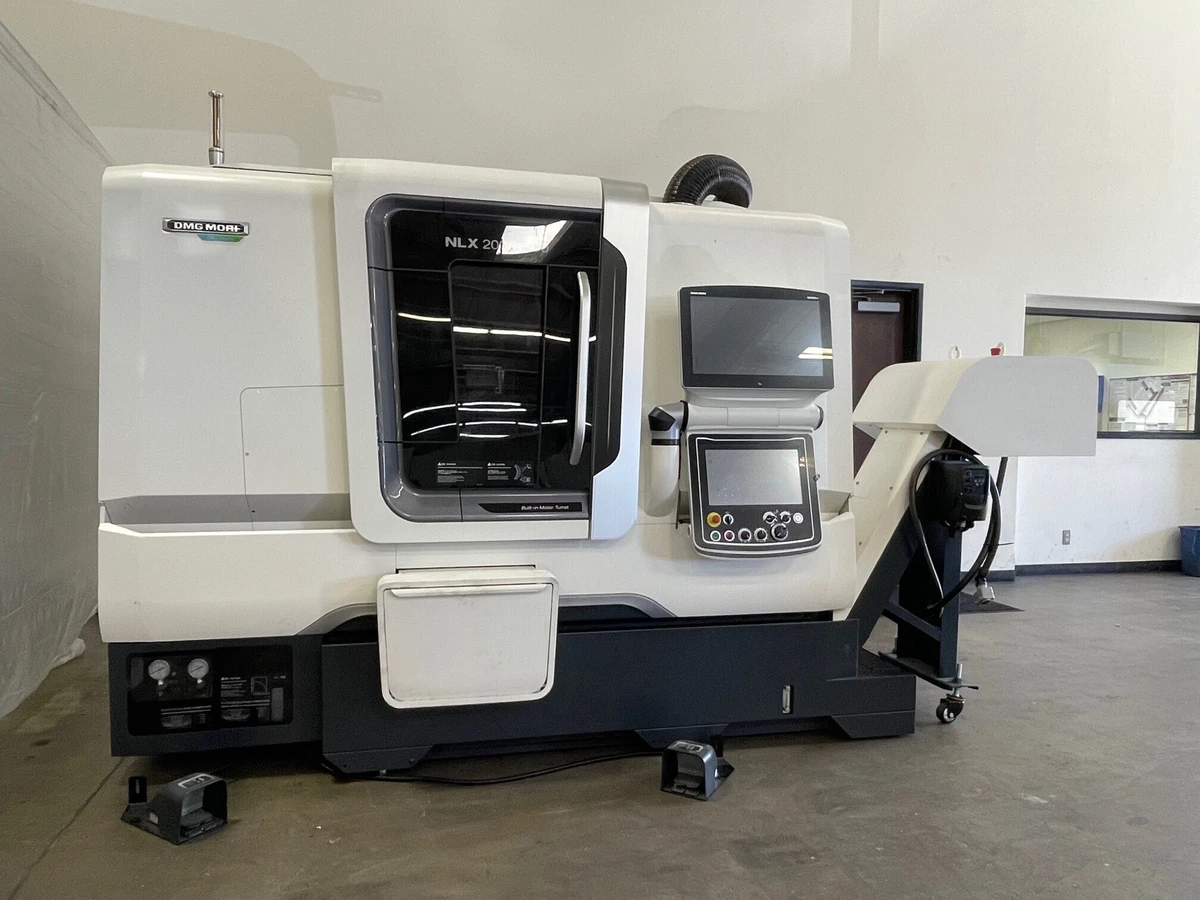

2022 DMG MORI NLX-2000SY/ 500

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DMG MORI
Model:
NLX 2000SY/ 500
Condition:
Excellent
Year:
2022
Stock #:
210489
Status:
For Sale

Description

2022 DMG MORI NLX-2000SY/500 CNC Lathe featuring 36" max swing, 10.9" turn diameter, 30/20 HP spindle, sub spindle, 5,000 RPM, CELOS Ergoline control, tooling worth $25K, 300 cut hours. Enhanced with bar feeder, chip conveyor, and more.

Maximum Swing36"914.4 mm
Max Turning Diameter10.9"276.86 mm
Main Spindle Bore/Max Bar Capacity2.9/ 2.52.9/ 2.5
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Swing Over Cross Slide29.7"754.38 mm
Maximum Cutting Length20"508 mm
X-Axis Travel (X1, X2, X3)10.2"10.2"
Z-Axis Travel (Z1, Z2, Z3)22.8"22.8"
Y-Axis Travel (Y1, Y2, Y3)3.9" (+/-2")3.9" (+/-2")
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.9"73.66 mm
Main Spindle Maximum Bar Work2.5"63.5 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)30/ 2030/ 20
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size22
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)15/1015/10
Turret Tool Positions 1, 21212
Bar FeedYesYes
Parts CatcherYesYes
Chip ConveyorYesYes
Rapid Traverse, X-Axis11811181
Rapid Traverse, Y-Axis393393
Rapid Traverse, Z-Axis11811181
Additional ToolingLarge Amount of ToolingLarge Amount of Tooling
ControlCNC (CELOS M730UM)CNC (CELOS M730UM)

CELOS ERGOLINE TOUCH M730UM CNC CONTROL (MITSUBISHI)
LNS QUICK SIX S2 SERVO BARFEEDER
LNS HIGH-PRESSURE COOLANT UNIT
LNS FOX WS2 700 SMOG HOG
LNS CHIP CONVEYOR
PARTS CATCHER
ASSORTED TOOLING LIVE & STATIC

**APPROX $25,000 WORTH OF TOOLING**
**ONLY 300 CUT HOURS!**
